| Features |
Description |
| Product Type |
2MP Mini Fixed Bullet Network Camera |
| Image Sensor |
1/2.7″ Progressive Scan CMOS |
| Max. Resolution |
1920 × 1080 |
| Min. Illumination |
Color: 0.02 Lux @ F2.0, AGC ON; 0 Lux with IR |
| Lens |
Fixed 4.0 mm @ F2.0 |
| WDR |
DWDR |
| IR Range |
Up to 30 m |
| Video Compression |
Ultra 265 / H.265 / H.264 |
| Frame Rate |
1080P (1920 × 1080) up to 25 fps |
| Network Interface |
1 × RJ45 10/100 Mbps |
| PoE |
IEEE 802.3af |
| Power Supply |
DC 12V ±25% |
| Power Consumption |
Max. 5.5 W |
| Protection |
IP67 |
| Operating Temperature |
-30°C ~ 60°C |
| Dimensions |
167.3 × 62.9 × 62.7 mm |
| Weight |
Approx. 0.27 kg |
| CAMERA & IMAGE |
| Image Sensor |
1/2.7″ 2.0 Megapixel Progressive Scan CMOS |
| Max. Resolution |
1920 × 1080 |
| Min. Illumination |
Color: 0.02 Lux @ F2.0, AGC ON; 0 Lux with IR |
| Shutter |
Auto / Manual, 1 ~ 1/100,000 s |
| Day & Night |
IR-Cut Filter with Auto Switch (ICR) |
| WDR |
DWDR |
| S/N Ratio |
>52 dB |
| Noise Reduction |
2D / 3D DNR |
| Image Enhancement |
BLC / HLC / Digital Defog / Smart IR |
| Adjustment Angle |
Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
| LENS & IR |
| Lens Type |
Fixed Focal Lens |
| Focal Length |
4.0 mm |
| Aperture |
F2.0 |
| Horizontal FOV |
86.5° |
| Vertical FOV |
44.1° |
| Diagonal FOV |
106.4° |
| DORI |
Detect: 66.7 m / Observe: 26.7 m / Recognize: 13.3 m / Identify: 6.7 m |
| IR Range |
Up to 30 m |
| IR Wavelength |
850 nm |
| Smart IR |
Supported |
| VIDEO |
| Main Stream |
1080P (1920 × 1080), Max. 25 fps |
| Sub-Stream |
4CIF (704 × 576), Max. 25 fps |
| Third Stream |
CIF (352 × 288), Max. 25 fps |
| Video Compression |
Ultra 265 / H.265 / H.264 |
| H.264 Profile |
Baseline Profile / Main Profile |
| ROI |
Up to 2 Areas |
| OSD |
Up to 4 OSDs |
| Privacy Mask |
Up to 4 Areas |
| Motion Detection |
Up to 4 Areas |
| NETWORK |
| Network Interface |
1 × RJ45 10/100 Mbps Base-TX Ethernet |
| Network Protocols |
IPv4 / IGMP / ICMP / TCP / UDP / DHCP / RTP / RTSP / RTCP / DNS / DDNS / NTP / UPnP / HTTP |
| ONVIF |
Profile S / Profile T |
| API |
Supported |
| POWER & GENERAL |
| Power Supply |
DC 12V ±25%; PoE IEEE 802.3af |
| Power Consumption |
Max. 5.5 W |
| Protection |
IP67 |
| Operating Temperature |
-30°C ~ 60°C |
| Operating Humidity |
≤95% RH, Non-Condensing |
| Dimensions |
167.3 × 62.9 × 62.7 mm |
| Weight |
Approx. 0.27 kg |

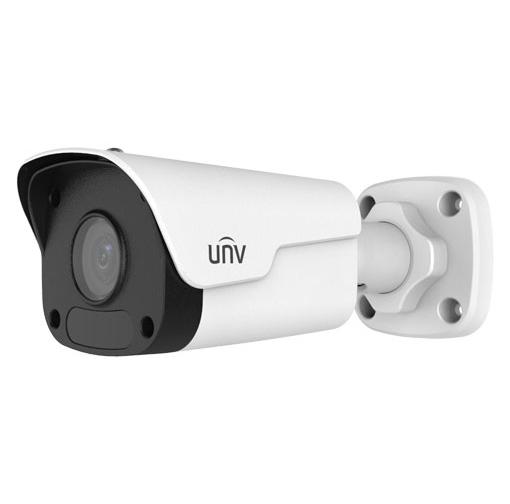

Note: The Uniview IPC2122CR3-PF40-A is a 2MP Mini Fixed Bullet Network Camera featuring a 1/2.7″ Progressive Scan CMOS sensor, 1920 × 1080 resolution, 4 mm fixed lens, DWDR, 2D/3D DNR, up to 30 m Smart IR, Ultra 265/H.265/H.264 compression, PoE, ONVIF support and IP67 protection.
