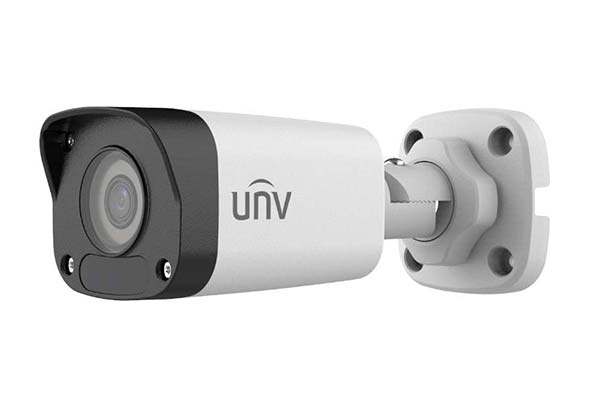

Specifications Uniview IPC2122LB-SF28-40-A
| Features | Specifications |
|---|---|
Camera |
|
| Camera Type | 2MP Mini Fixed Bullet Network Camera |
| Image Sensor | 1/2.8″ 2MP Progressive Scan CMOS |
| Maximum Resolution | 1920 × 1080 |
| Frame Rate | 1080P @ 30/25fps; 720P @ 30/25fps |
| Minimum Illumination | 0.01 Lux (F2.0, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1–1/100000s |
| WDR | DWDR |
| S/N Ratio | >52dB |
Lens |
|
| Lens Type | Fixed |
| Focal Length | 2.8mm / 4.0mm |
| Aperture | F2.0 |
| Field of View | 2.8mm: H 106.7°, V 57.1°, D 115.7°; 4.0mm: H 87.5°, V 46.3°, D 92.4° |
| Adjustment Angle | Pan: 0°–360°, Tilt: 0°–90°, Rotate: 0°–360° |
DORI |
|
| 2.8mm Lens | Detect: 43.4m; Observe: 17.4m; Recognize: 8.7m; Identify: 4.3m |
| 4.0mm Lens | Detect: 62.1m; Observe: 24.8m; Recognize: 12.4m; Identify: 6.2m |
Night Vision and Image Enhancement |
|
| IR Distance | Up to 30m |
| IR Wavelength | 850nm |
| IR Control | Auto / Manual |
| Smart IR | Supported |
| Digital Noise Reduction | 2D/3D DNR |
| Backlight Compensation | BLC / HLC |
| Defog | Digital Defog |
Video |
|
| Video Compression | Ultra 265, H.265, H.264 |
| Main Stream | 1920 × 1080 @ 30/25fps; 1280 × 720 @ 30/25fps |
| Sub Stream | D1, 640 × 360, 2CIF and CIF @ up to 30fps |
| Video Bit Rate | 128Kbps–16Mbps |
| H.264 Profile | Baseline, Main and High Profile |
| ROI | Up to 8 areas |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| Motion Detection | Up to 4 areas |
Image Functions |
|
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked and Auto2 |
| Image Flip | Normal, Vertical, Horizontal and 180° |
| Smart Search | Supported |
Network |
|
| Network Interface | 1 × 10/100M Base-TX Ethernet |
| Network Protocols | IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP and HTTP |
| Compatible Integration | API |
| Client Software | EZStation, EZView and EZLive |
| Web Browser | Chrome, Firefox and Edge |
Power and Environmental |
|
| Power Supply | DC 12V ±25% or PoE IEEE 802.3af |
| Power Consumption | Max. 5.5W |
| Operating Temperature | -30°C to +60°C |
| Operating Humidity | ≤95% RH, non-condensing |
| Storage Temperature | -30°C to +60°C |
| Surge Protection | 4KV |
| Ingress Protection | IP67 |
Physical |
|
| Material | Metal + Plastic |
| Dimensions | 161 × 63 × 62mm |
| Net Weight | 0.27kg |
| Installation | 3-Axis adjustment |
Note: The Uniview IPC2122LB-SF28-40-A is a 2MP Mini Fixed Bullet Network Camera with a 1/2.8-inch progressive scan CMOS sensor and 2.8mm or 4.0mm fixed lens options. It supports 1920 × 1080 resolution at up to 30fps, Ultra 265/H.265/H.264 compression, Smart IR up to 30m, 2D/3D DNR and DWDR. The camera supports PoE IEEE 802.3af, 10/100M Ethernet, 3-axis adjustment, IP67 protection and 4KV surge protection.
