| Features |
Description |
| Product Type |

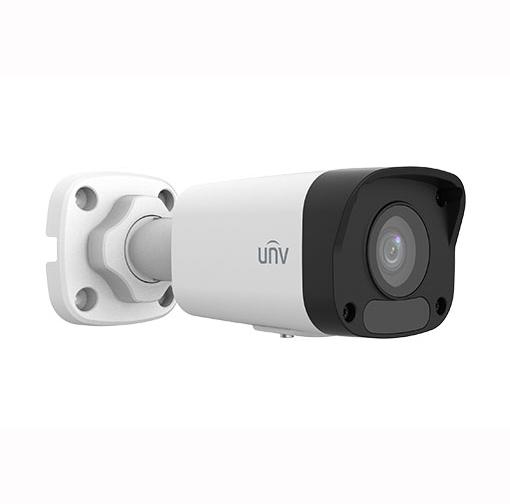

2MP HD IR Fixed Mini Bullet Network Camera |
| Image Sensor |
1/2.9″ Progressive Scan CMOS |
| Max. Resolution |
1920 × 1080 |
| Lens |
Fixed 2.8mm / 4.0mm, F2.0 |
| IR Distance |
Up to 30m |
| Video Compression |
Ultra 265 / H.265 / H.264 |
| Storage |
MicroSD up to 128GB |
| Power |
DC 12V ±25% / PoE IEEE 802.3af |
| Protection |
IP67 |
| CAMERA |
| Image Sensor |
1/2.9″, 2.0 Megapixel Progressive Scan CMOS |
| Max. Resolution |
1920 × 1080 |
| Minimum Illumination |
Color: 0.01 Lux @ F2.0, AGC ON; 0 Lux with IR |
| Day/Night |
IR-Cut Filter with Auto Switch (ICR) |
| Shutter |
Auto / Manual, 1s to 1/100000s |
| WDR |
DWDR |
| S/N Ratio |
>55dB |
| LENS |
| Lens Type |
Fixed |
| Focal Length |
2.8mm / 4.0mm |
| Aperture |
F2.0 |
| Field of View |
2.8mm: H 101.1° / V 55.0° / D 111.0°
4.0mm: H 83.7° / V 44.6° / D 89.1° |
| DORI |
2.8mm: Detect 45m / Observe 18m / Recognize 9m / Identify 4.5m
4.0mm: Detect 64.3m / Observe 25.7m / Recognize 12.9m / Identify 6.4m |
| Adjustment Angle |
Pan 0°–360° / Tilt 0°–90° / Rotate 0°–360° |
| IR ILLUMINATION |
| Illuminator |
IR |
| IR Distance |
Up to 30m |
| Wavelength |
850nm |
| IR Control |
Auto / Manual |
| Smart IR |
Supported |
| VIDEO |
| Main Stream |
1920 × 1080 @ 30fps; 1280 × 720 @ 30fps |
| Sub Stream |
D1 / 640 × 360 / 2CIF / CIF, Max. 30fps |
| Video Compression |
Ultra 265 / H.265 / H.264 |
| H.264 Profile |
Baseline / Main / High Profile |
| Video Bit Rate |
128Kbps–6144Kbps |
| U-Code |
Supported |
| OSD |
Up to 4 OSDs |
| Privacy Mask |
Up to 4 areas |
| ROI |
Up to 8 areas |
| Video Stream |
Dual Streams |
| IMAGE |
| White Balance |
Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Noise Reduction |
2D / 3D DNR |
| Smart IR |
Supported |
| HLC |
Supported |
| BLC |
Supported |
| Defog |
Digital Defog |
| Flip |
Normal / Vertical / Horizontal / 180° |
| Dewarping |
N/A |
| EVENTS |
| Motion Detection |
Supported |
| General Functions |
Watermark / IP Address Filtering / Access Policy / ARP Protection |
| Authentication |
RTSP / User / HTTP Authentication |
| AUDIO |
| Built-in Microphone |
N/A |
| Built-in Speaker |
N/A |
| Audio I/O |
N/A |
| NETWORK & STORAGE |
| Network Interface |
1 × RJ45 10/100M Base-TX Ethernet |
| Protocols |
IPv4 / IGMP / ICMP / ARP / TCP / UDP / DHCP / RTP / RTSP / RTCP / RTMP / DNS / DDNS / NTP / FTP / UPnP / HTTP / HTTPS / SMTP / QoS / SSL/TLS |
| ONVIF |
Profile S / Profile T / Profile G |
| API / SDK |
Supported |
| Users |
Up to 32 users |
| Storage |
MicroSD up to 128GB |
| Client Software |
EZStation / EZView / EZLive |
| Security |
Password Protection / Strong Password / HTTPS Encryption / Operation Logs / RTSP Authentication / ONVIF Authentication |
| INTERFACE & POWER |
| Network Port |
1 × RJ45 10/100M Base-TX |
| Power Supply |
DC 12V ±25% / PoE IEEE 802.3af |
| Power Interface |
Ø5.5mm Coaxial Power Plug |
| Power Consumption |
Max. 5W |
| PHYSICAL & ENVIRONMENT |
| Material |
Graphene + Plastic |
| Dimensions |
161 × 62 × 63mm |
| Net Weight |
0.21kg |
| Operating Temperature |
-30°C to +60°C |
| Operating Humidity |
≤95% RH, non-condensing |
| Storage Temperature |
-30°C to +60°C |
| Surge Protection |
4KV |
| Ingress Protection |
IP67 |
Note: The IPC2122LB-SF28(40)K-A is available with either a 2.8mm or 4.0mm fixed lens. The 2.8mm version provides a wider viewing angle, while the 4.0mm version provides a narrower view and longer DORI distance.
Important: This SF model does not include a built-in microphone, speaker, Wi-Fi or alarm I/O. It supports DC 12V and IEEE 802.3af PoE power.
