| Features |
Description |
| Product Type |
4MP HD Mini IR Fixed Bullet Network Camera |
| Series |
EasyStar |
| Image Sensor |
1/3″ 4.0 Megapixel Progressive Scan CMOS |
| Maximum Resolution |
2688 × 1520 |
| Lens |
4.0mm @ F1.6 Fixed Lens |
| IR Range |
Up to 50m |
| WDR |
120dB |
| Protection |
IP67 |
| Camera & Lens |
| Minimum Illumination |
0.003 Lux @ F1.6, AGC ON; 0 Lux with IR |
| Day/Night |
IR-Cut Filter with Auto Switch (ICR) |
| Shutter |
Auto/Manual, 1/100000s to 1s |
| Field of View |
H 83.7° / V 44.9° / D 89.2° |
| DORI Distance |
Detect 90m / Observe 36m / Recognize 18m / Identify 9m |
| Adjustment Angle |
Pan 0°–360° / Tilt 0°–90° / Rotate 0°–360° |
| S/N Ratio |
>56dB |
| Illuminator & Image |
| IR Range |
Up to 50m |
| IR Wavelength |
850nm |
| IR Control |
Auto / Manual |
| Noise Reduction |
2D/3D DNR |
| Backlight Compensation |
BLC / HLC |
| Defog |
Digital Defog |
| White Balance |
Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Smart IR |
Supported |
| Video |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Main Stream |
4MP (2688 × 1520) up to 25fps; 4MP (2560 × 1440) up to 25fps; 3MP (2304 × 1296) up to 30fps; 1080P up to 30fps |
| Sub Stream |
720P / D1 / 640 × 360 / 2CIF / CIF up to 30fps |
| Video Bit Rate |
128Kbps–16Mbps |
| Video Stream |
Dual Streams |
| U-Code |
Supported |
| Corridor Mode |
9:16 Supported |
| OSD |
Up to 4 OSDs |
| Privacy Mask |
Up to 4 Areas |
| ROI |
Up to 8 Areas |
| Motion Detection |
Up to 4 Areas |
| Audio |
| Audio |
Built-in Microphone |
| Audio Compression |
G.711 |
| Sampling Rate |
8kHz |
| Noise Suppression |
Supported |
| Storage & Network |
| Edge Storage |
MicroSD, up to 256GB |
| Network Storage |
ANR / NAS (NFS) |
| Network Interface |
1 × 10/100M Base-TX Ethernet |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, 802.1X, SNMP |
| ONVIF |
Profile S / G / T |
| Integration |
API / EZStation / EZView / EZLive |
| Power & Physical |
| Power Supply |
DC 12V ±25% / PoE IEEE 802.3af |
| Power Consumption |
Max. 6W |
| Dimensions |
190 × 73 × 71mm |
| Net Weight |
Approx. 0.45kg |
| Material |
Metal |
| Mounting |
Wall / Ceiling / Pole Mount |
| Environment & Protection |
| Operating Temperature |
-30°C to +60°C |
| Operating Humidity |
≤95% RH, Non-condensing |
| Surge Protection |
4KV |
| Ingress Protection |
IP67 |
| Reset Button |
Not Available |

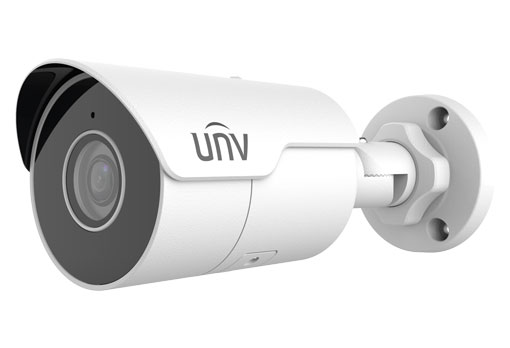

Note: The UNV IPC2124LE-ADF40KM-G is a 4MP EasyStar fixed bullet network camera with a 4.0mm lens, 50m Smart IR, 120dB WDR, built-in microphone and MicroSD storage.
Important: The 4.0mm lens provides a narrower 83.7° horizontal field of view with a longer DORI range than the 2.8mm version. The camera supports DC 12V or PoE 802.3af and is rated IP67 for outdoor installation.
