| Features |
Specifications |
| Camera Type |

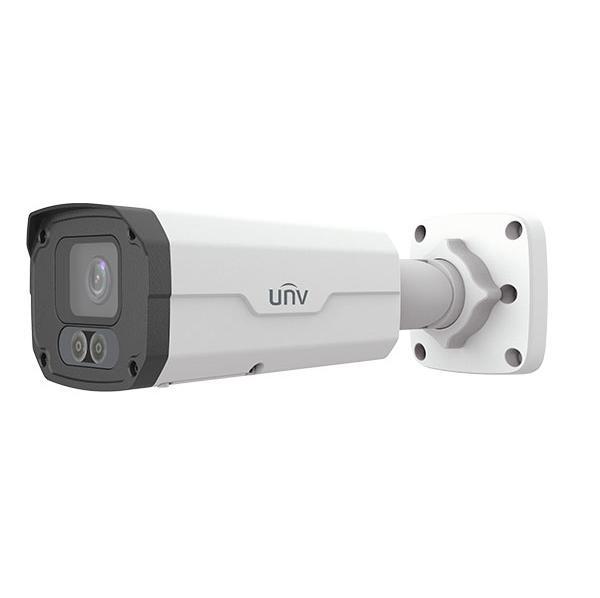

4MP ColorHunter Fixed Warm Light Bullet Network Camera |
| Image Sensor |
1/1.8″ Progressive Scan CMOS |
| Maximum Resolution |
2688 × 1520 |
| Frame Rate |
Up to 30fps |
| Minimum Illumination |
Color: 0.0005 Lux @ F1.0, AGC ON |
| Shutter |
Auto / Manual, 1 ~ 1/100000s |
| WDR |
120dB True WDR |
| S/N Ratio |
>56dB |
| ColorHunter |
24-Hour Full-Color Imaging |
| Corridor Mode |
9:16 Supported |
Lens
| Item |
Specifications |
| Lens Type |
Fixed |
| DF40 Focal Length |
4.0mm @ F1.0 |
| DF60 Focal Length |
6.0mm @ F1.0 |
| DF40 Horizontal FOV |
97.7° |
| DF60 Horizontal FOV |
62.4° |
| DF40 Vertical FOV |
53.7° |
| DF60 Vertical FOV |
35.4° |
| Adjustment Angle |
Pan 0° ~ 360°, Tilt 0° ~ 90°, Rotate 0° ~ 360° |
DORI
| Lens |
Distance |
| 4.0mm |
Detect 63m / Observe 25.2m / Recognize 12.6m / Identify 6.3m |
| 6.0mm |
Detect 90m / Observe 36m / Recognize 18m / Identify 9m |
Warm Light
| Item |
Specifications |
| Supplement Light |
Warm Light |
| Light Distance |
Up to 30m |
| Light Control |
Auto / Manual |
| Smart Illumination |
Supported |
Video & Image
| Item |
Specifications |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| Main Stream |
2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080 @ up to 30fps |
| Sub Stream |
1920 × 1080, 1280 × 720, D1, 640 × 360, 2CIF, CIF |
| Third Stream |
D1, 640 × 360, 2CIF, CIF |
| Video Bit Rate |
128Kbps ~ 16Mbps |
| Video Stream |
Triple Stream |
| U-Code |
Supported |
| White Balance |
Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Noise Reduction |
2D/3D DNR |
| BLC / HLC |
Supported |
| Digital Defog |
Supported |
| ROI |
Up to 8 Areas |
| Privacy Mask |
Up to 4 Areas |
| OSD |
Up to 8 OSDs |
Intelligent Functions
| Function |
Specifications |
| Smart Intrusion Prevention |
Cross Line, Intrusion, Enter Area, Leave Area Detection |
| Target Classification |
Human, Motor Vehicle and Non-Motor Vehicle |
| False Alarm Filtering |
Supported |
| People Counting |
People Flow Counting and Crowd Density Monitoring |
| Motion Detection |
Supported |
| Ultra Motion Detection |
Supported |
| Tampering Detection |
Supported |
| Audio Detection |
Supported |
Audio
| Item |
Specifications |
| Audio Compression |
G.711 |
| Audio Bit Rate |
64Kbps |
| Sampling Rate |
8kHz |
| Audio Input |
1 |
| Audio Output |
1 |
| Two-Way Audio |
Supported |
Storage
| Item |
Specifications |
| MicroSD |
Up to 512GB |
| Network Storage |
ANR, NAS (NFS) |
Network & Interface
| Item |
Specifications |
| Network Interface |
1 × RJ45 10/100M Base-TX Ethernet |
| PoE |
IEEE 802.3af |
| Network Protocols |
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1X, SNMP, QoS, RTMP, SSL/TLS, SSH |
| ONVIF |
Profile S, Profile G, Profile T |
| API / SDK |
Supported |
| Users |
Up to 32 Users |
| Client Software |
EZStation, EZView, EZLive |
Alarm & I/O
| Item |
Specifications |
| Alarm Input |
1 |
| Alarm Output |
1 |
| Audio Input |
1 |
| Audio Output |
1 |
Power & General
| Item |
Specifications |
| Power Supply |
DC 12V ±25%, PoE IEEE 802.3af |
| Power Consumption |
Max. 8W |
| Protection |
IP67, IK10 |
| Operating Temperature |
-30°C ~ 60°C |
| Operating Humidity |
≤95% RH, Non-Condensing |
| Housing |
Metal |
Note: The IPC2224SE-DF40(60)K-WL-I0 is available in two fixed-lens variants: DF40 with a 4.0mm lens and DF60 with a 6.0mm lens.
Important: The current Uniview product page specifies MicroSD support up to 512GB. Earlier regional datasheets listed 256GB, so storage capacity may vary by hardware or firmware revision.
