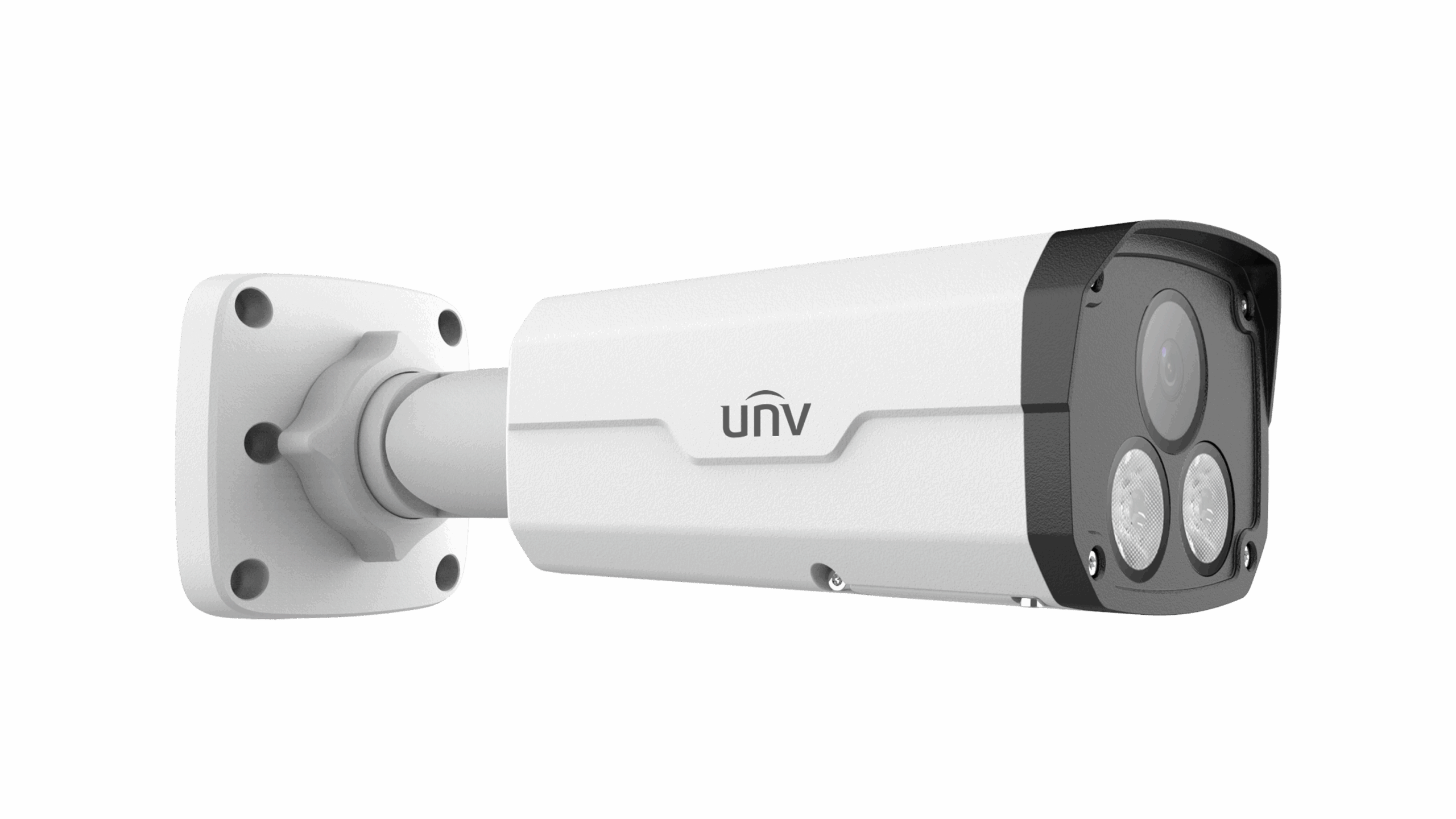

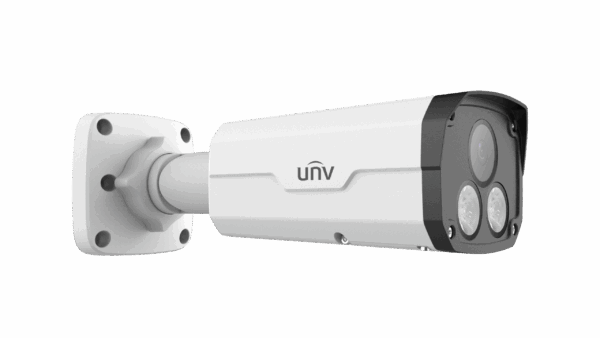

Specifications Uniview IPC2225SE-DF40K-WL-I0
| Features | Description |
|---|---|
| Device Type | 5MP ColorHunter Fixed Warm Light Bullet Network Camera |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Maximum Resolution | 2880 × 1620 |
| Lens | 4.0mm Fixed Lens |
| WDR | 120dB True WDR |
| Warm Light Range | Up to 30m |
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Smart Features | Smart Intrusion Prevention, People Flow Counting and Crowd Density Detection |
| ColorHunter | Supported for 24-hour full-color imaging |
| Audio | 1 Audio Input / 1 Audio Output, Two-way Audio |
| Storage | MicroSD up to 512GB |
| Protection | IP67 / IK10 |
| CAMERA | |
|---|---|
| Sensor | 1/2.7″ 5.0 Megapixel Progressive Scan CMOS |
| Minimum Illumination | Color: 0.001 Lux (F1.0, AGC ON) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| WDR | 120dB |
| S/N | >56dB |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
| LENS | |
|---|---|
| Focal Length | 4.0mm @ F1.0 |
| Iris Type | Fixed |
| Iris | F1.0 |
| Horizontal FOV | 80.2° |
| Vertical FOV | 43.0° |
| Diagonal FOV | 94.7° |
| DORI | |
|---|---|
| Lens | 4.0mm |
| Detect | 90.0m |
| Observe | 36.0m |
| Recognize | 18.0m |
| Identify | 9.0m |
| VIDEO | |
|---|---|
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Main Stream | 5MP (2880 × 1620), Max. 30fps; 4MP (2560 × 1440), Max. 30fps; 3MP (2304 × 1296), Max. 30fps; 1080P (1920 × 1080), Max. 30fps; 720P (1280 × 720), Max. 30fps |
| Sub Stream | 720P (1280 × 720), D1 (720 × 576), 640 × 360, Max. 30fps |
| Third Stream | D1 (720 × 576), 640 × 360, 2CIF (704 × 288), CIF (352 × 288), Max. 30fps |
| H.264 Profile | Baseline / Main / High Profile |
| Video Bit Rate | 128Kbps ~ 16Mbps |
| Video Stream | Triple Streams |
| U-code | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 Areas |
| ROI | Supported |
| Corridor Mode | 9:16 Supported |
| IMAGE | |
|---|---|
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart Illumination | Supported |
| HLC | Supported |
| BLC | Supported |
| Defog | Digital Defog |
| Flip | Normal / Vertical / Horizontal / 180° / 90° Clockwise / 90° Anti-clockwise |
| Dewarping | N/A |
| SMART FEATURES | |
|---|---|
| Smart Intrusion Prevention | Cross Line, Intrusion, Enter Area and Leave Area Detection |
| Target Classification | Human, Motor Vehicle and Non-motor Vehicle |
| False Alarm Filtering | Supported |
| People Counting | People Flow Counting and Crowd Density Detection |
| Motion Detection | Supported |
| Ultra Motion Detection | Supported |
| Tampering Alarm | Supported |
| Audio Detection | Supported |
| ILLUMINATOR | |
|---|---|
| Supplemental Light | Warm Light |
| Illumination Distance | Up to 30m |
| LED Number | 2 |
| Light Control | Auto / Manual |
| Smart Illumination | Supported |
| STORAGE | |
|---|---|
| Edge Storage | MicroSD up to 512GB |
| Network Storage | ANR, NAS (NFS) |
| NETWORK | |
|---|---|
| Network Interface | 1 × RJ45 10/100M Base-TX Ethernet |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Compatible Integration | ONVIF Profile S / G / T / M, API, SDK |
| User/Host | Up to 32 Users, Administrator and Common User Levels |
| Security | Password Protection, HTTPS Encryption, TLS 1.2, RTSP/HTTP/ONVIF Authentication |
| Client | EZStation, APP |
| Web Browser | Plug-in and Plug-in Free Live View Supported |
| AUDIO & ALARM | |
|---|---|
| Audio Input | 1 Input, 35kΩ, 2V [p-p] |
| Audio Output | 1 Output, 600Ω, 2V [p-p] |
| Audio Compression | G.711U / G.711A / AAC-LC |
| Audio Bit Rate | G.711U/G.711A: 64Kbps, AAC-LC: 128Kbps |
| Two-way Audio | Supported |
| Sampling Rate | 8kHz / 16kHz / 48kHz |
| Alarm I/O | 1 Input / 1 Output |
| Built-in Microphone | N/A |
| Built-in Speaker | N/A |
| INTERFACE | |
|---|---|
| Network | 1 × RJ45 10/100M Base-TX Ethernet |
| Audio I/O | 1 Input / 1 Output |
| Alarm I/O | 1 Input / 1 Output |
| Serial Port | N/A |
| Wi-Fi | N/A |
| Video Output | N/A |
| POWER & PROTECTION | |
|---|---|
| Power Supply | DC 12V ±25%, PoE IEEE 802.3af |
| Power Consumption | Max. 9.0W |
| Power Interface | Ø5.5mm Coaxial Power Plug |
| Surge Protection | 4KV |
| Protection | IP67 / IK10 |
| PHYSICAL & ENVIRONMENT | |
|---|---|
| Dimensions | 246 × 86 × 85mm (L × W × H) |
| Weight | 0.92kg |
| Material | Metal |
| Operating Temperature | -30°C ~ 60°C |
| Storage Temperature | -30°C ~ 60°C |
| Humidity | ≤95% RH (Non-condensing) |
| Reset Button | N/A |
Note: The Uniview IPC2225SE-DF40K-WL-I0 is a 5MP ColorHunter fixed warm light bullet network camera featuring a 1/2.7″ CMOS sensor and 4.0mm F1.0 fixed lens. It provides 120dB True WDR, 24-hour full-color imaging, warm light illumination up to 30m, intelligent perimeter protection, people counting and MicroSD storage up to 512GB.
Important: The IPC2225SE-DF40K-WL-I0 supports 5MP resolution up to 30fps, ColorHunter technology, 120dB True WDR, Smart Intrusion Prevention, people flow counting and crowd density detection, warm light up to 30m, MicroSD up to 512GB, PoE 802.3af and IP67 / IK10 protection.
