| Features |
Description |
| Device Type |
5MP ColorHunter Fixed Warm Light Bullet Network Camera |
| Image Sensor |
1/2.7″ Progressive Scan CMOS |
| Maximum Resolution |
2880 × 1620 |
| Lens |
6.0mm Fixed Lens |
| WDR |
120dB True WDR |
| Warm Light Range |
Up to 30m |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Smart Features |
Smart Intrusion Prevention, Cross Line, Intrusion, Enter Area and Leave Area Detection |
| People Flow Counting |
Supported |
| Crowd Density Monitoring |
Supported |
| Audio |
1 × Audio Input / 1 × Audio Output |
| Alarm |
1 × Alarm Input / 1 × Alarm Output |
| Storage |
MicroSD up to 256GB |
| Protection |
IP67 |
| Vandal Resistance |
IK10 |
| CAMERA |
| Image Sensor |
1/2.7″, 5.0 Megapixel Progressive Scan CMOS |
| Minimum Illumination |
Color: 0.001 Lux (F1.0, AGC ON) |
| Shutter |
Auto / Manual, 1 ~ 1/100000s |
| WDR |
120dB True WDR |
| S/N |
>56dB |
| Adjustment Angle |
Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
| LENS |
| Lens Type |
Fixed |
| Focal Length |
6.0mm |
| Iris |
F1.0 |
| Horizontal Field of View |
53.4° |
| Vertical Field of View |
29.2° |
| Diagonal Field of View |
61.6° |
| DORI |
| Detect |
135m |
| Observe |
54m |
| Recognize |
27m |
| Identify |
13.5m |
| VIDEO |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Main Stream |
5MP (2880 × 1620), Max 30fps; 4MP (2560 × 1440), Max 30fps; 3MP (2304 × 1296), Max 30fps; 2MP (1920 × 1080), Max 30fps; 720P (1280 × 720), Max 30fps |
| Sub Stream |
720P (1280 × 720), Max 30fps; D1 (720 × 576), Max 30fps; 640 × 360, Max 30fps |
| Third Stream |
D1 (720 × 576), Max 30fps; 640 × 360, Max 30fps; 2CIF (704 × 288), Max 30fps; CIF (352 × 288), Max 30fps |
| Video Bit Rate |
128Kbps ~ 16Mbps |
| Video Stream |
Triple Streams |
| U-Code |
Supported |
| ROI |
Up to 8 Areas |
| 9:16 Corridor Mode |
Supported |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
Up to 4 Areas |
| IMAGE |
| White Balance |
Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Digital Noise Reduction |
2D / 3D DNR |
| Smart Illumination |
Supported |
| HLC |
Supported |
| BLC |
Supported |
| Defog |
Digital Defog |
| Image Flip |
Normal / Vertical / Horizontal / 180° / 90° Clockwise / 90° Anti-clockwise |
| Dewarping |
Not Supported |
| SMART FEATURES |
| Smart Intrusion Prevention |
Cross Line, Intrusion, Enter Area and Leave Area Detection |
| Target Classification |
Human, Motor Vehicle and Non-Motor Vehicle |
| False Alarm Filtering |
Supported |
| People Flow Counting |
Supported |
| Crowd Density Monitoring |
Supported |
| Motion Detection |
Supported |
| Audio Detection |
Supported |
| Tampering Alarm |
Supported |
| ILLUMINATOR |
| Light Type |
Warm Light |
| Illumination Distance |
Up to 30m |
| LED Number |
2 |
| Light Control |
Auto / Manual |
| AUDIO |
| Audio Input |
1 Channel |
| Audio Output |
1 Channel |
| Audio Compression |
G.711 |
| Audio Bit Rate |
64Kbps |
| Two-Way Audio |
Supported |
| Audio Suppression |
Supported |
| Sampling Rate |
8KHz |
| STORAGE |
| Edge Storage |
MicroSD, Up to 256GB |
| Network Storage |
ANR / NAS (NFS) |
| NETWORK |
| Network Interface |
1 × RJ45 10/100Mbps Base-TX Ethernet |
| ONVIF |
Profile S / Profile G / Profile T |
| Compatible Integration |
ONVIF / API / SDK |
| Network Protocols |
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS, SSH |
| Client |
EZStation / EZView / EZLive / Web Browser |
| INTERFACE |
| Audio I/O |
1 × Audio Input / 1 × Audio Output |
| Alarm I/O |
1 × Alarm Input / 1 × Alarm Output |
| RS485 |
Not Supported |
| Built-in Microphone |
Not Supported |
| Built-in Speaker |
Not Supported |
| Wi-Fi |
Not Supported |
| Video Output |
Not Supported |
| POWER & PROTECTION |
| Power Supply |
DC 12V ±25% / PoE (IEEE 802.3af) |
| Maximum Power Consumption |
9.0W |
| Surge Protection |
4KV |
| Protection |
IP67 |
| Vandal Resistance |
IK10 |
| PHYSICAL & ENVIRONMENT |
| Dimensions |
246 × 86 × 85mm |
| Weight |
0.92kg |
| Material |
Metal |
| Operating Temperature |
-30°C to 60°C |
| Storage Temperature |
-30°C to 60°C |
| Operating Humidity |
≤95% RH, Non-Condensing |
| Storage Humidity |
≤95% RH, Non-Condensing |

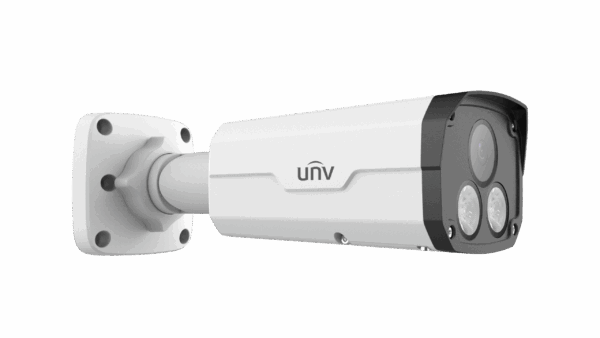

Note: The Uniview IPC2225SE-DF60K-WL-I0 is a 5MP ColorHunter Fixed Warm Light Bullet Network Camera featuring a 1/2.7″ progressive scan CMOS sensor, 6.0mm fixed F1.0 lens, 2880 × 1620 resolution, 120dB True WDR and ColorHunter technology for 24-hour full-color imaging. It supports Ultra 265/H.265/H.264/MJPEG compression, Smart Intrusion Prevention, people flow counting, crowd density monitoring, two-way audio, MicroSD storage up to 256GB, IP67 protection, IK10 vandal resistance and PoE (IEEE 802.3af).
Important: The IPC2225SE-DF60K-WL-I0 is a Fixed Bullet Camera, not a PTZ camera. Its 6.0mm fixed F1.0 lens provides a 53.4° horizontal field of view with DORI distances of 135m Detect / 54m Observe / 27m Recognize / 13.5m Identify. Warm Light illumination reaches up to 30m. The camera supports DC 12V or PoE (IEEE 802.3af), with maximum power consumption of 9W.
