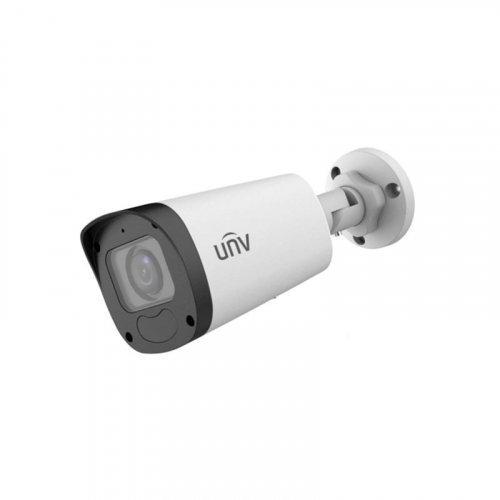

IPC2322LB-ADZK-G
Uniview รุ่น IPC2322LB-ADZK-G
2MP HD IR VF Bullet Network Camera
- ภาพคุณภาพสูงพร้อมเซนเซอร์ CMOS 1/2.7″ 2MP
- 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
- อัลตร้า 265, H.265, H.264, MJPEG
- เทคโนโลยี WDR จริง 120dB ช่วยให้ได้ภาพที่ชัดเจนในฉากที่มีแสงจ้า
- รองรับโหมดทางเดิน 9:16
- ไมค์ในตัว
- IR อัจฉริยะ ระยะ IR สูงสุด 50 ม. (164 ฟุต)
- รองรับการ์ด Micro SD 128 G
- การป้องกัน IP67
- รองรับแหล่งจ่ายไฟ PoE
- 3-Axis
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Uniview IPC2322LB-ADZK-G
• 2MP HD IR VF Bullet Network Camera. High quality image with 2MP, 1/2.7″CMOS sensor
• 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
• Ultra 265, H.265, H.264, MJPEG
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 50m (164ft) IR distance
• Supports 128 G Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis
| IPC2322LB-ADZK-G | |||||
| Camera IPC2322LB-ADZK-G | |||||
| Sensor | 1/2.7″, 2.0 megapixel, progressive scan, CMOS | ||||
| Minimum Illumination | Colour: 0.005Lux (F1.6, AGC ON) 0Lux with IR on |
||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| Adjustment angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° | ||||
| S/N | >52dB | ||||
| WDR | 120dB | ||||
| Lens | |||||
| Lens Type | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens | ||||
| Lens Mount | Φ14 | ||||
| Angle of View (H) | 108.05°~ 32.59° | ||||
| Angle of View (V) | 56.81°~ 18.36° | ||||
| Angle of View (O) | 111.91°~36.53° | ||||
| DORI | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8 | 42 | 16.8 | 8.4 | 4.2 | |
| 12 | 180 | 72 | 36 | 18 | |
| Illuminator IPC2322LB-ADZK-G | |||||
| IR Range | Up to 50m (164ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main profile, High profile, MJPEG | ||||
| Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||
| Video Bit Rate | 128 Kbps~6144 kbps | ||||
| U-code | Supported | ||||
| 9:16 Corridor Mode | Supported | ||||
| OSD | Up to 4 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Image IPC2322LB-ADZK-G | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser | ||||
| Digital Noise Reduction | 2D/3D DNR | ||||
| Smart IR | Supported | ||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||
| Dewarping | N/A | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| Defog | Digital Defog | ||||
| Events | |||||
| Basic Detection | Cross line, intrusion(based on human body detection) | ||||
| motion detection, tampering alarm, audio detection | |||||
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication | ||||
| Audio IPC2322LB-ADZK-G | |||||
| Audio Compression | G.711 | ||||
| Suppression | Supported | ||||
| Sampling Rate | 8KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 128GB | ||||
| Network Storage | ANR,NAS(NFS) | ||||
| Network IPC2322LB-ADZK-G | |||||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, SNMP | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API , SDK | ||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
| Client | EZStation EZView EZLive |
||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ | |||||
| Interface | |||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
| Built-in Mic | Supported | ||||
| Certification | |||||
| EMC | FCC: FCC Part 15 | ||||
| Safety | CE: EN 60950-1 UL: UL60950-1 IEC 60950-1 |
||||
| General IPC2322LB-ADZK-G | |||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||
| Power consumption: Max 8.5W | |||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||
| Dimensions (L × W × H) | 206 × 74 × 74mm (8.1” × 2.9” × 2.9”) | ||||
| Weight | 0.54kg (1.19lb) | ||||
| Material | metal | ||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Surge Protection | 6KV | ||||
| Reset Button | Supported | ||||
| Ingress Protection | Ingression protection: IP67 | ||||
