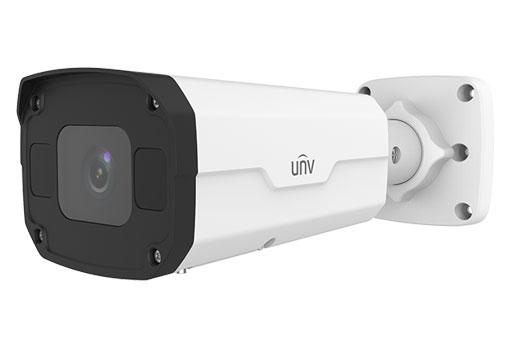

Specifications Uniview IPC2324SB-DZK-I0
| Features | Specifications |
|---|---|
Camera |
|
| Camera Type | 4MP LightHunter VF IR Bullet Network Camera |
| Image Sensor | 1/3″ 4MP Progressive Scan CMOS |
| Maximum Resolution | 2688 × 1520 |
| Frame Rate | Up to 30fps at 2688 × 1520 |
| Minimum Illumination | Color: 0.002 Lux @ F1.2, AGC ON; 0 Lux with IR |
| Day/Night | IR-Cut Filter with Auto Switch (ICR) |
| Shutter | Auto/Manual, 1s to 1/100000s |
| WDR | 120dB True WDR |
| S/N Ratio | >56dB |
Lens |
|
| Lens Type | Motorized Varifocal Lens with Auto Focus |
| Focal Length | 2.7 to 13.5mm |
| Iris | Fixed, F1.2 |
| Horizontal Field of View | 98.26° to 31.35° |
| Vertical Field of View | 54.76° to 18.55° |
| Diagonal Field of View | 127.74° to 36.99° |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
DORI |
|
| Detect | 60.8m to 303.8m |
| Observe | 24.3m to 121.5m |
| Recognize | 12.2m to 60.8m |
| Identify | 6.1m to 30.4m |
Night Vision and Image Enhancement |
|
| IR Distance | Up to 50m |
| IR Wavelength | 850nm |
| IR Control | Auto/Manual |
| Image Enhancement | 2D/3D DNR, BLC, HLC, Digital Defog |
| Smart IR | Supported |
| LightHunter | Enhanced image quality in low-light environments |
| Corridor Mode | 9:16 Corridor Mode Supported |
Video |
|
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Main Stream | 2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080 @ 30/25fps |
| Video Bit Rate | 128Kbps to 16Mbps |
| Video Streams | Triple Streams |
| Smart Codec | Ultra 265 |
Intelligent Functions |
|
| Smart Intrusion Prevention | Cross Line, Intrusion, Enter Area and Leave Area Detection |
| Target Classification | Human, Motor Vehicle and Non-Motor Vehicle Classification |
| People Flow Counting | Intelligent People Flow Counting |
| Crowd Density Monitoring | Supported |
| False Alarm Filtering | Supported for Smart Intrusion Prevention |
Audio and Alarm |
|
| Audio I/O | 1 Input / 1 Output |
| Alarm I/O | 1 Input / 1 Output |
Storage |
|
| MicroSD Card | Supports MicroSD up to 512GB |
| Network Storage | ANR and NAS (NFS) |
Network |
|
| Network Interface | 1 × RJ45 10/100M Base-TX Ethernet |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1X, SNMP and QoS |
| Compatibility | ONVIF Profile S/G/T, API |
| Client Software | EZStation, EZView and EZLive |
Power and Environmental |
|
| Power Supply | DC 12V ±25% or PoE IEEE 802.3af |
| Power Consumption | Maximum 8.5W |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | ≤95% RH, non-condensing |
| Surge Protection | 6KV |
Protection and Physical |
|
| Protection Rating | IP67 |
| Vandal Resistance | IK10 |
| Material | Metal |
| Dimensions | 245.4 × 85.4 × 86.4mm |
| Weight | 0.92kg |
Note: The Uniview IPC2324SB-DZK-I0 is a 4MP LightHunter motorized varifocal IR bullet network camera with a 2.7–13.5mm lens, 120dB True WDR, up to 50m IR illumination, Smart Intrusion Prevention, people flow counting, crowd density monitoring, 1-channel audio/alarm input and output, MicroSD storage, IP67 protection and IK10 vandal resistance. It supports Ultra 265 compression and PoE IEEE 802.3af.
