| Features |
Description |
| Device Type |
4MP ColorHunter OmniView Fixed Warm Light Bullet Network Camera |
| Image Sensor |
1/2.9″ Progressive Scan CMOS |
| Maximum Resolution |
3840 × 1080 |
| Lens |
2 × 4.0mm Fixed Lens |
| Horizontal Field of View |
160.0° ± 10° |
| WDR |
DWDR |
| Warm Light Range |
Up to 30m |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Smart Features |
Human Body Detection, Motion Detection, Tampering Alarm and Audio Detection |
| ColorHunter |
Supported for 24-hour full-color imaging |
| Audio |
Built-in Dual Microphones and Speaker, Two-way Audio |
| Storage |
MicroSD up to 512GB |
| Protection |
IP67 |
| CAMERA |
| Sensor |
1/2.9″ 4.0 Megapixel Progressive Scan CMOS |
| Minimum Illumination |
Color: 0.0005 Lux (F1.0, AGC ON) |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| WDR |
DWDR |
| S/N |
>52dB |
| Adjustment Angle |
Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
| LENS |
| Lens |
2 × 4.0mm @ F1.0 |
| Iris |
Fixed |
| Horizontal FOV |
160.0° ± 10° |
| Vertical FOV |
43.2° |
| Diagonal FOV |
180.1° ± 10° |
| DORI |
| Lens |
4.0mm |
| Detect |
64.3m |
| Observe |
25.7m |
| Recognize |
12.9m |
| Identify |
6.4m |
| VIDEO |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Main Stream |
4MP (3840 × 1080), Max. 25fps with Human Body Detection off |
| Main Stream with Human Detection |
4MP (3840 × 1080), Max. 20fps |
| Sub Stream |
1920 × 540, Max. 25fps |
| H.264 Profile |
Baseline / Main / High Profile |
| Video Bit Rate |
128 Kbps ~ 16 Mbps |
| U-code |
Supported |
| Video Stream |
Double Streams |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
Up to 4 Areas |
| ROI |
Up to 8 Areas |
| IMAGE |
| White Balance |
Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Digital Noise Reduction |
2D/3D DNR |
| Smart Illumination |
Supported |
| HLC |
Supported |
| BLC |
Supported |
| Defog |
Digital Defog |
| Flip |
N/A |
| Dewarping |
N/A |
| SMART FEATURES |
| Human Body Detection |
Supported |
| Motion Detection |
Supported |
| Tampering Alarm |
Supported |
| Audio Detection |
Supported |
| Smart Intrusion Prevention |
N/A |
| ILLUMINATOR |
| Supplemental Light |
Warm Light |
| Illumination Distance |
Up to 30m |
| LED Number |
2 |
| Light Control |
Auto / Manual |
| STORAGE |
| Edge Storage |
MicroSD up to 512GB |
| Network Storage |
ANR, NAS (NFS) |
| NETWORK |
| Network Interface |
1 × RJ45 10/100M Base-TX Ethernet |
| Protocols |
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Compatible Integration |
API, SDK, ONVIF Profile S / G / T / M |
| User/Host |
Up to 32 Users |
| Security |
Password Protection, Strong Password, HTTPS Encryption, TLS 1.2, RTSP/HTTP/ONVIF Authentication |
| Client |
EZStation, APP |
| Wi-Fi |
N/A |
| AUDIO & ALARM |
| Audio Input |
1 Input, 35kΩ, 2V [p-p] |
| Audio Output |
1 Output, 600Ω, 2V [p-p] |
| Audio Compression |
G.711U / G.711A / AAC-LC |
| Audio Bit Rate |
G.711U/G.711A: 64 Kbps; AAC-LC: 128 Kbps |
| Two-way Audio |
Supported |
| Built-in Microphone |
Built-in Dual Microphones |
| Built-in Speaker |
Supported |
| Alarm I/O |
1 Input / 1 Output |
| POWER & PROTECTION |
| Power Supply |
DC 12V ±25%, PoE IEEE 802.3af |
| Power Consumption |
Max. 6.5W |
| Power Interface |
Ø5.5mm Coaxial Power Plug |
| Surge Protection |
4KV |
| Protection |
IP67 |
| PHYSICAL & ENVIRONMENT |
| Dimensions |
273 × 130 × 76mm (L × W × H) |
| Weight |
0.95kg |
| Material |
Metal |
| Operating Temperature |
-30°C ~ 60°C |
| Storage Temperature |
-30°C ~ 60°C |
| Humidity |
≤95% RH (Non-condensing) |
| Reset Button |
Supported |

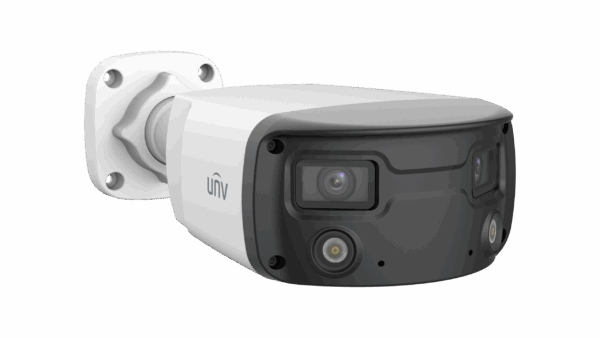

Note: The Uniview IPC2K24SE-ADF40KMC-WL-I0 is a 4MP ColorHunter OmniView fixed bullet network camera featuring dual 4.0mm lenses and a 160° ultra-wide horizontal viewing angle. It supports full-color imaging, human body detection, warm light illumination up to 30m, two-way audio, alarm I/O, MicroSD storage and PoE.
Important: The IPC2K24SE-ADF40KMC-WL-I0 is designed for wide-area surveillance with a 160° horizontal field of view. It supports 4MP resolution up to 25fps, ColorHunter technology, human body detection, warm light up to 30m, built-in dual microphones and speaker, MicroSD storage up to 512GB, PoE 802.3af and IP67 protection.
