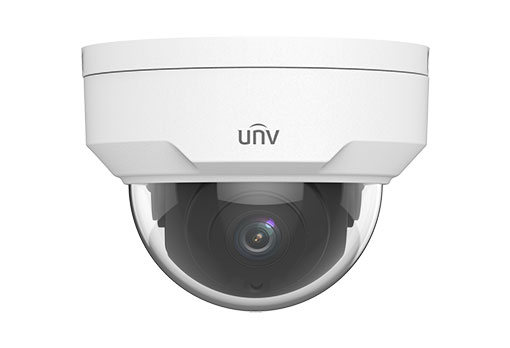

Specifications UNIVIEW IPC322CR3-VSPF28-A
| Features | Description |
|---|---|
| Product Type | 2MP Vandal-resistant Network IR Fixed Dome Camera |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Lens | 2.8mm Fixed-focal, F2.0 |
| IR Distance | Up to 30m, Smart IR |
| Video Compression | Ultra 265 / H.265 / H.264 |
| Network Interface | 1 × 10/100M Base-TX Ethernet |
| Power Supply | DC 12V ±25% / PoE IEEE 802.3af |
| Protection | IP67 / IK10 |
| Camera & Lens | |
|---|---|
| Image Sensor | 1/2.7″ Progressive Scan, 2.0 Megapixel CMOS |
| Resolution | 1920 × 1080 |
| Lens Type | Fixed-focal |
| Focal Length | 2.8mm |
| Max. Aperture | F2.0 |
| Field of View | H: 112.7° / V: 60.1° / D: 146.5° |
| Adjustment Angle | Pan: 0°–360°; Tilt: 0°–75° |
| DORI | Detect 46.7m / Observe 18.7m / Recognize 9.3m / Identify 4.7m |
| Shutter | Auto / Manual, 1–1/100000s |
| Min. Illumination | 0.02 Lux @ F2.0, AGC ON; 0 Lux with IR |
| Day/Night | IR-cut Filter with Auto Switch (ICR) |
| S/N Ratio | >52dB |
| IR & Image | |
|---|---|
| IR Range | Up to 30m |
| IR Technology | Smart IR |
| WDR | DWDR |
| Noise Reduction | 2D / 3D DNR |
| Backlight Compensation | BLC / HLC |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 2 areas |
| Motion Detection | Up to 4 areas |
| Video | |
|---|---|
| Video Compression | Ultra 265 / H.265 / H.264 |
| H.264 Profile | Baseline Profile / Main Profile |
| Main Stream | 1920 × 1080, Max. 25fps |
| Sub Stream | 704 × 576 (4CIF), Max. 25fps |
| Third Stream | 352 × 288 (CIF), Max. 25fps |
| Video Streams | Triple Stream |
| Network | |
|---|---|
| Network Interface | 1 × 10/100M Base-TX Ethernet |
| Protocols | IPv4 / IGMP / ICMP / TCP / UDP / DHCP / RTP / RTSP / RTCP / DNS / DDNS / NTP / UPnP / HTTP |
| ONVIF | Profile S / Profile T |
| API | Supported |
| Power & Physical | |
|---|---|
| Power Supply | DC 12V ±25% / PoE IEEE 802.3af |
| Power Consumption | Max. 4.0W |
| Dimensions | Φ109 × 81mm |
| Weight | Approx. 0.37kg |
| Installation | Ceiling / Wall Mount |
| Environment & Protection | |
|---|---|
| Operating Temperature | -30°C to +60°C |
| Operating Humidity | ≤95% RH, Non-condensing |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Housing | Vandal-resistant Housing |
Note: The UNV IPC322CR3-VSPF28-A is a 2MP vandal-resistant fixed dome network camera with a 2.8mm wide-angle lens, 30m Smart IR, Ultra 265 compression, and PoE support.
Important: The IPC322CR3-VSPF28-A is the 2.8mm lens version, providing a wider 112.7° horizontal field of view than the 4.0mm version.
