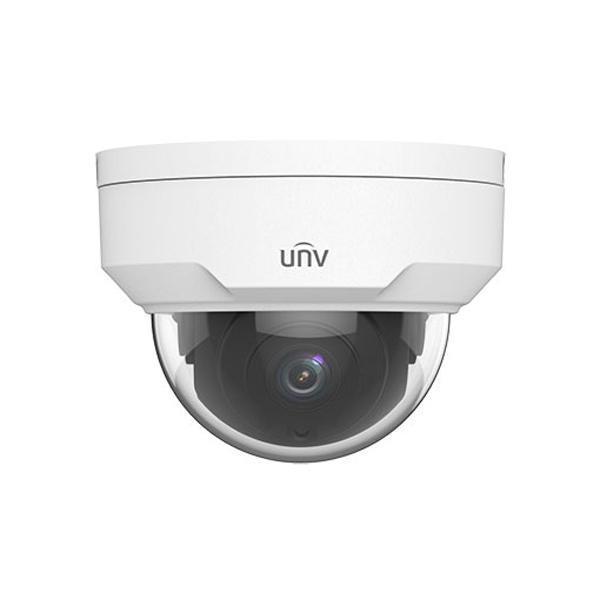

IPC322CR3-VSPF40-A

Uniview รุ่น IPC322CR3-VSPF40-A

2MP Vandal-resistant Network IR Fixed Dome

  • ความละเอียด 2 ล้านพิกเซล
  • บีบอัดวีดีโอ Ultra 265, H.265, H.264
  • ระยะมองกลางคืน 30 เมตร
  • Day/night functionality
  • เลนส์ 4 mm, Fix lens
  • 2D/3D DNR (Digital Noise Reduction)
  • 12V DC, IP 67, IK10
หมวดหมู่: , , , , ป้ายกำกับ: ,
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

UNV IPC322CR3-VSPF28-A

  • Optics

    * Day/night functionality

    * Smart IR, up to 30m (98ft) IR distance

    * 2D/3D DNR (Digital Noise Reduction)

    Compression

    * Ultra 265, H.265, H.264

    * ROI (Region of Interest)

    Network

    * ONVIF Conformance

    Structure

    * Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)

    * Wide voltage range of ±25%

    * IK10 vandal resistant

    * IP67

    * 2-Axis

SPECIFICATION

IPC322CR3-VSPF28-A IPC322CR3-VSPF40-A
Camera
Sensor 1/2.7″, progressive scan, 2.0 megapixel, CMOS
Lens 2.8mm@F2.0 4.0mm@F2.0
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 46.7 18.7 9.3 4.7
4.0 66.7 26.7 13.3 6.7
Angle of View (H) 112.7° 86.5°
Angle of View (V) 60.1° 44.1°
Angle of View (O) 146.5° 106.4°
Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 75°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.02Lux ( F2.0, AGC ON)
0Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52dB
IR Range Up to 30m (98ft) IR range
WDR DWDR
Video
Video Compression Ultra 265, H.265, H.264
H.264 code profile Baseline profile, Main Profile
Frame Rate Main Stream: 1080P (1920*1080), Max 25fps;
Sub Stream: 4CIF (704*576), Max 25fps;
Third Stream: CIF (352*288), Max 25fps
HLC Supported
BLC Supported
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 2 areas
Motion Detection Up to 4 areas
Network
Protocols IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP
Compatible Integration ONVIF (Profile S, Profile T), API
Interface
Network 10/100M Base-TX Ethernet
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 4.0W
Dimensions (Ø x H) Φ109 x 81mm (Ø4.3” x 3.2”)
Weight 0.37kg (0.81lb)
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection IP67
Vandal Resistant IK10

ดาวน์โหลด

PDF Download
