| Features |
Description |
| Device Type |
2MP Vandal-resistant Network IR Fixed Dome Camera |
| Image Sensor |
1/2.8″ Progressive Scan CMOS |
| Maximum Resolution |
1920 × 1080 |
| Lens |
4.0mm Fixed Lens |
| WDR |
DWDR |
| IR Range |
Up to 30m |
| Video Compression |
Ultra 265 / H.265 / H.264 |
| Smart Features |
Motion Detection, Tampering Alarm, ROI and Corridor Mode |
| Day/Night |
IR-cut Filter with Auto Switch (ICR) |
| Storage |
N/A |
| Protection |
IP67 / IK10 |
| CAMERA |
| Sensor |
1/2.8″ Progressive Scan 2.0 Megapixel CMOS |
| Minimum Illumination |
Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR |
| Day/Night |
IR-cut Filter with Auto Switch (ICR) |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| WDR |
DWDR |
| S/N |
>52dB |
| Adjustment Angle |
Pan: 3° ~ 360°, Tilt: 0° ~ 75° |
| LENS |
| Focal Length |
4.0mm @ F2.0 |
| Iris Type |
Fixed |
| Iris |
F2.0 |
| Horizontal FOV |
87.5° |
| Vertical FOV |
46.3° |
| Diagonal FOV |
93° |
| DORI |
| Lens |
4.0mm |
| Detect |
62.1m |
| Observe |
24.8m |
| Recognize |
12.4m |
| Identify |
6.2m |
| VIDEO |
| Video Compression |
Ultra 265 / H.265 / H.264 |
| Main Stream |
1080P (1920 × 1080), Max. 30fps; 720P (1280 × 720), Max. 30fps |
| Sub Stream |
D1 (720 × 576), 640 × 360, 2CIF (704 × 288), CIF (352 × 288), Max. 30fps |
| H.264 Profile |
Baseline / Main / High Profile |
| Video Bit Rate |
128Kbps ~ 16Mbps |
| Video Stream |
Dual Streams |
| OSD |
Up to 4 OSDs |
| Privacy Mask |
Up to 4 Areas |
| ROI |
Up to 8 Areas |
| Motion Detection |
Up to 4 Areas |
| IMAGE |
| White Balance |
Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Digital Noise Reduction |
2D/3D DNR |
| Smart IR |
Supported |
| HLC |
Supported |
| BLC |
Supported |
| Defog |
Digital Defog |
| Flip |
Normal / Vertical / Horizontal / 180° |
| Dewarping |
N/A |
| SMART FEATURES |
| Motion Detection |
Up to 4 Areas |
| Tampering Alarm |
Supported |
| ROI |
Up to 8 Areas |
| Corridor Mode |
Supported |
| ILLUMINATOR |
| Supplemental Light |
IR |
| IR Distance |
Up to 30m |
| Wavelength |
850nm |
| IR On/Off Control |
Auto / Manual |
| Smart IR |
Supported |
| STORAGE |
| Edge Storage |
N/A |
| Network Storage |
N/A |
| NETWORK |
| Network Interface |
1 × 10/100M Base-TX Ethernet |
| Protocols |
IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP |
| Compatible Integration |
API |
| Client |
EZStation / EZView / EZLive |
| Web Browser |
Plug-in Free Live View: Chrome 57.0+, Firefox 58.0+, Edge 16+ |
| INTERFACE |
| Network |
1 × RJ45 10/100M Base-TX Ethernet |
| Audio I/O |
N/A |
| Alarm I/O |
N/A |
| Serial Port |
N/A |
| Wi-Fi |
N/A |
| Video Output |
N/A |
| POWER & PROTECTION |
| Power Supply |
DC 12V ±25%, PoE IEEE 802.3af |
| Power Consumption |
Max. 5.0W |
| Surge Protection |
4KV |
| Ingress Protection |
IP67 |
| Vandal Resistance |
IK10 |
| PHYSICAL & ENVIRONMENT |
| Dimensions |
Φ109 × 81mm |
| Weight |
0.35kg |
| Material |
Metal + Plastic |
| Operating Temperature |
-30°C ~ 60°C |
| Storage Temperature |
-30°C ~ 60°C |
| Humidity |
≤95% RH (Non-condensing) |
| Reset Button |
N/A |

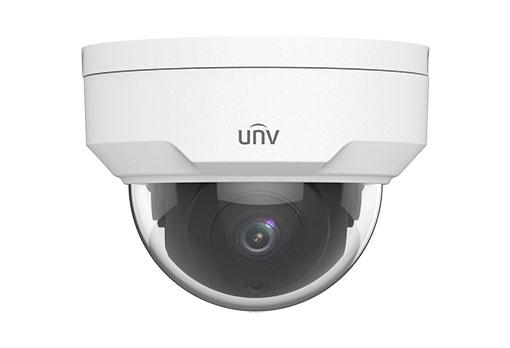

Note: The Uniview IPC322LB-SF40-A is a 2MP vandal-resistant fixed dome network camera with a 4.0mm fixed lens, 30m IR illumination, Ultra 265 video compression, PoE support and IP67/IK10 protection.
Important: The IPC322LB-SF40-A supports 2MP Full HD resolution up to 30fps, 4.0mm fixed lens, 30m Smart IR, 2D/3D DNR, DWDR, Motion Detection, ROI, Corridor Mode, PoE IEEE 802.3af, IP67 and IK10 vandal resistance.
