Specifications Uniview IPC3232SB-AHDZK-PI-I0
| Features | Specifications |
|---|---|
Camera |
|
| Camera Type | 2MP LightHunter VF IR Dome Network Camera |
| Image Sensor | 1/2.8″ CMOS |
| Resolution | 1920 × 1080 |
| Frame Rate | Up to 60fps at 1920 × 1080 |
| Minimum Illumination | Color: 0.001 Lux (F1.4, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000s |
| WDR | 120dB Optical WDR |
| S/N Ratio | >52dB |
Lens |
|
| Focal Length | 2.8 to 12mm Motorized Varifocal Lens |
| Iris | P-Iris, F1.4 |
| Optical Zoom | 4X |
| Digital Zoom | 16X |
| Horizontal Field of View | 96.6° to 32.4° |
| Vertical Field of View | 53.1° to 18.6° |
| Diagonal Field of View | 112.8° to 37.2° |
| Adjustment Angle | Pan: 0° to 355°, Tilt: 0° to 70°, Rotate: 0° to 355° |
DORI |
|
| Detect | 43.4m to 186.2m |
| Observe | 17.4m to 74.5m |
| Recognize | 8.7m to 37.2m |
| Identify | 4.3m to 18.6m |
Night Vision and Image Enhancement |
|
| IR Distance | Up to 40m |
| IR Wavelength | 850nm |
| IR Control | Auto/Manual |
| Image Enhancement | 2D/3D DNR, HLC, BLC, Digital Defog |
| Corridor Mode | 9:16 Corridor Mode Supported |
| LightHunter | Enhanced image quality in low-light environments |
Video |
|
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate | 128Kbps to 16Mbps |
| U-Code | Supported |
| Smart Intrusion Prevention | Cross Line, Intrusion, Enter Area and Leave Area Detection with False Alarm Filtering |
| People Counting | People Flow Counting and Crowd Density Monitoring |
| Face Detection | Supported, including masked area detection |
Storage |
|
| Edge Storage | MicroSD, up to 256GB |
| Network Storage | ANR, NAS (NFS) |
Audio and Alarm |
|
| Audio I/O | 1 Input / 1 Output |
| Built-in Microphone | Supported |
| Alarm I/O | 2 Inputs / 1 Output |
| Serial Port | 1 × RS485 |
| Video Output | 1 × BNC for Debugging |
Network |
|
| Network Interface | 1 × RJ45 10/100M Base-TX Ethernet |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1X, SNMP, QoS, RTMP, SSL/TLS |
| Compatibility | ONVIF Profile S/G/T, API, SDK |
| Users | Up to 32 users with administrator, operator and common user levels |
| Client Software | EZStation, EZView, EZLive |
Power and Environmental |
|
| Power Supply | DC 12V ±25% or PoE IEEE 802.3af |
| Power Consumption | Maximum 8W |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | ≤95% RH, non-condensing |
| Storage Temperature | -40°C to 70°C |
| Surge Protection | 6KV |
Protection and Physical |
|
| Protection Rating | IP67, IK10 |
| Dimensions | Ø148 × 111.4mm |
| Weight | 0.93kg |

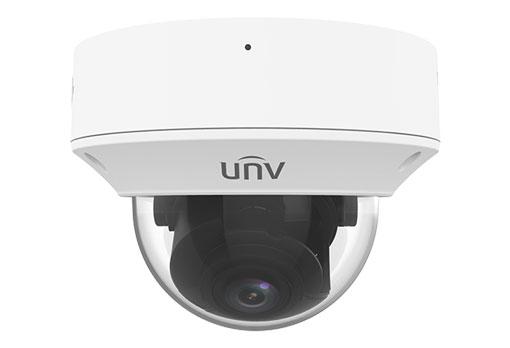

Note: The Uniview IPC3232SB-AHDZK-PI-I0 is a 2MP LightHunter varifocal IR dome network camera with a 2.8–12mm motorized lens, 4X optical zoom, 120dB WDR, up to 40m IR illumination, 60fps Full HD video, Smart Intrusion Prevention, People Counting, MicroSD storage, built-in microphone, alarm I/O, and IP67/IK10 protection. It supports DC 12V or PoE 802.3af power.
