| Features |
Description |
| Device Type |
4MP LightHunter Intelligent Vandal-resistant Dome Network Camera |
| Image Sensor |
1/1.8″ Progressive Scan CMOS |
| Maximum Resolution |
2688 × 1520 |
| Lens |
2.8 ~ 12mm AF Motorized Zoom Lens |
| WDR |
120dB Optical WDR |
| IR Range |
Up to 40m |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Smart Features |
People Counting, Smart Intrusion Prevention, Exception Detection and Statistics |
| LightHunter |
Supported |
| Storage |
MicroSD up to 256GB |
| Protection |
IP67 / IK10 |
| CAMERA |
| Image Sensor |
1/1.8″, 4.0 Megapixel Progressive Scan CMOS |
| Minimum Illumination |
Color: 0.0005 Lux (F1.2, AGC ON), 0 Lux with IR |
| Day/Night |
IR-Cut Filter with Auto Switch (ICR) |
| Shutter |
Auto / Manual, 1 ~ 1/100000s |
| WDR |
120dB |
| S/N |
>56dB |
| LENS |
| Lens Type |
2.8 ~ 12mm AF Automatic Focusing and Motorized Zoom Lens |
| Optical Zoom |
4.3X |
| Iris |
Auto Aperture, F1.2 |
| Horizontal Field of View |
35.6° ~ 107.9° |
| Vertical Field of View |
20.4° ~ 75.4° |
| Diagonal Field of View |
43.8° ~ 140.3° |
| DORI |
| Detect |
42m ~ 180m |
| Observe |
16.8m ~ 72m |
| Recognize |
8.4m ~ 36m |
| Identify |
4.2m ~ 18m |
| VIDEO |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Main Stream |
4MP (2688 × 1520), Max 30fps; 4MP (2560 × 1440), Max 30fps; 2MP (1920 × 1080), Max 60fps |
| Sub Stream |
2MP (1920 × 1080), Max 60fps |
| Third Stream |
D1 (720 × 576), Max 60fps |
| Fourth Stream |
D1 (720 × 576), Max 60fps |
| Fifth Stream |
D1 (720 × 576), Max 60fps |
| Video Bit Rate |
128Kbps ~ 16Mbps |
| Video Stream |
Five Streams |
| ROI |
Supported |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
Up to 8 Areas |
| IMAGE |
| White Balance |
Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Digital Noise Reduction |
2D / 3D DNR |
| Smart IR |
Supported |
| HLC |
Supported |
| BLC |
Supported |
| Defog |
Digital Defog |
| Image Flip |
Normal / Vertical / Horizontal / 180° / 90° Clockwise / 90° Anti-Clockwise |
| SMART FEATURES |
| People Counting |
Tripwire People Counting, Area People Counting and Statistics of People Entering / Leaving |
| Smart Intrusion Prevention |
Cross Line, Intrusion, Enter Area and Leave Area Detection |
| Exception Detection |
Object Moving, Object Left, Defocus and Scene Change |
| False Alarm Filtering |
Supported |
| LightHunter |
Provides High Image Quality in Low-Light Environments |
| ILLUMINATOR |
| IR Range |
Up to 40m |
| IR Wavelength |
850nm |
| IR Control |
Auto / Manual |
| Smart IR |
Supported |
| STORAGE |
| Edge Storage |
MicroSD, Up to 256GB |
| Network Storage |
ANR, NAS (NFS) |
| NETWORK |
| Network Interface |
1 × RJ45 10/100Mbps Base-TX Ethernet |
| ONVIF |
Supported |
| Network Protocol |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS and RTMP |
| Compatible Integration |
ONVIF / API |
| Video Output |
Not Supported |
| AUDIO & ALARM |
| Audio Input |
1 Input, Impedance 35kΩ, Amplitude 2V [p-p] |
| Audio Output |
1 Output, Impedance 600Ω, Amplitude 2V [p-p] |
| Audio Compression |
G.711U / G.711A |
| Two-way Audio |
Supported |
| Sampling Rate |
8KHz |
| Alarm Input |
1 Channel |
| Alarm Output |
1 Channel |
| POWER & PROTECTION |
| Power Supply |
AC 24V ±25% / DC 12V ±25% / PoE (IEEE 802.3af) |
| Maximum Power Consumption |
10W |
| Surge Protection |
6KV |
| Protection |
IP67 / IK10 |
| PHYSICAL & ENVIRONMENT |
| Dimensions |
Φ148 × 111.3mm |
| Weight |
0.96kg |
| Material |
Metal |
| Operating Temperature |
-30°C to 60°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
≤95% RH, Non-Condensing |
| Storage Humidity |
≤95% RH, Non-Condensing |
| Installation |
Indoor / Outdoor |

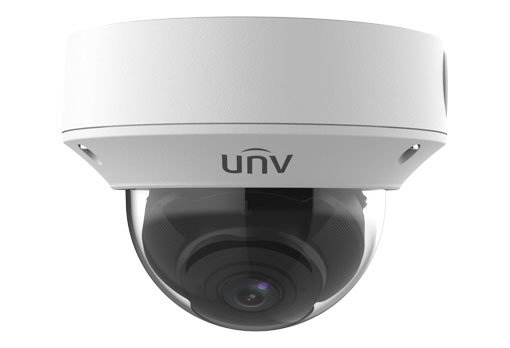

Note: The Uniview IPC3234SA-DZK is a 4MP LightHunter Intelligent Vandal-resistant Dome Network Camera featuring a 1/1.8″ progressive scan CMOS sensor, 2.8~12mm AF motorized zoom lens and 120dB optical WDR. It supports 4MP video at up to 30fps, Ultra 265/H.265/H.264/MJPEG compression, Smart IR up to 40m, five video streams, people counting, Smart Intrusion Prevention, MicroSD storage up to 256GB and two-way audio. The camera supports AC 24V, DC 12V and PoE (IEEE 802.3af).
Important: The IPC3234SA-DZK is a 4MP LightHunter Intelligent Vandal-resistant Dome Camera with 2.8~12mm motorized zoom lens, 120dB optical WDR and Smart IR up to 40m. It supports People Counting, Smart Intrusion Prevention, Exception Detection, five video streams, MicroSD storage up to 256GB, 1 alarm input / 1 alarm output, 1 audio input / 1 audio output, 6KV surge protection, IP67 and IK10 vandal resistance. Maximum power consumption is 10W.
