| Features |
Specifications |
| Product Type |
3MP HD IR Fixed Dome Network Camera |
| Image Sensor |
1/2.7″ Progressive Scan CMOS |
| Maximum Resolution |
2304 × 1296 |
| Frame Rate |
Up to 30fps |
| Minimum Illumination |
Color: 0.01 Lux @ F2.0, AGC ON; 0 Lux with IR |
| Day & Night |
IR-Cut Filter with Auto Switch (ICR) |
| Shutter |
Auto / Manual, 1 ~ 1/100000s |
| WDR |
DWDR |
| S/N |
>52dB |
Lens
| Item |
Specifications |
| Lens Type |
Fixed Focal Lens |
| Focal Length |
4.0mm |
| Aperture |
F2.0 |
| Lens Mount |
Fixed |
| Horizontal FOV |
91.2° |
| Vertical FOV |
47.9° |
| Diagonal FOV |
95.9° |
DORI
| Function |
Distance |
| Detect |
60m |
| Observe |
24m |
| Recognize |
12m |
| Identify |
6m |
IR & Image Enhancement
| Item |
Specifications |
| IR Range |
Up to 30m |
| IR Wavelength |
850nm |
| IR Control |
Auto / Manual |
| Smart IR |
Supported |
| Digital Noise Reduction |
2D / 3D DNR |
| Backlight Compensation |
HLC / BLC |
| Defog |
Digital Defog |
| White Balance |
Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
Video
| Item |
Specifications |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| H.264 Profile |
Baseline / Main / High Profile |
| Main Stream |
3MP (2304 × 1296), 1080P, 720P, Up to 30fps |
| Sub Stream |
720P, D1, 640 × 360, 2CIF, CIF, Up to 30fps |
| Video Bit Rate |
128Kbps ~ 6144Kbps |
| U-Code |
Supported |
| Video Streams |
Dual Stream |
| OSD |
Up to 4 OSDs |
| Privacy Mask |
Up to 4 Areas per Scene |
| ROI |
Up to 8 Areas |
| Corridor Mode |
9:16 Supported |
Intelligent Functions
| Function |
Specifications |
| Motion Detection |
Supported |
| Ultra Motion Detection |
Supported |
| Cross Line Detection |
Supported |
| Intrusion Detection |
Supported |
| Enter Area Detection |
Supported |
| Leave Area Detection |
Supported |
| Smart Intrusion Prevention |
Supported |
| Audio Detection |
Supported |
| Tampering Detection |
Supported |
Storage & Network
| Item |
Specifications |
| Memory Card |
MicroSD, Up to 128GB |
| ANR |
Supported |
| Network Storage |
NAS (NFS) |
| Network Interface |
1 × RJ45 10/100Mbps Ethernet |
| Network Protocols |
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, 802.1X |
| ONVIF |
Profile S / Profile G / Profile T |
| API / SDK |
Supported |
| Remote Access |
EZStation / EZView / EZLive |
Interface
| Item |
Specifications |
| Ethernet |
1 × RJ45 10/100Mbps |
| Audio |
Not Supported |
| Alarm Input / Output |
Not Supported |
| Reset |
Supported |
Power & General
| Item |
Specifications |
| Power Supply |
DC 12V ±25% / PoE IEEE 802.3af |
| Power Consumption |
Max. 5.0W |
| Operating Temperature |
-30°C ~ 60°C |
| Operating Humidity |
≤95% RH, Non-Condensing |
| Ingress Protection |
IP67 |
| Vandal Resistance |
IK10 |
| Adjustment |
Pan: 3° ~ 360°, Tilt: 0° ~ 68°, Rotate: 3° ~ 360° |
| Dimensions |
Ø109 × 81mm |
| Weight |
Approx. 0.36kg |
| Housing |
Metal + Plastic |

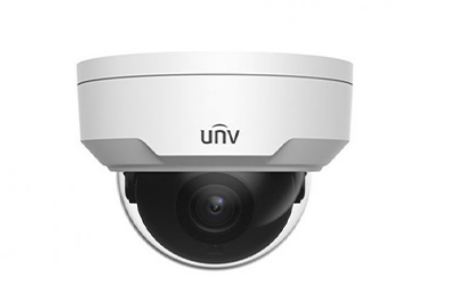

Note: The IPC323LB-SF40K-G is the 4mm lens variant of the IPC323LB-SF28(40)K-G series. It features a 3MP sensor, 30m Smart IR, DWDR, 9:16 corridor mode, MicroSD storage and PoE support.
Important: The IPC323LB-SF40K-G is a fixed dome camera with a 4.0mm lens. The 2.8mm variant is the IPC323LB-SF28K-G.
