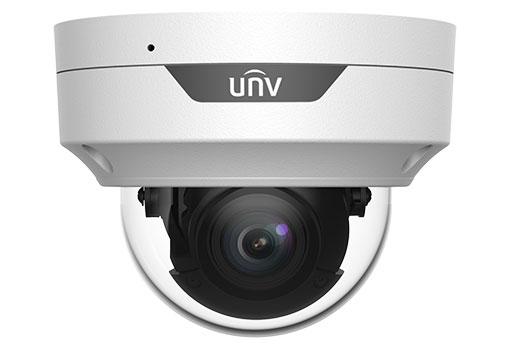

Specifications Uniview IPC3532LB-ADZK-H

Features	Description
Product Type	2MP HD IR Varifocal Dome Network Camera
Image Sensor	1/2.7″ Progressive Scan CMOS
Maximum Resolution	1920 × 1080
Frame Rate	Up to 30 fps @ 1920 × 1080
Lens	2.8 ~ 12 mm Motorized Varifocal Lens
Aperture	F1.6
Minimum Illumination	0.003 Lux (F1.6, AGC ON), 0 Lux with IR
Field of View	H: 103.6° ~ 33.4° / V: 54.8° ~ 18.7° / D: 107.9° ~ 37.8°
WDR	120 dB True WDR
IR Range	Up to 40 m
Video Compression	Ultra 265 / H.265 / H.264 / MJPEG
Video Streams	Dual Streams
Image Enhancement	2D/3D DNR / BLC / HLC / Smart IR / 9:16 Corridor Mode
Smart Functions	Motion Detection / Tampering Alarm / Audio Detection
Audio	Built-in Microphone
Storage	MicroSD up to 512GB
Network Interface	1 × RJ45 10/100M Base-TX Ethernet
ONVIF	Profile S / Profile G / Profile T
Power Supply	DC 12V ±25% / PoE IEEE 802.3af
Power Consumption	Max. 8 W
Ingress Protection	IP67
Vandal Resistance	IK10
Surge Protection	6 KV
Operating Temperature	-30°C ~ 60°C
Dimensions	Φ128 × 100 mm
Weight	0.66 kg

CAMERA & LENS
Image Sensor	1/2.7″ 2MP Progressive Scan CMOS
Resolution	1920 × 1080
Lens	2.8 ~ 12 mm Motorized Varifocal Lens
Aperture	F1.6
Field of View	H: 103.6° ~ 33.4° / V: 54.8° ~ 18.7° / D: 107.9° ~ 37.8°
WDR	120 dB True WDR

VIDEO & IMAGE
Video Compression	Ultra 265 / H.265 / H.264 / MJPEG
Main Stream	1920 × 1080 @ Max. 30 fps
Sub Stream	720P / D1 / 640 × 360 @ Max. 30 fps
Video Bit Rate	128 Kbps ~ 6144 Kbps
DNR	2D/3D DNR
ROI	Supported
Privacy Mask	Up to 4 Areas
Smart IR	Supported
Corridor Mode	9:16 Supported

INTELLIGENT FEATURES
Motion Detection	Supported
Tampering Alarm	Supported
Audio Detection	Supported
Smart IR	Supported

AUDIO & STORAGE
Microphone	Built-in Microphone
Audio I/O	Built-in Microphone
MicroSD	Up to 512GB

NETWORK
Network Interface	1 × RJ45 10/100M Base-TX
ONVIF	Profile S / Profile G / Profile T
Video Stream	Dual Streams
Protocols	IPv4 / IPv6 / TCP / UDP / DHCP / DNS / DDNS / NTP / RTP / RTSP / HTTP / HTTPS / FTP / SMTP / SNMP / UPnP

POWER & PROTECTION
Power Supply	DC 12V ±25% / PoE IEEE 802.3af
Power Consumption	Max. 8 W
Ingress Protection	IP67
Vandal Resistance	IK10
Surge Protection	6 KV
Operating Temperature	-30°C ~ 60°C

Note: The Uniview IPC3532LB-ADZK-H is a 2MP HD IR Varifocal Dome Network Camera featuring a 1/2.7″ CMOS sensor, 2.8–12mm motorized varifocal lens, 120dB True WDR, Smart IR up to 40m, Ultra 265 video compression, built-in microphone, MicroSD storage up to 512GB, PoE support, IP67 weather protection and IK10 vandal resistance. It is suitable for indoor and outdoor surveillance applications.
