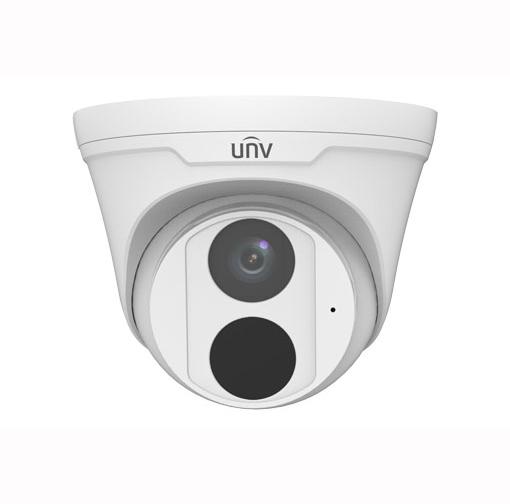

IPC3614LE-ADF28K

Uniview รุ่น IPC3614LE-ADF28K

4MP EasyStar Fixed Dome Network Camera

  • Optics

    Day/night functionality

    Smart IR, up to 30m (98ft) IR distance

    Optical glass window with higher light transmittance

    IR anti-reflection window to increase the infrared transmittance

    2D/3D DNR (Digital Noise Reduction)

  • Compression

    Ultra 265, H.265, H.264, MJPEG

    ROI (Region of Interest)

  • Network

    ONVIF Conformance

  • Structure

    Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)

    Wide voltage range of ±25%

    IP67

หมวดหมู่: , , , , ป้ายกำกับ: ,
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

Uniview IPC3614LE-ADF28K

IPC3614LE-ADF28K IPC3614LE-ADF40K
Camera
Sensor 1/3″, 4.0 megapixel, progressive scan, CMOS
Lens 2.8mm@F1.6 4.0mm@F1.6
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 63 25.2 12.6 6.3
4.0 90 36 18 9
Angle Of View (H) 105.3° 79.7°
Angle Of View (V) 57° 41.6°
Angle Of View (O) 136.9° 98.0°
Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 80° Rotate: 0° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.005Lux ( F1.6, AGC ON)
0Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52dB
IR Range Up to 30m (98ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR 120db
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile Baseline profile, Main Profile, High Profile
Frame Rate Main Stream: 4MP (2688*1520), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 25fps
Video Bit Rate 128 Kbps~16 Mbps
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 4 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°
Dewarping Support
HLC Supported
BLC Supported
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Audio
Audio Compression G.711
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR
Interface
Network 10/100M Base-TX Ethernet
Built-in Mic Supported
Certifications
Certifications CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 3W
Dimensions (Ø x H) Φ118 x 96mm (Φ4.6” x 3.8”)
Net Weight 0.35kg (0.77lb)
Material Front cover:metal
Rear cover:plastic
Bracket:plastic
Bottom plate:metal
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 2KV
Ingress Protection IP67
