| Features |
Description |
| Product Type |

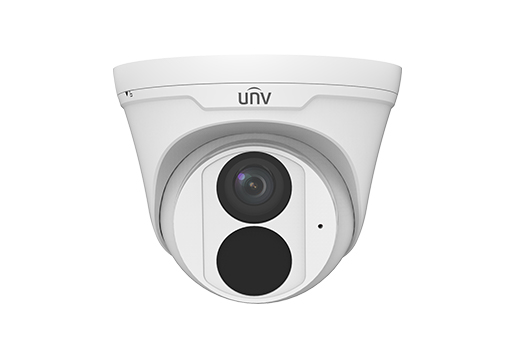

4MP EasyStar Fixed Dome Network Camera |
| Image Sensor |
1/3″ 4.0 Megapixel Progressive Scan CMOS |
| Max. Resolution |
2688 × 1520 |
| Lens |
4.0mm Fixed Lens, F1.6 |
| WDR |
120dB True WDR |
| IR Range |
Up to 30m |
| Compression |
Ultra 265, H.265, H.264, MJPEG |
| Protection |
IP67 |
| Camera |
| Sensor |
1/3″, 4.0MP Progressive Scan CMOS |
| Minimum Illumination |
0.005 Lux @ F1.6, AGC ON; 0 Lux with IR |
| Shutter |
Auto/Manual, 1s to 1/100000s |
| Day/Night |
IR-cut filter with automatic switch (ICR) |
| S/N Ratio |
>52dB |
| WDR |
120dB |
| Digital Noise Reduction |
2D/3D DNR |
| Adjustment |
Pan: 0°–360°, Tilt: 0°–80°, Rotate: 0°–360° |
| Lens & DORI |
| Lens Type |
Fixed-focal |
| Focal Length |
4.0mm @ F1.6 |
| Lens Mount |
M12 |
| Horizontal FOV |
79.7° |
| Vertical FOV |
41.6° |
| Diagonal FOV |
98.0° |
| Detect |
90m |
| Observe |
36m |
| Recognize |
18m |
| Identify |
9m |
| Illuminator |
| IR Range |
Up to 30m |
| IR Wavelength |
850nm |
| IR Control |
Auto/Manual |
| Smart IR |
Supported |
| Video |
| Main Stream |
4MP (2688 × 1520) up to 25fps; 4MP (2560 × 1440) up to 25fps; 3MP (2304 × 1296) up to 30fps; 2MP (1920 × 1080) up to 30fps |
| Sub Stream |
720P (1280 × 720) up to 25fps |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| H.264 Profile |
Baseline, Main, High Profile |
| Video Bit Rate |
128Kbps–16Mbps |
| U-Code |
Supported |
| Video Stream |
Dual streams |
| 9:16 Corridor Mode |
Supported |
| OSD |
Up to 4 OSDs |
| Privacy Mask |
Up to 4 areas |
| ROI |
Up to 4 areas |
| Motion Detection |
Up to 4 areas |
| Image & Detection |
| White Balance |
Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| BLC |
Supported |
| HLC |
Supported |
| Defog |
Digital Defog |
| Digital Noise Reduction |
2D/3D DNR |
| Smart IR |
Supported |
| Dewarping |
Supported |
| Flip |
Normal, Vertical, Horizontal, 180° |
| Network |
| Network Interface |
1 × 10/100M Base-TX Ethernet |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL |
| ONVIF |
Profile S, Profile G, Profile T |
| API |
Supported |
| Client Software |
EZStation, EZView, EZLive |
| Web Browser |
IE, Chrome, Firefox, Edge, Safari |
| Audio & Storage |
| Built-in Microphone |
Supported |
| Audio Compression |
G.711 |
| Audio Sampling Rate |
8kHz |
| MicroSD Card |
Up to 256GB |
| Network Storage |
ANR supported |
| Interface |
| Ethernet |
10/100M Base-TX |
| Built-in Microphone |
Supported |
| Power & Physical |
| Power Supply |
12V DC ±25% |
| PoE |
IEEE 802.3af |
| Power Consumption |
Max. 3W |
| Dimensions |
Φ118 × 96mm |
| Net Weight |
Approx. 0.35kg |
| Material |
Metal front cover, plastic rear cover and bracket, metal bottom plate |
| Environment & Protection |
| Operating Temperature |
−30°C to +60°C |
| Operating Humidity |
≤95% RH, non-condensing |
| Storage Temperature |
−30°C to +60°C |
| Storage Humidity |
≤95% RH, non-condensing |
| Surge Protection |
2KV |
| Ingress Protection |
IP67 |
Note: The IPC3614LE-ADF40K is the 4.0mm fixed-lens version of the IPC3614LE-ADF28(40)K series, providing a narrower field of view and longer DORI distances than the 2.8mm version.
Important: Specifications above refer specifically to IPC3614LE-ADF40K. Do not combine specifications from the newer -G, -H, -H3 or -DL3 variants.
