| Features |
Description |
| Device Type |
4MP ColorHunter with Wise-ISP Fixed Eyeball Network Camera |
| Image Sensor |
1/1.8″ Progressive Scan CMOS |
| Maximum Resolution |
2688 × 1520 |
| Lens |
4.0mm Fixed Lens |
| Field of View |
96.1° Horizontal |
| WDR |
120dB True WDR |
| Minimum Illumination |
0.0003 Lux (F1.0, AGC ON) |
| Supplemental Light |
Warm Light, Up to 30m |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Smart Features |
ColorHunter with Wise-ISP, 9:16 Corridor Mode, Smart Illumination |
| Audio |
Built-in Microphone |
| Storage |
MicroSD up to 512GB |
| Protection |
IP67 |
| Power |
DC 12V ±25% / PoE (IEEE 802.3af) |
| CAMERA |
| Image Sensor |
1/1.8″, 4.0 Megapixel Progressive Scan CMOS |
| Maximum Resolution |
2688 × 1520 |
| Minimum Illumination |
Color: 0.0003 Lux (F1.0, AGC ON) |
| Day/Night |
ColorHunter Full-Color |
| Shutter |
Auto / Manual, 1 ~ 1/100000s |
| WDR |
120dB True WDR |
| S/N |
>52dB |
| Adjustment Angle |
Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360° |
| LENS |
| Lens Type |
Fixed |
| Focal Length |
4.0mm |
| Iris |
F1.0, Fixed |
| Horizontal Field of View |
96.1° |
| Vertical Field of View |
52.2° |
| Diagonal Field of View |
113.5° |
| DORI |
| Detect |
62.1m |
| Observe |
24.8m |
| Recognize |
12.4m |
| Identify |
6.2m |
| VIDEO |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| H.264 Profile |
Baseline Profile / Main Profile / High Profile |
| Main Stream |
4MP (2688 × 1520), Max 25fps; 4MP (2560 × 1440), Max 25fps; 3MP (2304 × 1296), Max 30fps; 1080P (1920 × 1080), Max 30fps |
| Sub Stream |
720P (1280 × 720), Max 30fps; D1 (720 × 576), Max 30fps; 640 × 360, Max 30fps; 2CIF (704 × 288), Max 30fps; CIF (352 × 288), Max 30fps |
| Video Bit Rate |
128Kbps ~ 6144Kbps |
| Video Stream |
Dual Streams |
| U-Code |
Supported |
| 9:16 Corridor Mode |
Supported |
| OSD |
Up to 4 OSDs |
| Privacy Mask |
Up to 4 Areas |
| ROI |
Up to 8 Areas |
| IMAGE |
| ColorHunter |
Supported |
| Wise-ISP |
Supported |
| White Balance |
Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Digital Noise Reduction |
2D / 3D DNR |
| Smart Illumination |
Supported |
| HLC |
Supported |
| BLC |
Supported |
| Defog |
Digital Defog |
| Image Flip |
Normal / Vertical / Horizontal / 180° / 90° Clockwise / 90° Anti-clockwise |
| SMART FEATURES |
| ColorHunter with Wise-ISP |
Optimizes Color, Detail and Smear Effects in Extremely Low-Light Scenes |
| Motion Detection |
Supported |
| Ultra Motion Detection |
Supported |
| Tampering Alarm |
Supported |
| Audio Detection |
Supported |
| ILLUMINATOR |
| Light Type |
Warm Light |
| Warm Light Range |
Up to 30m |
| Light On/Off Control |
Auto / Manual |
| AUDIO |
| Built-in Microphone |
Supported |
| Audio I/O |
Not Supported |
| Built-in Speaker |
Not Supported |
| STORAGE |
| Edge Storage |
MicroSD, Up to 512GB |
| Network Storage |
ANR / NAS (NFS) |
| NETWORK |
| Network Interface |
1 × RJ45 10/100Mbps Base-TX Ethernet |
| ONVIF |
Profile S / Profile G / Profile T |
| Compatible Integration |
ONVIF / API / SDK |
| Network Protocols |
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP, QoS |
| Users |
Up to 32 Users, 3 User Levels |
| Client |
EZStation / EZView / EZLive / Web Browser |
| INTERFACE |
| Network |
1 × RJ45 10/100Mbps Base-TX Ethernet |
| Built-in Microphone |
Supported |
| Audio I/O |
Not Supported |
| Alarm I/O |
Not Supported |
| Serial Port |
Not Supported |
| Wi-Fi |
Not Supported |
| Video Output |
Not Supported |
| POWER & PROTECTION |
| Power Supply |
DC 12V ±25% / PoE (IEEE 802.3af) |
| Maximum Power Consumption |
2.8W |
| Power Interface |
Ø5.5mm Coaxial Power Plug |
| Protection |
IP67 |
| CERTIFICATION |
| EMC |
CE-EMC / FCC |
| Safety |
CE LVD / UL/CUL |
| Environment |
CE-RoHS / WEEE |
| PHYSICAL & ENVIRONMENT |
| Dimensions |
Ø118 × 106mm |
| Weight |
0.48kg |
| Material |
Metal + Plastic |
| Operating Temperature |
-30°C to 60°C |
| Operating Humidity |
≤95% RH, Non-Condensing |
| Storage Temperature |
-30°C to 60°C |
| Storage Humidity |
≤95% RH, Non-Condensing |
Note: The Uniview IPC3624LE-ADF40K-WP is a 4MP ColorHunter with Wise-ISP fixed eyeball network camera featuring a 1/1.8″ progressive scan CMOS sensor, 4.0mm fixed F1.0 lens, 2688 × 1520 resolution at up to 25fps, 120dB True WDR and a 96.1° horizontal field of view. It supports ColorHunter with Wise-ISP technology for full-color imaging in extremely low-light conditions, Ultra 265/H.265/H.264/MJPEG compression, warm light illumination up to 30m, built-in microphone, MicroSD storage up to 512GB, PoE (IEEE 802.3af), 9:16 Corridor Mode and IP67 protection.

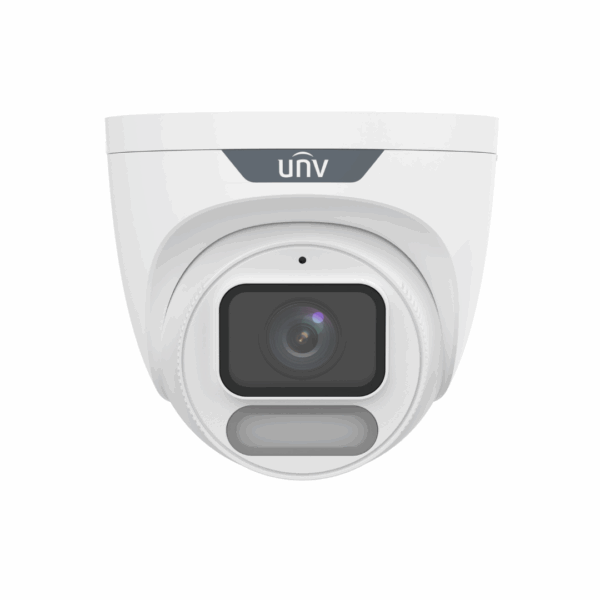

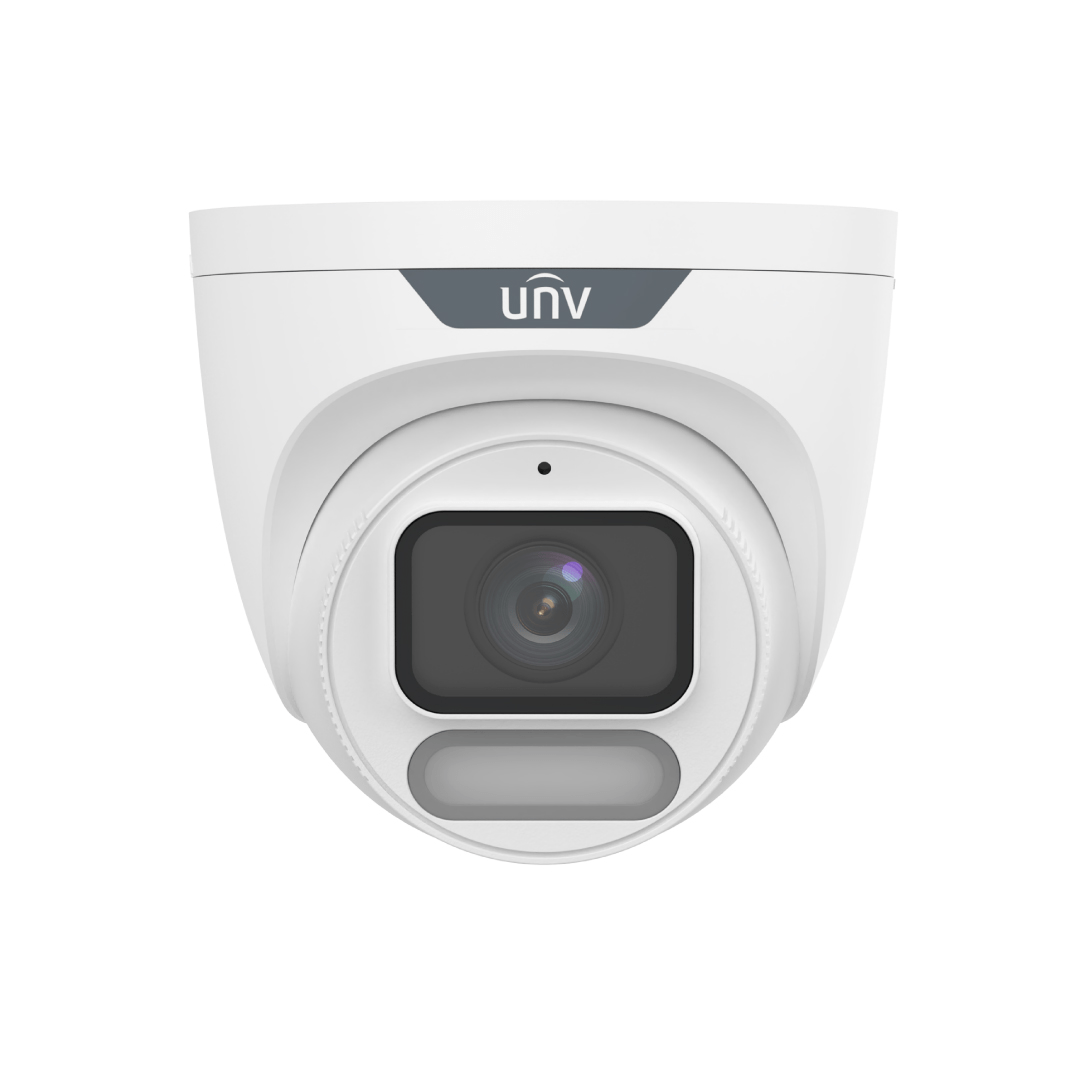

Important: The IPC3624LE-ADF40K-WP is a Fixed Eyeball/Turret Camera, not a Bullet, Dome or PTZ camera. It uses a 4.0mm fixed F1.0 lens with a 96.1° horizontal field of view. The camera provides DORI distances of up to 62.1m Detect, 24.8m Observe, 12.4m Recognize and 6.2m Identify. It supports ColorHunter with Wise-ISP, warm light up to 30m, PoE (IEEE 802.3af), IP67, built-in microphone and MicroSD storage up to 512GB.
