| Features |
Description |
| Device Type |
5MP LightHunter Motorized Varifocal IR Turret Network Camera |
| Image Sensor |
1/2.7″ Progressive Scan CMOS |
| Maximum Resolution |
2880 × 1620 |
| Lens |
2.7 ~ 13.5mm Motorized Zoom Lens with AF |
| Field of View |
106.25° ~ 30.42° Horizontal |
| WDR |
120dB True WDR |
| IR Range |
Up to 40m |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Smart Features |
Smart Intrusion Prevention, Cross Line, Intrusion, Enter Area, Leave Area, People Flow Counting and Crowd Density Monitoring |
| Audio |
Built-in Microphone |
| Storage |
MicroSD up to 512GB |
| Protection |
IP67 / IK10 |
| Power |
DC 12V ±25% / PoE (IEEE 802.3af) |
| CAMERA |
| Image Sensor |
1/2.7″, 5.0 Megapixel Progressive Scan CMOS |
| Maximum Resolution |
2880 × 1620 |
| Minimum Illumination |
Color: 0.002 Lux (F1.2, AGC ON), 0 Lux with IR |
| Day/Night |
IR-Cut Filter with Auto Switch (ICR) |
| Shutter |
Auto / Manual, 1 ~ 1/100000s |
| WDR |
120dB True WDR |
| S/N |
>56dB |
| Adjustment Angle |
Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360° |
| LENS |
| Lens Type |
Motorized Varifocal |
| Focal Length |
2.7 ~ 13.5mm |
| Focus |
AF Automatic Focusing |
| Zoom |
Motorized Zoom |
| Iris |
Fixed, F1.2 |
| Horizontal Field of View |
106.25° ~ 30.42° |
| Vertical Field of View |
56.36° ~ 17.22° |
| Diagonal Field of View |
110.34° ~ 34.18° |
| DORI |
| 2.7mm – Detect |
60.8m |
| 2.7mm – Observe |
24.3m |
| 2.7mm – Recognize |
12.2m |
| 2.7mm – Identify |
6.1m |
| 13.5mm – Detect |
303.8m |
| 13.5mm – Observe |
121.5m |
| 13.5mm – Recognize |
60.8m |
| 13.5mm – Identify |
30.4m |
| VIDEO |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Main Stream |
5MP (2880 × 1620), Max 30fps; 4MP (2560 × 1440), Max 30fps; 3MP (2304 × 1296), Max 30fps; 1080P (1920 × 1080), Max 30fps |
| Sub Stream |
720P (1280 × 720), Max 30fps; D1 (720 × 576), Max 30fps; 640 × 360, Max 30fps |
| Third Stream |
D1 (720 × 576), Max 30fps; 640 × 360, Max 30fps; 2CIF (704 × 288), Max 30fps; CIF (352 × 288), Max 30fps |
| Video Bit Rate |
128Kbps ~ 16Mbps |
| Video Stream |
Triple Streams |
| U-Code |
Supported |
| 9:16 Corridor Mode |
Supported |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
Up to 4 Areas |
| ROI |
Up to 8 Areas |
| IMAGE |
| White Balance |
Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Digital Noise Reduction |
2D / 3D DNR |
| Smart IR |
Supported |
| HLC |
Supported |
| BLC |
Supported |
| Defog |
Digital Defog |
| Image Flip |
Normal / Vertical / Horizontal / 180° / 90° Clockwise / 90° Anti-clockwise |
| SMART FEATURES |
| Cross Line Detection |
Supported |
| Intrusion Detection |
Supported |
| Enter Area Detection |
Supported |
| Leave Area Detection |
Supported |
| Smart Intrusion Prevention |
Human / Motor Vehicle / Non-Motor Vehicle Classification |
| People Flow Counting |
Supported |
| Crowd Density Monitoring |
Supported |
| Motion Detection |
Up to 4 Areas |
| Tampering Alarm |
Supported |
| Audio Detection |
Supported |
| ILLUMINATOR |
| Light Type |
IR |
| IR Range |
Up to 40m |
| IR Wavelength |
850nm |
| IR Control |
Auto / Manual |
| Smart IR |
Supported |
| AUDIO |
| Built-in Microphone |
Supported |
| Audio Compression |
G.711U / G.711A |
| Audio Bit Rate |
64Kbps |
| Audio Sampling Rate |
8KHz |
| STORAGE |
| Edge Storage |
MicroSD, Up to 512GB |
| Network Storage |
ANR / NAS (NFS) |
| NETWORK |
| Network Interface |
1 × RJ45 10/100Mbps Base-TX Ethernet |
| ONVIF |
Profile S / Profile G / Profile T |
| Compatible Integration |
ONVIF / API / SDK |
| Network Protocols |
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP |
| Client |
EZStation / EZView / EZLive / Web Browser |
| INTERFACE |
| Network |
1 × RJ45 10/100Mbps Base-TX Ethernet |
| Audio |
Built-in Microphone |
| Alarm I/O |
Not Supported |
| Wi-Fi |
Not Supported |
| Video Output |
Not Supported |
| POWER & PROTECTION |
| Power Supply |
DC 12V ±25% / PoE (IEEE 802.3af) |
| Maximum Power Consumption |
7.0W |
| Surge Protection |
6KV |
| Protection |
IP67 |
| Vandal Resistance |
IK10 |
| PHYSICAL & ENVIRONMENT |
| Dimensions |
Φ129 × 110mm |
| Weight |
0.70kg |
| Material |
Metal |
| Operating Temperature |
-30°C to 60°C |
| Operating Humidity |
≤95% RH, Non-Condensing |

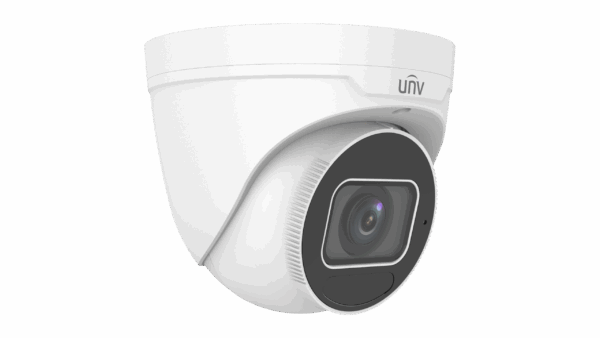

Note: The Uniview IPC3635SB-ADZK-I0 is a 5MP LightHunter motorized varifocal IR turret network camera featuring a 1/2.7″ progressive scan CMOS sensor, 2.7 ~ 13.5mm AF motorized zoom lens, 2880 × 1620 resolution at up to 30fps, 120dB True WDR and Smart IR up to 40m. It supports Ultra 265/H.265/H.264/MJPEG compression, intelligent perimeter protection, Smart Intrusion Prevention, people flow counting, crowd density monitoring, built-in microphone, MicroSD storage up to 512GB, PoE (IEEE 802.3af), IP67 and IK10 protection.
Important: The IPC3635SB-ADZK-I0 is a Turret / Eyeball Camera with a 2.7 ~ 13.5mm motorized varifocal lens. It is not a PTZ camera. The lens provides a horizontal viewing angle of approximately 106.25° ~ 30.42° and DORI Identify distances from 6.1m to 30.4m.
