Specifications UNIVIEW IPC3638SE-ADF28(40)K-WL-I0
| Features | Specifications |
|---|---|

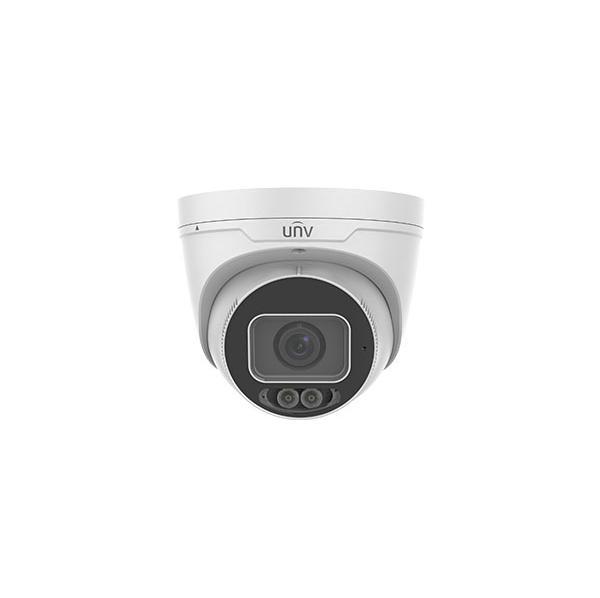

| Camera Type | 8MP ColorHunter Fixed Warm Light Turret Network Camera |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Maximum Resolution | 3840 × 2160 |
| Frame Rate | 8MP: 30fps (AI Off) / 25fps |
| Minimum Illumination | Color: 0.0005 Lux @ F1.0, AGC ON |
| Shutter | Auto / Manual, 1 ~ 1/100000s |
| WDR | 120dB True WDR |
| S/N Ratio | >56dB |
| ColorHunter | 24-Hour Full-Color Imaging |
| Corridor Mode | 9:16 Supported |
Lens
| Item | Specifications |
|---|---|
| Lens Type | Fixed |
| ADF28 Focal Length | 2.8mm @ F1.0 |
| ADF40 Focal Length | 4.0mm @ F1.0 |
| 2.8mm Field of View | H 113.5°, V 68.3°, D 133.0° |
| 4.0mm Field of View | H 94.3°, V 49.7°, D 115.9° |
| Adjustment Angle | Pan 0° ~ 360°, Tilt 0° ~ 72°, Rotate 0° ~ 360° |
DORI
| Lens | Distance |
|---|---|
| 2.8mm | Detect 63m / Observe 25.2m / Recognize 12.6m / Identify 6.3m |
| 4.0mm | Detect 90m / Observe 36m / Recognize 18m / Identify 9m |
Illuminator
| Item | Specifications |
|---|---|
| Light Type | Warm Light |
| LED Distance | Up to 30m |
| LED Number | 2 |
| LED Control | Auto / Manual |
| Smart Illumination | Supported |
Video & Image
| Item | Specifications |
|---|---|
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Profile | Baseline, Main, High Profile |
| Main Stream | 8MP, 5.3MP, 3.6MP, 1080P, 720P up to 30fps |
| Sub Stream | 1080P, 720P, D1, 640×360, 2CIF, CIF up to 30fps |
| Third Stream | D1, 640×360, 2CIF, CIF up to 30fps |
| Video Bit Rate | 128Kbps ~ 16Mbps |
| Video Stream | Triple Stream |
| U-Code | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 Areas |
| ROI | Up to 8 Areas |
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Noise Reduction | 2D/3D DNR |
| BLC / HLC | Supported |
| Digital Defog | Supported |
| Smart Illumination | Supported |
Intelligent Functions
| Function | Specifications |
|---|---|
| Smart Intrusion Prevention | Cross Line, Intrusion, Enter Area, Leave Area Detection |
| Target Classification | Human, Motor Vehicle and Non-Motor Vehicle |
| False Alarm Filtering | Supported |
| People Counting | People Flow Counting and Crowd Density Monitoring |
| Face Capture | Supported |
| Motion Detection | Supported |
| Ultra Motion Detection | Supported |
| Tampering Detection | Supported |
| Audio Detection | Supported |
Audio
| Item | Specifications |
|---|---|
| Audio Compression | G.711 |
| Audio Bit Rate | 64Kbps |
| Sampling Rate | 8kHz |
| Two-Way Audio | Supported |
| Audio Suppression | Supported |
| Audio Input | 1 |
| Audio Output | 1 |
Storage
| Item | Specifications |
|---|---|
| MicroSD | Up to 512GB |
| Network Storage | ANR, NAS (NFS) |
Network & Interface
| Item | Specifications |
|---|---|
| Network Interface | 1 × RJ45 10/100M Base-TX Ethernet |
| PoE | IEEE 802.3af |
| Network Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1X, SNMP, QoS, RTMP, SSL/TLS, SSH |
| ONVIF | Profile S, Profile G, Profile T |
| API / SDK | Supported |
| Users | Up to 32 Users |
| Client Software | EZStation, EZView, EZLive |
Alarm & I/O
| Item | Specifications |
|---|---|
| Alarm Input | 1 |
| Alarm Output | 1 |
| Audio Input | 1 |
| Audio Output | 1 |
Power & General
| Item | Specifications |
|---|---|
| Power Supply | DC 12V ±25%, PoE IEEE 802.3af |
| Power Consumption | Max. 11W |
| Protection | IP67, IK10 |
| Operating Temperature | -30°C ~ 60°C |
| Operating Humidity | ≤95% RH, Non-Condensing |
| Material | Metal |
Note: The IPC3638SE-ADF28(40)K-WL-I0 is available in two fixed-lens variants: ADF28 with a 2.8mm lens and ADF40 with a 4.0mm lens.
Important: The current Uniview product page lists MicroSD support up to 512GB, while earlier datasheets specify 256GB. The supported capacity may depend on hardware or firmware revision.
