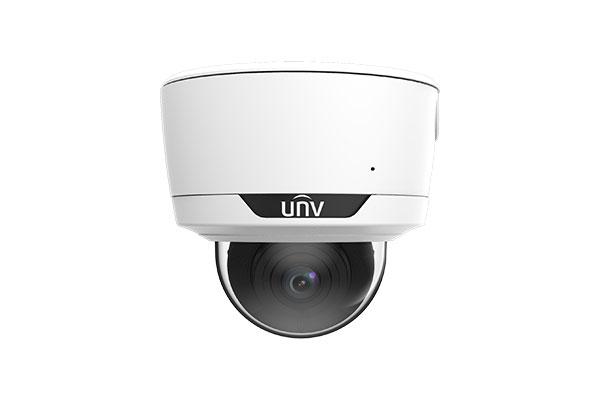

Specifications Uniview IPC3734SE-ADZK-I0
| Features | Specifications |
|---|---|
Camera |
|
| Camera Type | 4MP LightHunter WDR IR Network Dome Camera |
| Image Sensor | 1/1.8″ 4MP Progressive Scan CMOS |
| Maximum Resolution | 2688 × 1520 |
| Frame Rate | Up to 30 fps |
| Minimum Illumination | 0.0005 Lux (F1.2, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1–1/100000s |
| WDR | 120dB Optical WDR |
| S/N Ratio | >56dB |
Lens |
|
| Lens Type | Motorized Varifocal Lens with Automatic Focusing |
| Focal Length | 2.8–12mm |
| Aperture | F1.2 |
| Optical Zoom | 5× |
| Digital Zoom | 16× |
| Horizontal Field of View | 42.6°–113.7° |
| Vertical Field of View | 24.1°–59.0° |
| Adjustment Angle | Pan: 0°–355°, Tilt: 0°–75°, Rotate: 0°–355° |
DORI |
|
| Detect | 68.0–166.2m |
| Observe | 27.2–66.5m |
| Recognize | 13.6–33.2m |
| Identify | 6.8–16.6m |
Video |
|
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Streams | Triple streams |
| Main Stream | 4MP (2688 × 1520) up to 30 fps |
| Sub Stream | 1080P (1920 × 1080) up to 30 fps |
| Third Stream | D1 (720 × 576) up to 30 fps |
| Video Bit Rate | 128 Kbps–16 Mbps |
| U-Code | Supported |
| ROI | Supported |
| Privacy Mask | Up to 4 areas |
| OSD | Up to 10 OSDs |
Intelligent Functions |
|
| Smart Intrusion Prevention | Cross Line, Intrusion, Enter Area and Leave Area Detection |
| False Alarm Filtering | Human, non-motor vehicle and vehicle classification |
| People Counting | People flow counting and crowd density detection |
| Road Traffic | License plate image capture when vehicles pass tripwire, up to 4 lanes |
| Exception Detection | Object removed, object left behind, scene change and defocus detection |
| Motion Detection | Supported |
| Tampering Detection | Supported |
Image Enhancement |
|
| LightHunter | Supported for enhanced low-light image quality |
| Digital Noise Reduction | 2D/3D DNR |
| Backlight Compensation | BLC / HLC |
| Smart IR | Supported |
| IR Distance | Up to 40m |
| Defog | Digital Defog |
Audio |
|
| Audio Input/Output | 1 × Audio Input / 1 × Audio Output |
| Built-in Microphone | Supported |
| Two-way Audio | Supported |
| Audio Compression | G.711U, G.711A, AAC-LC |
Storage and Network |
|
| Edge Storage | MicroSD up to 512GB |
| Network Storage | ANR, NAS (NFS) |
| Network Interface | 1 × RJ45 10/100M Base-TX Ethernet |
| Protocols | IPv4, IPv6, TCP, UDP, DHCP, DNS, DDNS, RTSP, RTMP, SMTP, FTP, HTTP, HTTPS, NTP, SNMP, QoS, UPnP, 802.1X, SSH and more |
| Compatibility | ONVIF Profile S, G, T and M, API, SDK |
| Users | Up to 32 users with 3 user levels |
| Security | TLS 1.3, HTTPS encryption, password protection, strong password and authentication features |
| Client Software | EZStation, UNV-Link and UNV-Link Pro |
Alarm and Interfaces |
|
| Alarm Input | 2 channels |
| Alarm Output | 1 channel |
| Video Output | 1 × BNC for debugging |
| Reset Button | Supported |
Power and Environmental |
|
| Power Supply | DC 12V (±25%) or PoE IEEE 802.3af |
| Power Consumption | Max. 10W |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | ≤95% RH, non-condensing |
| Storage Temperature | -40°C to +70°C |
| Surge Protection | 6KV |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
Physical |
|
| Dimensions | Ø162 × 149mm |
| Weight | 1.5kg |
Note: The Uniview IPC3734SE-ADZK-I0 is a 4MP LightHunter WDR IR network dome camera featuring a 1/1.8-inch CMOS sensor and motorized 2.8–12mm varifocal lens with 5× optical zoom. It supports 2688 × 1520 resolution at up to 30fps, 120dB optical WDR, Ultra 265/H.265/H.264/MJPEG compression, and up to 40m IR illumination. Intelligent functions include smart intrusion prevention with human and vehicle classification, people counting, crowd density detection and road traffic license plate capture. The camera supports MicroSD storage up to 512GB, ONVIF, PoE IEEE 802.3af, IP67 weather protection and IK10 vandal resistance.
