| Features |
Description |
| Device Type |
2MP 20X IR Network PTZ Dome Camera |
| Image Sensor |
1/2.8″ Progressive Scan CMOS |
| Maximum Resolution |
1920 × 1080 |
| Optical Zoom |
20X |
| Digital Zoom |
16X |
| Focal Length |
5.2 ~ 104mm |
| WDR |
120dB True WDR |
| IR Range |
Up to 150m |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Smart Features |
Embedded Smart Algorithm |
| Storage |
MicroSD |
| Protection |
IP66 / IK10 |
| CAMERA |
| Image Sensor |
1/2.8″ 2.0 Megapixel Progressive Scan CMOS |
| Minimum Illumination |
Color: 0.001 Lux (F1.5, AGC ON), 0 Lux with IR |
| Day/Night |
IR-Cut Filter with Auto Switch (ICR) |
| Shutter |
Auto / Manual, 1/1 to 1/100000s |
| Iris |
Auto / Manual, F1.5 ~ F3.0 |
| WDR |
120dB True WDR |
| S/N |
>52dB |
| Digital Noise Reduction |
2D / 3D DNR |
| LENS |
| Focal Length |
5.2 ~ 104mm |
| Optical Zoom |
20X |
| Digital Zoom |
16X |
| Focus |
Auto / Manual |
| Angle of View |
H: 55.93° ~ 3.52° / V: 33.25° ~ 1.98° / D: 68.79° ~ 4.15° |
| DORI |
| Detect |
80.7m ~ 1613.8m |
| Observe |
32.3m ~ 645.5m |
| Recognize |
16.1m ~ 322.8m |
| Identify |
8.1m ~ 161.4m |
| VIDEO |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Main Stream |
1080P (1920 × 1080), Max 30fps |
| Sub Stream |
720P (1280 × 720), Max 30fps |
| Third Stream |
D1 (720 × 576), Max 25fps |
| Video Stream |
Triple Streams |
| Video Bit Rate |
128Kbps ~ 16Mbps |
| U-Code |
Supported |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
Up to 24 Areas |
| IMAGE |
| White Balance |
Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| HLC |
Supported |
| BLC |
Supported |
| Smart IR |
Supported |
| Defog |
Digital Defog |
| Heatwave Reduction |
Supported |
| PTZ |
| Pan Range |
360° Endless |
| Pan Speed |
0.1°/s ~ 240°/s |
| Tilt Range |
-15° ~ 90° (Auto Reverse) |
| Tilt Speed |
0.1°/s ~ 160°/s |
| Preset Speed |
Pan: 300°/s / Tilt: 240°/s |
| Preset |
1024 Presets |
| Patrol |
Up to 16 Patrols, Up to 32 Presets per Patrol |
| Pattern |
Up to 16 Patterns |
| Home Position |
Supported |
| SMART FEATURES |
| Embedded Smart Algorithm |
Supported |
| Motion Detection |
Supported |
| Privacy Mask |
Supported |
| ILLUMINATOR |
| IR Range |
Up to 150m |
| IR Technology |
Third-Generation Infrared Technology |
| IR Control |
Auto / Manual |
| STORAGE |
| Edge Storage |
MicroSD |
| NETWORK |
| Network Interface |
1 × RJ45 10/100Mbps Base-TX Ethernet |
| ONVIF |
Supported |
| Compatible Integration |
ONVIF / IMOS / API |
| Protocols |
L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, NTP, FTP, HTTP, SNMP, SIP |
| Video Output |
Not Specified |
| AUDIO & ALARM |
| Audio Input |
1 Input |
| Audio Output |
1 Output |
| Audio Compression |
G.711 |
| Two-Way Audio |
Supported |
| Alarm Input |
1 Channel |
| Alarm Output |
1 Channel |
| POWER & PROTECTION |
| Power Supply |
AC 24V ±25% / DC 24V ±25% / PoE |
| Maximum Power Consumption |
42W |
| Surge Protection |
6KV |
| Protection |
IP66 / IK10 |
| PHYSICAL & ENVIRONMENT |
| Dimensions |
Ø227 × 359.4mm |
| Weight |
5.28kg |
| Operating Temperature |
-40°C to 65°C |
| Storage Temperature |
Not Specified |
| Operating Humidity |
≤95% RH, Non-Condensing |
| Installation |
Outdoor / Indoor |

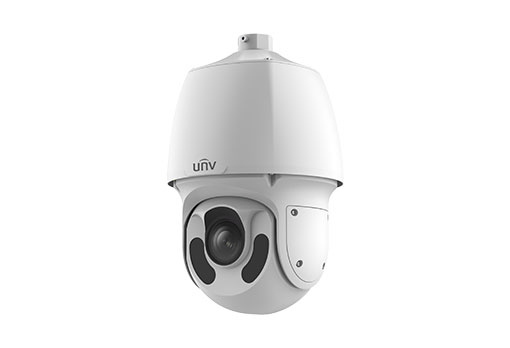

Note: The Uniview IPC6222ER-X20P-B is a 2MP 20X IR Network PTZ Dome Camera featuring a 1/2.8″ progressive scan CMOS sensor, 5.2~104mm motorized zoom lens, 20X optical zoom and 16X digital zoom. It supports 1920 × 1080 video at up to 30fps, Ultra 265/H.265/H.264/MJPEG compression, Smart IR up to 150m, triple streams, MicroSD storage, ONVIF integration and 120dB True WDR. The camera supports AC 24V, DC 24V and PoE power input.
Important: The IPC6222ER-X20P-B is a 2MP PTZ Dome Camera with 20X optical zoom and 16X digital zoom. The -P version supports PoE, while the camera also supports AC 24V / DC 24V. It features 120dB True WDR, Smart IR up to 150m, 360° endless pan, -15° to 90° tilt, 1 alarm input / 1 alarm output, 1 audio input / 1 audio output, 6KV surge protection and IP66 / IK10 protection. Maximum power consumption is 42W.
