| Features |
Description |
| Device Type |
5MP WDR Starlight IR Network Indoor MiniPTZ Dome Camera |
| Image Sensor |
1/2.7″ Progressive Scan CMOS |
| Maximum Resolution |
2880 × 1620 |
| Optical Zoom |
5X |
| Focal Length |
2.7 ~ 13.5mm |
| WDR |
120dB Optical WDR |
| IR Range |
Up to 30m |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Smart Features |
Smart Intrusion Prevention, Cross Line, Intrusion, Enter Area and Leave Area Detection |
| Wi-Fi |
Supported |
| Audio |
Built-in Microphone and Speaker, Two-Way Audio |
| Protection |
Indoor Use |
| CAMERA |
| Image Sensor |
1/2.7″, 5.0 Megapixel Progressive Scan CMOS |
| Minimum Illumination |
Color: 0.003 Lux (F1.2, AGC ON), 0 Lux with IR |
| Day/Night |
IR-Cut Filter with Auto Switch (ICR) |
| Shutter |
Auto / Manual, 1 ~ 1/100000s |
| WDR |
120dB |
| S/N |
>56dB |
| LENS |
| Lens Type |
2.7 ~ 13.5mm AF Automatic Focusing and Motorized Zoom Lens |
| Optical Zoom |
5X |
| Iris |
F1.2 |
| Horizontal Field of View |
104.9° ~ 30.6° |
| Vertical Field of View |
55.41° ~ 17.7° |
| Diagonal Field of View |
136.37° ~ 36.1° |
| DORI |
| Detect |
70.9m ~ 247.5m |
| Observe |
28.4m ~ 99.0m |
| Recognize |
14.2m ~ 49.5m |
| Identify |
7.1m ~ 24.8m |
| VIDEO |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Main Stream |
5MP (2880 × 1620), Max 30fps |
| Sub Stream |
720P (1280 × 720), Max 30fps |
| Third Stream |
D1 (720 × 576), Max 30fps |
| Video Bit Rate |
128Kbps ~ 16Mbps |
| Video Stream |
Triple Streams |
| U-Code |
Supported |
| ROI |
Supported |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
24 Areas, Up to 4 Areas per Scene |
| IMAGE |
| White Balance |
Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Digital Noise Reduction |
2D / 3D DNR |
| Smart IR |
Supported |
| HLC |
Supported |
| BLC |
Supported |
| Defog |
Digital Defog |
| PTZ |
| Pan Range |
350° |
| Pan Speed |
0.1°/s ~ 60°/s |
| Tilt Range |
0° ~ 90° |
| Tilt Speed |
0.1°/s ~ 50°/s |
| Presets |
256 |
| Home Position |
Supported |
| SMART FEATURES |
| Smart Intrusion Prevention |
Cross Line, Intrusion, Enter Area and Leave Area Detection |
| False Alarm Filtering |
Supported |
| Best Snapshot Selection |
Supported |
| LightHunter |
Supported |
| ILLUMINATOR |
| IR Range |
Up to 30m |
| IR Wavelength |
850nm |
| IR Control |
Auto / Manual |
| Smart IR |
Supported |
| AUDIO & ALARM |
| Audio Input |
Built-in Microphone |
| Audio Output |
Built-in Speaker |
| Two-Way Audio |
Supported |
| Alarm Input |
1 Channel |
| Alarm Output |
1 Channel |
| RS485 |
1 × RS485 |
| NETWORK & WI-FI |
| Network Interface |
1 × RJ45 10/100Mbps Base-TX Ethernet |
| Wi-Fi |
Supported |
| ONVIF |
Profile S / G / T |
| Compatible Integration |
ONVIF / API |
| Network Protocol |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP and SSL |
| STORAGE |
| Network Storage |
ANR / NAS (NFS) |
| POWER & GENERAL |
| Power Supply |
DC 12V ±25% / PoE+ (IEEE 802.3at) |
| Maximum Power Consumption |
15W |
| Dimensions |
Ø129 × 143.6mm |
| Weight |
0.76kg |
| Operating Temperature |
-10°C to 50°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
≤95% RH, Non-Condensing |

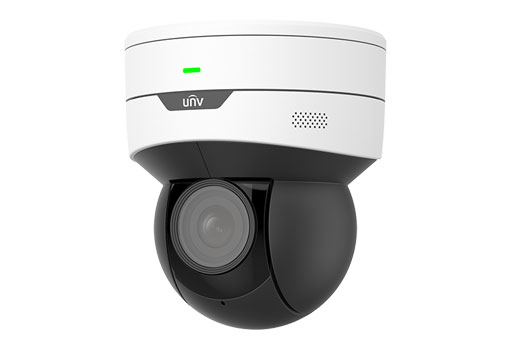

Note: The Uniview IPC6415SR-X5UPW-VG is a 5MP WDR Starlight IR Network Indoor MiniPTZ Dome Camera featuring a 1/2.7″ CMOS sensor, 2.7~13.5mm motorized zoom lens and 5X optical zoom. It supports 2880 × 1620 video at up to 30fps, 120dB optical WDR, LightHunter technology, Smart IR up to 30m, Smart Intrusion Prevention, built-in microphone and speaker, two-way audio, Wi-Fi and PoE+.
Important: The IPC6415SR-X5UPW-VG is an Indoor MiniPTZ Dome Camera with 5MP resolution, 5X optical zoom, Wi-Fi, 120dB Optical WDR and Smart IR up to 30m. It supports DC 12V / PoE+ (IEEE 802.3at), 1 alarm input / 1 alarm output, RS485 and built-in microphone and speaker. Maximum power consumption is 15W.
