| Features |
Description |
| Device Type |
4MP 40X LightHunter IR Network PTZ Dome Camera |
| Image Sensor |
1/1.8″ 4MP Progressive Scan CMOS |
| Maximum Resolution |
2688 × 1520 |
| Optical Zoom |
40X |
| Digital Zoom |
16X |
| IR Range |
Up to 250 m |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Smart Features |
Smart Intrusion Prevention, Face Detection, People Counting, Auto Tracking |
| Optical Interface |
SFP Optical Interface |
| Protection |
IP66 |
| CAMERA |
| Image Sensor |
1/1.8″ 4.0 Megapixel Progressive Scan CMOS |
| Minimum Illumination |
Color: 0.0005 Lux (F1.2, AGC ON), 0 Lux with IR |
| Day/Night |
IR-cut Filter with Auto Switch (ICR) |
| Shutter |
Auto / Manual, 1/1 to 1/100000s |
| WDR |
120dB |
| S/N |
>56dB |
| LENS |
| Lens Type |
5.7 ~ 228mm AF Automatic Focusing and Motorized Zoom Lens |
| Optical Zoom |
40X |
| Digital Zoom |
16X |
| Iris |
Auto, F1.2 ~ F4.6 |
| Field of View |
H: 59.5° ~ 2.2° / V: 35.6° ~ 1.2° / D: 73.1° ~ 2.6° |
| VIDEO |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Main Stream |
4MP (2688 × 1520), Max 30fps |
| Sub Stream |
2MP (1920 × 1080), Max 30fps |
| Third Stream |
D1 (720 × 576), Max 30fps |
| Video Bit Rate |
128Kbps ~ 16Mbps |
| Video Stream |
Triple Streams |
| ROI |
Up to 8 Areas |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
24 Areas, up to 4 Areas per Scene |
| IMAGE |
| Digital Noise Reduction |
2D / 3D DNR |
| WDR |
120dB |
| HLC |
Supported |
| BLC |
Supported |
| EIS |
Supported |
| Defog |
Digital Defog / Optical Defog |
| PTZ |
| Pan |
360° Endless |
| Tilt |
-15° ~ 90° |
| Preset |
Up to 500 Presets |
| Preset Accuracy |
±0.1° |
| Auto Tracking |
Supported |
| Patrol |
Supported |
| Pattern |
Supported |
| SMART FEATURES |
| Smart Intrusion Prevention |
Cross Line, Intrusion, Enter Area, Leave Area Detection |
| False Alarm Filtering |
Supported |
| Face Detection |
Supported |
| People Counting |
People Flow Counting / Crowd Density Monitoring |
| Best Snapshot Selection |
Supported |
| ILLUMINATOR |
| IR Range |
Up to 250m |
| Wavelength |
850nm |
| IR Control |
Auto / Manual |
| Smart IR |
Supported |
| NETWORK |
| Network Interface |
1 × RJ45 10/100Mbps Base-TX Ethernet |
| Optical Interface |
SFP Optical Interface |
| Optical / Electrical Connection |
Supports Serial Connection of Optical and Electrical Interface |
| Network Protocol |
TCP/IP, HTTP, HTTPS, FTP, SMTP, DHCP, DNS, DDNS, NTP, RTSP, RTP, RTCP, UPnP, SNMP |
| ONVIF |
Supported |
| INTERFACE |
| Audio I/O |
1 Input / 1 Output |
| Alarm I/O |
7 Inputs / 2 Outputs |
| Serial Port |
1 × RS485 |
| POWER & PROTECTION |
| Power Supply |
AC 24V ±25% / DC 24V ±25% |
| Protection |
IP66 |
| PHYSICAL & ENVIRONMENT |
| Operating Temperature |
-40°C to 70°C |
| Operating Humidity |
≤95% RH, Non-Condensing |

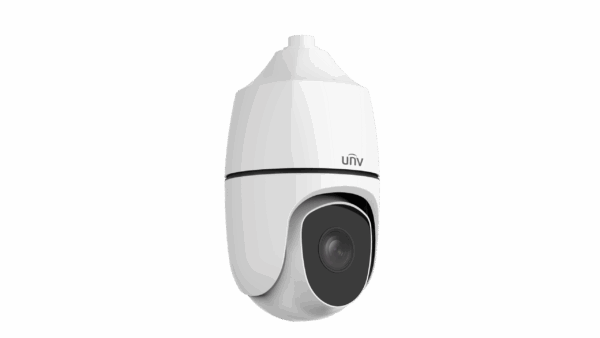

Note: The Uniview IPC6854ER-X40G-VF is a 4MP 40X LightHunter IR Network PTZ Dome Camera featuring a 1/1.8″ CMOS sensor, 5.7~228mm motorized zoom lens, 40X optical zoom, 16X digital zoom and Smart IR up to 250m. It supports 2688 × 1520 video at up to 30fps, Ultra 265/H.265/H.264/MJPEG compression, Smart Intrusion Prevention, people counting, face detection and auto tracking. The camera also supports an SFP optical interface for optical network connectivity. :contentReference[oaicite:1]{index=1}
Important: The IPC6854ER-X40G-VF is a PTZ Dome Camera with 4MP resolution and 40X optical zoom. It features LightHunter technology, 250m Smart IR, Smart Intrusion Prevention, People Counting, Face Detection and Auto Tracking. The -G version supports an SFP optical interface and serial connection between optical and electrical interfaces. It provides 7 alarm inputs / 2 alarm outputs, 1 audio input / 1 audio output, AC 24V/DC 24V power and IP66 protection.
