| Features |
Description |
| Device Type |

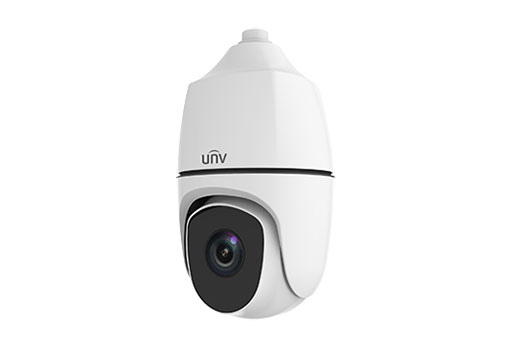

8MP 40X LightHunter IR Network PTZ Dome Camera |
| Image Sensor |
1/1.8″ 8MP Progressive Scan CMOS |
| Maximum Resolution |
3840 × 2160 |
| Optical Zoom |
40X |
| Digital Zoom |
16X |
| IR Range |
Up to 250 m |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Smart Functions |
Smart Intrusion Prevention, People Counting, Face Detection |
| Protection |
IP66 |
| Power |
AC 24V / DC 24V / PoE++ (IEEE 802.3bt) |
| CAMERA |
| Image Sensor |
1/1.8″ 8.0 Megapixel Progressive Scan CMOS |
| Minimum Illumination |
Color: 0.003 Lux (F1.2, AGC ON), 0 Lux with IR |
| Day/Night |
IR-cut Filter with Auto Switch (ICR) |
| Shutter |
Auto / Manual, 1/1 to 1/100000s |
| WDR |
DWDR |
| S/N |
>56dB |
| LENS |
| Focal Length |
5.7 ~ 228mm |
| Optical Zoom |
40X |
| Digital Zoom |
16X |
| Iris |
Auto, F1.2 ~ F4.6 |
| Field of View |
H: 59.5° ~ 2.2° / V: 35.6° ~ 1.2° / D: 73.1° ~ 2.6° |
| VIDEO |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Main Stream |
8MP (3840 × 2160), Max 30fps |
| Sub Stream |
2MP (1920 × 1080), Max 30fps |
| Third Stream |
D1 (720 × 576), Max 30fps |
| Video Bit Rate |
128Kbps ~ 16Mbps |
| Video Stream |
Triple Streams |
| ROI |
Up to 8 Areas |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
24 Areas, up to 4 Areas per Scene |
| IMAGE |
| Digital Noise Reduction |
2D / 3D DNR |
| HLC |
Supported |
| BLC |
Supported |
| EIS |
Supported |
| Defog |
Digital Defog / Optical Defog |
| Heatwave Reduction |
Supported |
| PTZ |
| Pan |
360° Endless |
| Tilt |
-15° ~ 90° |
| Preset |
Up to 500 Presets |
| Preset Accuracy |
±0.1° |
| Preset Speed |
Pan: 240°/s, Tilt: 240°/s |
| Patrol |
Supported |
| Pattern |
Supported |
| Auto Tracking |
Supported |
| SMART FEATURES |
| Smart Intrusion Prevention |
Cross Line, Intrusion, Enter Area, Leave Area Detection |
| False Alarm Filtering |
Supported |
| Face Detection |
Supported |
| People Counting |
People Flow Counting / Crowd Density Monitoring |
| Best Snapshot Selection |
Supported |
| ILLUMINATOR |
| IR Range |
Up to 250m |
| Wavelength |
850nm |
| IR Control |
Auto / Manual |
| Smart IR |
Supported |
| NETWORK |
| Network Interface |
1 × RJ45 10/100Mbps Base-TX Ethernet |
| Video Output |
Not Supported |
| Network Protocol |
TCP/IP, HTTP, HTTPS, FTP, SMTP, DHCP, DNS, DDNS, NTP, RTSP, RTP, RTCP, UPnP, SNMP |
| ONVIF |
Supported |
| INTERFACE |
| Audio I/O |
1 Input / 1 Output |
| Alarm I/O |
7 Inputs / 2 Outputs |
| Serial Port |
1 × RS485 |
| Built-in Microphone |
Not Supported |
| Built-in Speaker |
Not Supported |
| POWER & PROTECTION |
| Power Supply |
AC 24V ±25% / DC 24V ±25% / PoE++ (IEEE 802.3bt) |
| Maximum Power Consumption |
61W |
| Protection |
IP66 |
| PHYSICAL & ENVIRONMENT |
| Dimensions |
Ø270 × 497mm |
| Weight |
9.69kg |
| Operating Temperature |
-40°C to 70°C |
| Operating Humidity |
≤95% RH, Non-Condensing |
| Storage Temperature |
-40°C to 70°C |
Note: The Uniview IPC6858ER-X40-VF is an 8MP 40X LightHunter IR Network PTZ Dome Camera featuring a 1/1.8″ CMOS sensor, 5.7~228mm motorized zoom lens, 40X optical zoom, 16X digital zoom and Smart IR up to 250m. It supports 3840 × 2160 video at up to 30fps, Ultra 265/H.265/H.264/MJPEG compression, Smart Intrusion Prevention, people counting, face detection, auto tracking and IP66 protection. It supports AC 24V, DC 24V and PoE++ (IEEE 802.3bt) power.
Important: The IPC6858ER-X40-VF is a PTZ Dome Camera with 8MP resolution and 40X optical zoom. It provides 250m IR range, Smart Intrusion Prevention, People Counting, Face Detection and Auto Tracking. It supports PoE++ (IEEE 802.3bt) as well as AC/DC 24V power, with 7 alarm inputs / 2 alarm outputs, 1 audio input / 1 audio output and IP66 protection. Maximum power consumption is 61W.
