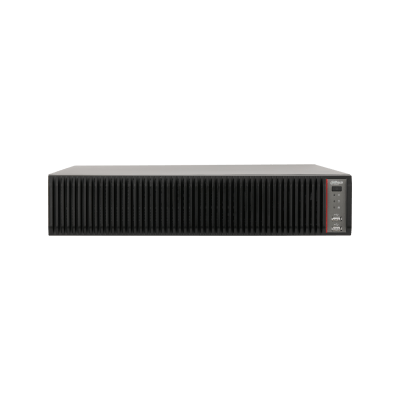

Dahua รุ่น IVSS7008

2U 8HDD Intelligent Video Surveillance Server

  • ระบบประมวลผล Industry embedded micro-controller
  • รองรับ Bandwidth สูงสุด 512 Mbps
  • ใส่กล้อง IP ได้สูงสุด 128 ตัว
  • ซัพพอร์ท RAID 0/1/5/6/10
  • มีช่อง HDMI 3 / VGA 2
หมวดหมู่: , , ,
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
System
Main Processor Industry embedded micro-controller
Operating System Embedded Linux OS
Operation Interface WEB (PCAPP), local GUI
AI Applications
AI by Camera Supports AI by camera function: Human face detection, human face recognition, video metadata (person/vehicle/non-motor vehicle), perimeter protection
Perimeter Protection
Perimeter Function (AI by Camera) 64-channel
Human Face Detection
Human Face Properties Supports 6 properties: Gender, age range (6-level), glasses, expression (8 types), mouth mask, and beard
Face Detection Performance (AI by Camera) (Channel Number) 64-channel
ANPR
Plate Database Capacity Max. 50 plate databases with 3 hundred thousand plate numbers in total
Supports black list/white list
Plate Detection Performance 32-channel
Video Metadata
Human Body Properties Top color, top type, bottom color, bottom type, cap, bag, age, gender, and umbrella
Vehicle Properties Supports 9 properties: Plate, plate color, vehicle body, vehicle brand, driver calling, seatbelt status, decoration object in the vehicle, and vehicle registration place
Non-motor Vehicle Properties Supports 4 properties: Vehicle type, vehicle color, people amount, and helmet
Metadata Performance (AI by Device) (1080P) (Channel Number) N/A
Metadata Performance (AI by Camera) (Channel Number) 32-channel
Video Parameters
Remote Connection 128
Network Bandwidth Incoming bandwidth: 512Mbps
Recording bandwidth: 400Mbps
Outgoing bandwidth: 512Mbps
Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/CIF/QCIF
Decoding Capability 5-channel 12MP (20fps)/6-channel 12MP (15fps)/5-channel 8MP (30fps)/10-channel 8MP (15fps)/6-channel 6MP(30fps)/8-channel 5MP(30fps)/9-channel 5MP (25fps)/10-channel 4MP (30fps)/15-channel 4MP (20fps)/16-channel 3MP (25fps)/10-channel 1080P (60fps)/20-channel 1080P (30fps)/30-channel 720P (30fps)
Video Output 2-channel VGA output, 3-channel HDMI output, VGA 1/HDMI 1 outputs the same video source. VGA2/HDMI2 outputs the same video source. Supports 4K output
Multi-screen Display Customized display. Max. 36-channel local live view. Max.16-channel PCAPP live view
Third-party Support Onvif, RTSP, Sony, Panasonic, Axis, Arecont, Pelco,Canon, Samsung
Compression
Video Compression Smart H.265+/Smart H.264+/H.265/H.264
Audio Compression G.711A/G.711U/PCM/G726
Network
Protocol HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
Mobile Phone DMSS
Interoperability ONVIF(Profile S, T and G), CGI, SDK
Browser Chrome, PCAPP, IE9 or higher, Firefox
Network Mode NIC binding mode such as multiple-address mode, load balance, fault-tolerance, etc
Record Playback
Multiple-channel Playback Max. 16-channel playback
Record Search Search video detection/manual record/IO alarm/intelligent event/all record file
Storage Medium Internal HDD
Backup Method HDD, peripheral USB storage device
Playback Function 1. Play/pause/stop/fast forward/fast backward/reverse play/frame by frame play.

2. Full-screen, backup (clip/file), snapshot, digital zoom, audio on/off
Storage
HDD Group 8
RAID RAID0/1/5/6/10
Storage Pool N/A
Alarm
General Alarm Motion detect, tampering, local alarm
Anomaly Alarm IPC offline alarm, storage error, HDD full, IP conflict, MAC conflict, login lock, fan malfunction
Intelligent Alarm Human face detection, human face recognition, video metadata (person/vehicle/non-motor vehicle),perimeter protection (intrusion, tripwire),plate recognition
Alarm Linkage Record, picture storage (full image), local external alarm output, IPC external alarm output, access & control, audio prompt, buzzer, log, preset, email
Peripheral Interface
Audio Input 1-channel, RCA port (reserved)
Audio Output 2-channel, RCA port (reserved), speaker output, audio linkage output
Alarm Input 16-channel
Alarm Output 8-channel
Internal HDD 8 slots, SATA3.0. Max.10T/HDD
eSATA 1 port
SAS N/A
RS-232 1 port, for debug or transparent COM data
RS-485 1 port, control peripheral PTZ and so on. Supports various protocols
USB 4 ports. 2 USB2.0 port at the front panel and 2 USB3.0 port a the rear panel
HDMI 3 ports; support 4K output
VGA 2 ports
Network 4 RJ-45 10/100/1000Mbps self-adaptive Ethernet ports
Power 1 port
PoE N/A
General Parameters
Power Supply 100V AC–240V AC 50±2%Hz
Power Consumption 40W (Without HDD, idling)
Net Weight 8.55 Kg (18.85 lb)
Gross Weight 10.9 Kg (24.03 lb)
Dimensions Chassis: 439.7 mm × 446.2 mm × 89 mm

(17.31 ” × 17.57 ” × 3.50 “)
Max. size: 481.7 mm (with hanger) × 446.2 mm × 90.8
mm (with feet mat) (18.96 ” × 17.57 ” × 3.57 “)
Packaging Dimensions With Packaging: 562 mm × 599 mm × 235 mm

(22.13 ” × 23.58 ” × 9.25 “)
Protection box: 491 mm × 584 mm × 631 mm

(19.33 ” × 22.99 ” × 24.84 “)
Operating Temperature 0 °C to +45 °C (+32 °F to +113 °F)/10%RH–90% RH
Storage Temperature 0 °C to +40 °C (+32 °F to +104 °F)/30%RH–85% RH
Operating Humidity 10%–90%
Storage Humidity 30%–85%
Operating Altitude 5000 m (16404.20 ft)
Installation Mode Desktop/rack
Certifications CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
FCC: Part 15 Subpart B
UL 60950-1
