| Features |
Specifications |
| Product Type |

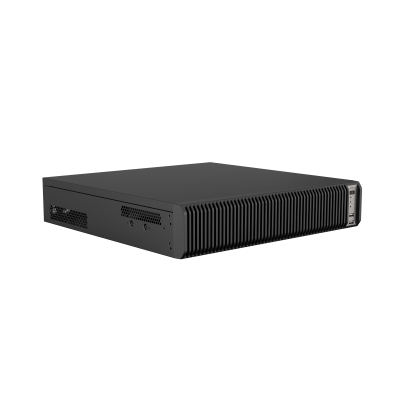

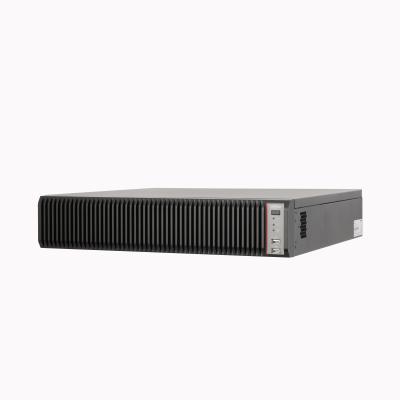

2U 8-HDD WizMind Intelligent Video Surveillance Server |
| Processor |
Industry Embedded Micro-controller |
| Operating System |
Embedded Linux OS |
| IP Video Access |
Up to 128 Channels |
| Incoming Bandwidth |
400 Mbps |
| Recording Bandwidth |
320 Mbps |
| Outgoing Bandwidth |
96 Mbps |
| Remote Connection |
128 Channels |
Video & Decoding
| Item |
Specifications |
| Supported Resolution |
32MP, 24MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, CIF, QCIF |
| Decoding Capability |
1×32MP, 1×24MP, 2×16MP, 5×12MP (20fps), 6×12MP (15fps), 5×8MP (30fps), 10×8MP (15fps), 6×6MP (30fps), 8×5MP (30fps), 9×5MP (25fps), 10×4MP (30fps), 15×4MP (20fps), 16×3MP (25fps), 10×1080p (60fps), 20×1080p (30fps), 30×720p (30fps) |
| Video Output |
4×HDMI, 1×VGA |
| HDMI Resolution |
Up to 4K |
| Multi-screen Display |
1st Screen: Up to 64 channels; 2nd Screen: Up to 16 channels; 3rd/4th Screen: 1 channel each |
| Third-party Support |
ONVIF, RTSP, Sony, Panasonic, Axis, Arecont, Pelco, Canon, Samsung |
AI & Intelligent Functions
| Function |
Specifications |
| AI by Camera |
Face Detection, Face Recognition, Video Metadata, IVS, People Counting, Smoking Detection, Call Detection |
| AI by Device |
Face Detection, Face Recognition, Video Metadata, IVS, Plate Comparison |
| IVS Performance |
24-channel 2MP or 16-channel 4MP by Device; 64-channel by Camera |
| IVS Functions |
Tripwire, Intrusion, Abandoned Object, Missing Object, Fast Moving, Parking Detection, Crowd Gathering, Loitering and Fence Crossing |
| Face Detection |
24-channel 2MP or 16-channel 4MP by Device; up to 80-channel by Camera |
| Face Recognition |
24-channel 2MP or 16-channel 4MP by Device; up to 80-channel by Camera |
| Face Database |
Up to 50 databases with 500,000 face pictures in total |
| Face Attributes |
Gender, Age, Glasses, Expression, Mouth Mask and Beard |
| ANPR |
Supported |
| Plate Database |
Up to 50 databases with 500,000 plate numbers; Allowlist and Blocklist |
| Plate Detection |
Up to 32 channels with ITC Camera |
| Video Metadata |
Human, Vehicle and Non-motorized Vehicle Analysis |
Storage & RAID
| Item |
Specifications |
| HDD Bays |
8 SATA 3.0 HDD Slots |
| Maximum HDD Capacity |
Up to 16TB per HDD |
| Maximum Storage |
Up to 128TB |
| HDD Groups |
8 |
| RAID |
RAID 0, 1, 5, 6, 10, 50, 60 |
| eSATA |
1 Port |
Alarm & Intelligent Alarm
| Item |
Specifications |
| Alarm Input |
16 Channels |
| Alarm Output |
8 Channels |
| General Alarm |
Motion Detection, Tampering, Local Alarm |
| Anomaly Alarm |
IPC Offline, Storage Error, HDD Full, IP Conflict, MAC Conflict, Login Lock, AI Module Temperature, AI Module Offline, Fan Malfunction |
| Intelligent Alarm |
Face Detection, Face Recognition, Video Metadata, IVS, Plate Recognition, People Counting, Smoking and Call Detection |
| Alarm Linkage |
Recording, Snapshot, Alarm Output, Access Control, Audio Prompt, Buzzer, Log, Preset and Email |
Interface
| Item |
Specifications |
| Network |
4×RJ-45 10/100/1000 Mbps Self-adaptive Ethernet Ports |
| HDMI |
4 Ports, Supports 4K Output |
| VGA |
1 Port |
| USB |
2×USB 2.0 Front, 2×USB 3.0 Rear |
| Audio Input |
1×RCA, Reserved |
| Audio Output |
2×RCA, Speaker Output and Audio Linkage Output |
| RS-232 |
1 Port for Debug or Transparent COM Data |
| RS-485 |
1 Port for PTZ and Peripheral Control |
| PoE |
Not Supported |
Power & General
| Item |
Specifications |
| Power Supply |
100V AC ~ 240V AC, 50/60Hz |
| Power Consumption |
38W Without HDD (Idle); 105W With All HDDs Connected |
| Operating Temperature |
0°C ~ +45°C |
| Operating Humidity |
10% ~ 90% RH |
| Storage Temperature |
-20°C ~ +70°C |
| Operating Altitude |
Up to 5000m |
| Installation |
Desktop / Rack |
| Dimensions |
439.7 × 446.2 × 89.0mm (Chassis) |
| Weight |
7.66kg Net / 10.24kg Gross |
Note: The IVSS7108-2M is a high-performance WizMind Intelligent Video Surveillance Server designed for large-scale video surveillance, AI analytics, face recognition, ANPR and video metadata applications.
Important: The IVSS7108-2M is currently listed by Dahua as an EOL/Discontinued product. Specifications are based on the available Dahua datasheet and product documentation.
