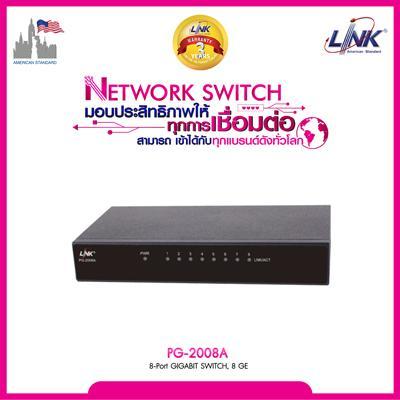

Specifications LINK PG-2008A
| Features | Description |
|---|---|
| Product Type | 8-Port Gigabit Switch |
| Switch Type | Layer 2 Unmanaged Switch |
| Ports | 8 × 10/100/1000Base-T RJ45 |
| Switching Capacity | 16 Gbps |
| Forwarding Rate | 11.90 Mpps |
| MAC Address | 4K |
| Packet Buffer Memory | 1.5 Mbits |
| Jumbo Frame | 9 KBytes |
| Transmission Method | Store and Forward |
| Network Features | Auto Negotiation, Auto MDI/MDI-X, IEEE 802.3x Flow Control |
| Energy Saving | IEEE 802.3az Energy-Efficient Ethernet |
| Power Adapter | Input: 100–240 VAC, 50/60 Hz; Output: 5 VDC / 1 A |
| Dimensions | 154 × 26 × 84 mm |
| Operating Temperature | 0–40°C |
| Operating Humidity | 10–95% RH, Non-Condensing |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az |
| Certification | FCC Part 15 Class A, EN55032 Class A, EN55035, LVD EN62368-1, RoHS |
| Application | Description |
|---|---|
| LAN Network | Suitable for connecting computers, printers, routers, access points and other Ethernet devices. |
| Small Business | Designed for small workgroups and SMB network applications. |
| Office Network | Suitable for expanding wired network connections in offices and workspaces. |
| Network Infrastructure | Suitable for Gigabit Ethernet network installations requiring simple Plug & Play operation. |
Note: The LINK PG-2008A is an 8-Port Gigabit Unmanaged Switch equipped with 8 × 10/100/1000Base-T RJ45 ports. It provides a 16 Gbps switching capacity and supports Auto Negotiation, Auto MDI/MDI-X and IEEE 802.3x Flow Control.
Important: The PG-2008A is a Layer 2 unmanaged switch designed for Plug & Play Gigabit Ethernet networking. No software configuration is required for normal operation.
