Specifications LINK TX-1302A
| Features | Description |
|---|---|
| Product Type | UTP Cable Quick Smart Tester |
| Model | TX-1302A |
| Application | RJ45 Network Cable Testing |
| Cable Type | UTP / STP LAN Cable |
| Connector | RJ45 |
| Testing Mode | Auto / Step |
| Display | LED Indicator |
| Power Supply | 9VDC Battery |
| TESTING | |
|---|---|
| Test Function | RJ45 Cable Continuity and Wiring Test |
| Open Detection | Supported |
| Short Detection | Supported |
| Cross / Miswire Detection | Supported |
| Testing Mode | Automatic Scanning / Step-by-Step Testing |
| INTERFACE | |
|---|---|
| Connector Type | RJ45 |
| Cable Support | LAN Cable |
| Supported Cable | UTP / STP |
| INDICATOR | |
|---|---|
| LED Indicator | Supported |
| Audio Alert | Beep Sound |
| Low Battery Indicator | Supported |
| Auto Power Off | Supported |
| POWER | |
|---|---|
| Power Source | 9VDC Battery |
| Battery Type | 9V Battery |
| PHYSICAL & ENVIRONMENT | |
|---|---|
| Master Dimensions | 90(L) × 59(W) × 25(H) mm |
| Remote Dimensions | 59(L) × 25(W) × 25(H) mm |
| Operating Temperature | 0°C ~ 50°C |
| Storage Temperature | -10°C ~ 60°C |
| STANDARDS | |
|---|---|
| Compliance | RoHS Compliant |

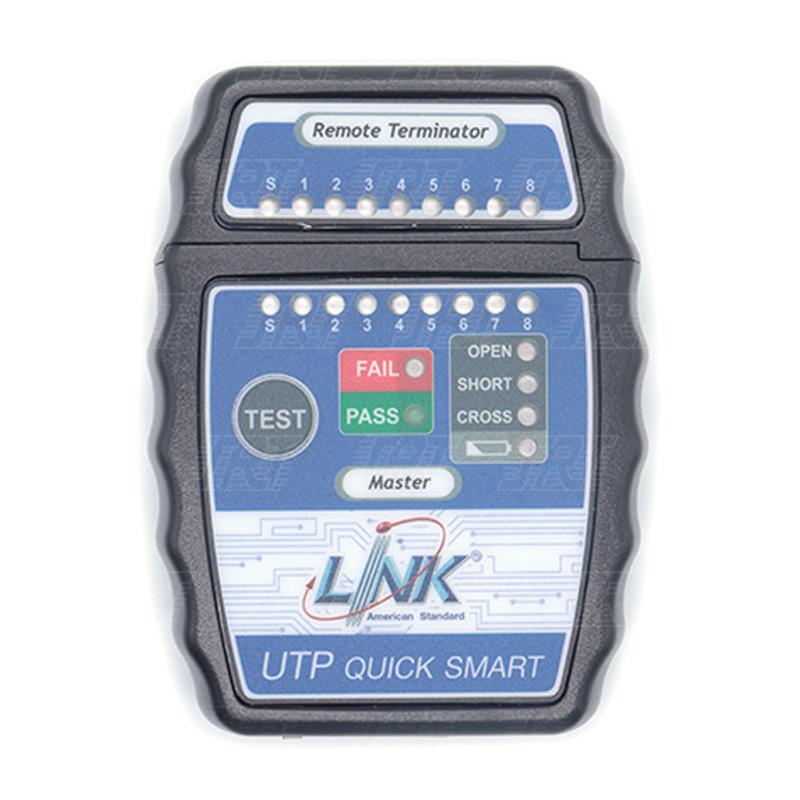

Note: LINK TX-1302A is a compact UTP Cable Quick Smart Tester designed to check RJ45 cable connections and identify common wiring faults such as open, short and cross connections.
Important: The tester is intended for cable connection and wiring verification. Always disconnect network equipment from the cable before performing cable tests.
