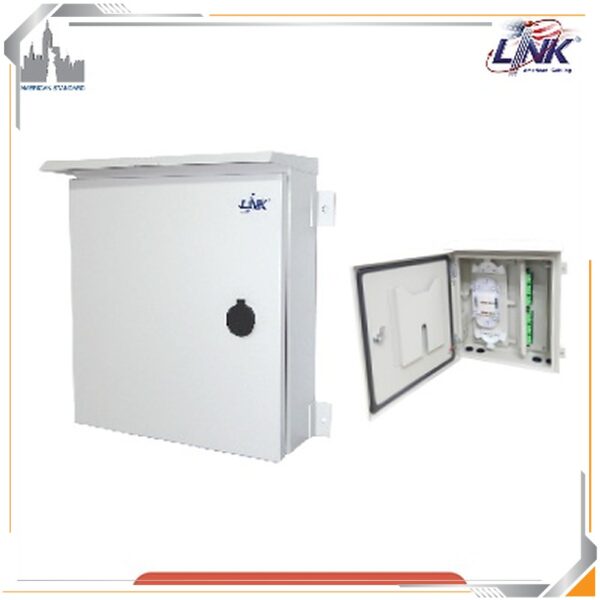

Specifications LINK UF-4112A
| Features | Description |
|---|---|
| Product Type | Fiber Optic Outdoor Terminal Steel Cabinet |
| Model | UF-4112A |
| Fiber Capacity | Up to 24 Fibers (12–24F) |
| Splice Tray | 1 Splice Tray |
| Snap-In Plate Capacity | 2 Snap-In Plates |
| Adapter Support | ST, SC, FC and LC Snap-In Adapter Plates |
| Design | Unload Snap-In Adapter, fully enclosed cabinet |
| Material | Aluminum body, cold-rolled steel inner plate and aluminum I-frame |
| Installation | Wall Mount and Pole Mount |
| Protection Rating | IP65 |
| Security | Security locking system |
| Dimensions | H 350 × W 403.5 × D 180 mm |
| Color | Light Gray |
| Application | Description |
|---|---|
| Fiber Termination | Provides a secure point for fiber optic termination, splicing and distribution. |
| FTTx Network | Suitable for FTTH, FTTx and outdoor fiber optic distribution networks. |
| Outdoor Installation | Designed for outdoor environments with IP65 protection. |
Note: UF-4112A is a compact outdoor fiber optic terminal cabinet designed for fiber termination, splicing and distribution with a capacity of up to 24 fibers.
Important: The cabinet is supplied in an Unload configuration; Snap-In Adapter Plates are selected and installed according to the required connector type.
