LINK UFC5304
LINK UFC5304

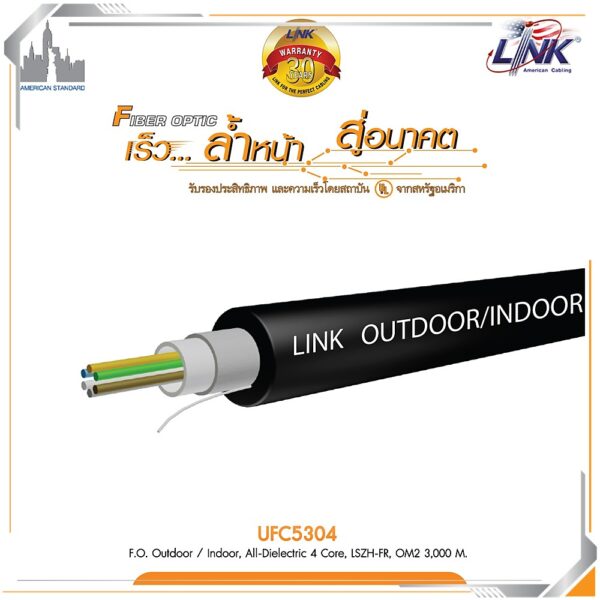

4 Core OM2 Outdoor/Indoor All-Dielectric Fiber Optic Cable
- 4 Core OM2 50/125μm Multimode fiber optic cable
- All-Dielectric single loose tube design for indoor and outdoor installation
- LSZH-FR jacket with UV-resistant outer sheath for enhanced safety and durability
- Water-blocking E-glass yarn provides moisture protection and tensile strength
- Suitable for backbone, FTTx, CATV, CCTV and high-speed Ethernet networks
- Complies with ANSI/TIA-568.3, IEC 60794, ITU-T G.651 and RoHS standards
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specifications LINK UFC5304
| Features | Description |
|---|---|
| Device Type | Outdoor/Indoor All-Dielectric Fiber Optic Cable |
| Fiber Type | OM2 Multimode 50/125 μm |
| Core Count | 4 Core |
| Cable Construction | Single Loose Tube, All-Dielectric |
| Water Blocking | Waterproof Gel Filled Tube with Water Blocking E-Glass Yarn |
| Strength Member | Water Blocking E-Glass Yarn (Non-Metallic) |
| Outer Jacket | UV-Resistant FR-LSZH (Low Smoke Zero Halogen) |
| Jacket Color | Black |
| Cable Length | 4,000 Meters / Drum |
| Application | Campus Backbone, Building Backbone, Indoor/Outdoor Duct, Lash Aerial, FTTx, CATV, CCTV and Enterprise Networks |
| Cable Standard | ANSI/TIA-568.3-D, ISO/IEC 11801:2017 |
|---|---|
| Fiber Standard | ITU-T G.651 OM2 Multimode |
| Core Size | 50/125 μm |
| Number of Fibers | 4 Core |
| Fiber Construction | Single Loose Tube with Waterproof Gel Filling |
| Strength Member | Water Blocking E-Glass Yarn |
| Rip Cord | Included |
| Outer Jacket | UV-Resistant FR-LSZH |
| Cable Diameter | Approximately 7.2 ± 0.5 mm |
| Cable Weight | Approximately 53 ± 5 kg/km |
| SMART FEATURES | |
|---|---|
| All-Dielectric Design | Non-Metallic Construction Eliminates Electrical Conductivity and Grounding Requirements |
| Indoor & Outdoor Installation | Suitable for Duct and Lash Aerial Applications in Campus and Building Backbone Networks |
| Water Blocking Protection | Gel-Filled Loose Tube and E-Glass Yarn Prevent Moisture Penetration |
| LSZH Flame Retardant Jacket | Provides Low Smoke and Zero Halogen Performance for Safer Indoor Installations |
| High-Speed Optical Transmission | Supports Gigabit Ethernet, 10G Ethernet, Fiber Channel, FTTx, CATV and CCTV Networks |
| GENERAL | |
|---|---|
| Cable Type | Outdoor/Indoor All-Dielectric Single Loose Tube Fiber Optic Cable |
| Maximum Tensile Load | 1,800 N (Installation) / 900 N (Operation) |
| Maximum Crush Resistance | 1,500 N / 10 cm |
| Minimum Bend Radius | 15 × Cable Diameter (Installation), 10 × Cable Diameter (Operation) |
| Installation / Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +75°C |
| Standards Compliance | ANSI/TIA-568.3-D, ANSI/TIA-568-C.3, ISO/IEC 11801:2017, IEC 60793, IEC 60794-1-2, IEC 60332-1-2, IEC 61034-2, IEC 60754-2, Telcordia GR-20-CORE, GR-409-CORE, TIS 2165, RoHS |
| Packaging | 4,000m Drum |
| Warranty | 30 Years |
Note: The LINK UFC5304 is a 4-core OM2 50/125 μm multimode fiber optic cable designed for both outdoor and indoor installations. Its all-dielectric construction, gel-filled single loose tube, water-blocking E-glass yarn, and UV-resistant FR-LSZH jacket provide reliable optical transmission while protecting the cable against moisture, UV exposure, and fire hazards.
Important: The LINK UFC5304 supports Gigabit Ethernet, IEEE 802.3ae 10 Gigabit Ethernet, Fiber Channel, ATM, FDDI, FTTx, CATV, CCTV, and campus backbone applications. Its non-metallic all-dielectric design eliminates grounding requirements and provides excellent immunity to electromagnetic interference, making it suitable for duct and aerial installations between buildings.
จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ้อมกล้องวงจรปิด พัทยา ชลบุรี
Datasheet
