| Features |
Description |
| Product Type |
Outdoor / Indoor Drop Wire Fiber Optic Cable |
| Fiber Type |
OM2 50/125 µm Multi-Mode |
| Fiber Core |
6 Core |
| Cable Construction |
Drop Wire with Integrated Messenger Wire |
| Messenger Wire |
1.2 mm Galvanized Steel Wire |
| Jacket |
UV-Resistant Flame-Retardant Black PE with LSZH Outer Jacket |
| Jacket Type |
LSZH-FR |
| Installation |
Indoor / Outdoor / Aerial |
| Fiber Standard |
ITU-T G.651 |
| Length |
4,000 m / Drum |
| Weight |
53 kg/km |
| Warranty |
30 Years |
| Application |
Backbone / Inter-Building / CCTV / Enterprise Network |
| FIBER OPTIC SPECIFICATION |
| Fiber Type |
OM2 Multi-Mode |
| Core / Cladding |
50/125 µm |
| Number of Fibers |
6 Core |
| Fiber Standard |
ITU-T G.651 |
| CABLE CONSTRUCTION |
| Cable Type |
Outdoor / Indoor Drop Wire |
| Messenger Wire |
1.2 mm Galvanized Steel Wire |
| Jacket |
UV-Resistant Flame-Retardant Black PE with LSZH Outer Jacket |
| Support Design |
Integrated Messenger Wire for Aerial Installation |
| STANDARDS & COMPLIANCE |
| Fiber Standard |
ITU-T G.651 |
| ANSI/TIA |
ANSI/TIA-568-B.3 / ANSI/TIA-568-C.3 |
| ISO/IEC |
ISO/IEC 11801 |
| Telcordia |
GR-20-CORE / GR-409-CORE |
| IEC |
IEC 60332 / IEC 61034 / IEC 60754 / IEC 60793 / IEC 60794 |
| Compliance |
RoHS |
| APPLICATION |
| Network Backbone |
Fiber Optic Backbone |
| Inter-Building |
Building-to-Building Connectivity |
| Aerial Installation |
Pole / Building Facade / Building Entrance |
| Other Applications |
CCTV / Ethernet / Enterprise Network |

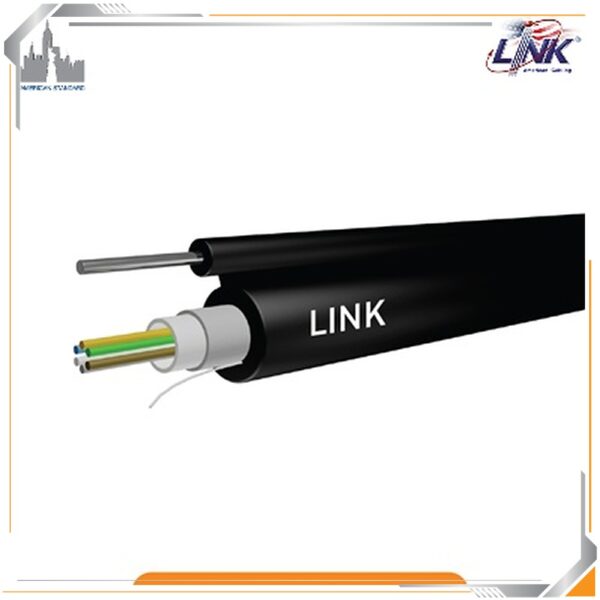

Note: The LINK UFC5506OI is a 6-core OM2 50/125 µm Multi-Mode Fiber Optic Drop Wire Cable designed for indoor and outdoor installation. It features an integrated 1.2 mm galvanized steel messenger wire for aerial installation and an LSZH-FR jacket for flame-retardant, low-smoke and zero-halogen protection. It is suitable for fiber backbone, inter-building, CCTV and enterprise network applications.
