LINK UFC5512OI

LINK UFC5512OI

LINK UFC5512OI

LINK UFC5512OI

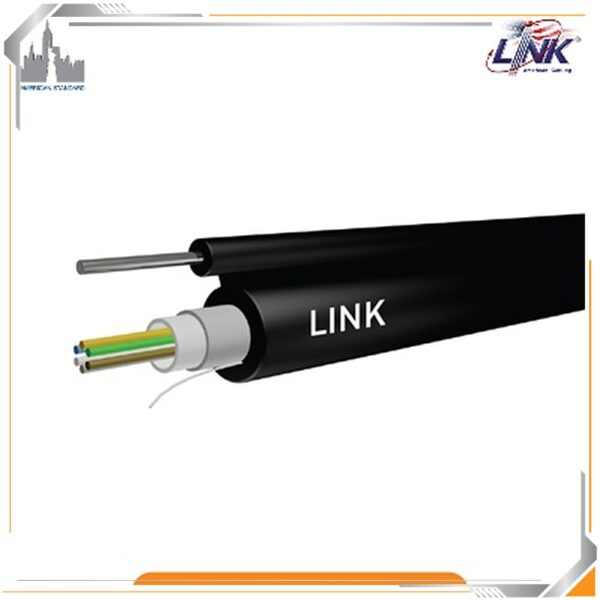

12 Core OM2 Outdoor/Indoor Drop Wire Fiber Optic Cable

  • 12 Core OM2 50/125μm Multimode fiber optic cable with built-in messenger wire
  • Outdoor/Indoor Drop Wire design with LSZH-FR jacket for safety and durability
  • Supports aerial installation on poles and building facades without additional support wire
  • Uses 1.2mm galvanized steel messenger wire for strength and easy installation
  • Complies with IEC 60794, ITU-T G.651 and fiber optic cabling standards
  • Ideal for backbone networks, inter-building connections and outdoor fiber deployments
หมวดหมู่: , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

Specifications LINK UFC5512OI

Features Description
Device Type Outdoor / Indoor Drop Wire Fiber Optic Cable
Fiber Type OM2 50/125μm Multi-Mode Fiber
Core Count 12 Core
Cable Construction Drop Wire with Integrated Messenger Wire
Jacket Material LSZH-FR (Low Smoke Zero Halogen – Flame Retardant)
Installation Indoor / Outdoor, Aerial Pole and Building Entrance Installation
Support Wire 1.2mm Solid Galvanized Steel Messenger Wire
Flame Protection LSZH-FR Jacket Provides Flame Retardant and Low Smoke Performance
Cable Length 4,000 Meters per Drum (Available by Meter)
Application Fiber Backbone, CCTV, Enterprise Network, Building Link and Short Distance High-Speed Network
Fiber Standard ITU-T G.651 OM2 Multi-Mode
Fiber Diameter 50/125μm
Fiber Type Multi-Mode Fiber (MMF)
Cable Type Outdoor / Indoor Drop Wire
Messenger Wire 1.2mm Galvanized Steel Wire
Jacket Type LSZH-FR (Low Smoke Zero Halogen – Flame Retardant)
Installation Type Indoor / Outdoor, Aerial Drop and Building Entrance
Standards ANSI/TIA-568.3, ANSI/ICEA 696, Telcordia GR-20-CORE, GR-409-CORE, ITU-T G.651, ISO/IEC 11801, IEC 60793, IEC 60794, IEC 60332, IEC 61034, IEC 60754, EN 50173-1, TIS 2165, RoHS
Application Gigabit Ethernet, Fiber Channel, CCTV, FTTx, Enterprise Network and Telecommunication System
SMART FEATURES
Drop Wire Design Integrated Messenger Wire Allows Simple Aerial Installation Without Additional Support Cable
OM2 Multi-Mode Fiber Supports High-Speed Data Transmission for Short to Medium Distance Network Applications
LSZH-FR Jacket Provides Flame Retardant Performance with Low Smoke and Zero Halogen Emission
Outdoor / Indoor Support Suitable for External Aerial Routes and Indoor Building Connections
High Fiber Capacity 12 Fiber Cores for Flexible Network Expansion and Backbone Applications
GENERAL
Fiber Count 12 Core
Core / Cladding Size 50/125μm Multi-Mode Fiber
Cable Diameter Approximately 5.0 × 2.0mm
Messenger Wire Diameter 1.2mm
Cable Weight Approximately 53kg/km
Installation Temperature -20°C to +60°C
Operating Temperature -40°C to +70°C
Packing 4,000m per Drum
Warranty 30 Years

Note: The LINK UFC5512OI is a 12-core OM2 50/125μm multimode outdoor/indoor drop wire fiber optic cable featuring LSZH-FR flame-retardant jacket and integrated 1.2mm galvanized steel messenger wire. It is designed for aerial installation, building entrance, CCTV, enterprise network, and fiber backbone applications requiring reliable short to medium distance high-speed transmission.

Important: The LINK UFC5512OI provides 12-core OM2 multimode fiber connectivity with outdoor/indoor drop wire construction, LSZH-FR protection, and self-support aerial installation capability. It is suitable for Gigabit Ethernet, Fiber Channel, CCTV, FTTx, and enterprise fiber infrastructure where durable and easy-to-install fiber cabling is required.
