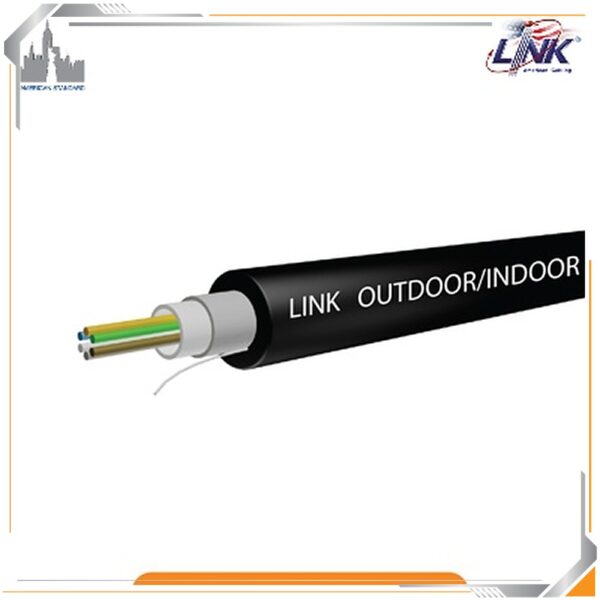

LINK UFC9306
LINK UFC9306
6 Core OS2 Outdoor/Indoor All-Dielectric Fiber Optic Cable
- 6 Core OS2 9/125μm Singlemode fiber optic cable
- All-Dielectric single loose tube design for indoor and outdoor installation
- LSZH-FR jacket with UV-resistant outer sheath for enhanced safety and durability
- Water-blocking E-glass yarn provides moisture protection and tensile strength
- Suitable for backbone, FTTx, CATV, CCTV and high-speed Ethernet networks
- Complies with ANSI/TIA-568.3-E, IEC 60794, ITU-T G.652.D and RoHS standards
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specifications LINK UFC9306
| Features | Description |
|---|---|
| Device Type | Outdoor/Indoor All-Dielectric Fiber Optic Cable |
| Fiber Type | OS2 Singlemode 9/125 μm |
| Core Count | 6 Core |
| Cable Construction | Single Loose Tube, All-Dielectric |
| Water Blocking | Waterproof Gel Filled Tube with Water Blocking Glass Yarn |
| Strength Member | E-Glass Yarn (Non-Metallic) |
| Outer Jacket | UV-Resistant FR-LSZH (Low Smoke Zero Halogen) |
| Jacket Color | Black |
| Cable Length | 4,000 Meters / Drum |
| Application | Campus Backbone, Building Backbone, Indoor/Outdoor Duct, Lash Aerial, FTTx, CATV, CCTV and Enterprise Networks |
| Cable Standard | ANSI/TIA-568.3-E, ISO/IEC 11801:2017 Class OF-300 |
|---|---|
| Fiber Standard | ITU-T G.652D Singlemode OS2 |
| Core Size | 9/125 μm |
| Number of Fibers | 6 Core |
| Fiber Construction | Single Loose Tube with Waterproof Gel Filling |
| Strength Member | Water Blocking E-Glass Yarn |
| Rip Cord | Included |
| Outer Jacket | UV-Resistant Flame Retardant LSZH |
| Cable Diameter | Approximately 7.2 ± 0.5 mm |
| Cable Weight | Approximately 53 ± 5 kg/km |
| SMART FEATURES | |
|---|---|
| All-Dielectric Design | Non-Metallic Construction Eliminates Electrical Conductivity and Lightning Risks |
| Outdoor & Indoor Use | Suitable for Duct Installation, Lash Aerial Applications and Building Backbone Networks |
| Water Blocking Protection | Gel-Filled Loose Tube and Glass Yarn Prevent Moisture Penetration |
| LSZH Flame Retardant Jacket | Low Smoke Zero Halogen Jacket Improves Fire Safety for Indoor Installations |
| High-Speed Transmission | Supports 10G, 25G, 40G, 100G, 200G and 400G Ethernet, FTTx, CATV and Fiber Channel Networks |
| GENERAL | |
|---|---|
| Cable Type | Outdoor/Indoor All-Dielectric Single Loose Tube Fiber Optic Cable |
| Maximum Tensile Load | 1,800 N (Installation) / 900 N (Operation) |
| Maximum Crush Resistance | 1,500 N / 10 cm |
| Minimum Bend Radius | 15 × Cable Diameter (Installation), 10 × Cable Diameter (Operation) |
| Installation / Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +75°C |
| Standards Compliance | ANSI/TIA-568.3-E, ANSI/TIA-568.3-D, ISO/IEC 11801:2017, IEC 60793, IEC 60794-1-2, IEC 60332-1-2, IEC 61034-2, IEC 60754-2, Telcordia GR-20-CORE, GR-409-CORE, TIS 2165, RoHS |
| Packaging | 4,000m Drum |
| Warranty | 30 Years |
Note: The LINK UFC9306 is a 6-core OS2 9/125 μm singlemode fiber optic cable designed for both outdoor and indoor installations. Its all-dielectric construction, gel-filled loose tube, water-blocking glass yarn, and UV-resistant FR-LSZH jacket provide reliable long-distance optical transmission while protecting the cable from moisture, environmental exposure, and fire hazards.
Important: The LINK UFC9306 supports backbone networks, FTTx, CATV, CCTV, Fiber Channel, ATM, and Ethernet applications ranging from Gigabit Ethernet up to 400 Gigabit Ethernet. Its non-metallic design makes it suitable for duct and aerial installations without grounding concerns, while the LSZH jacket enables safe deployment inside buildings where low smoke and halogen-free materials are required.
