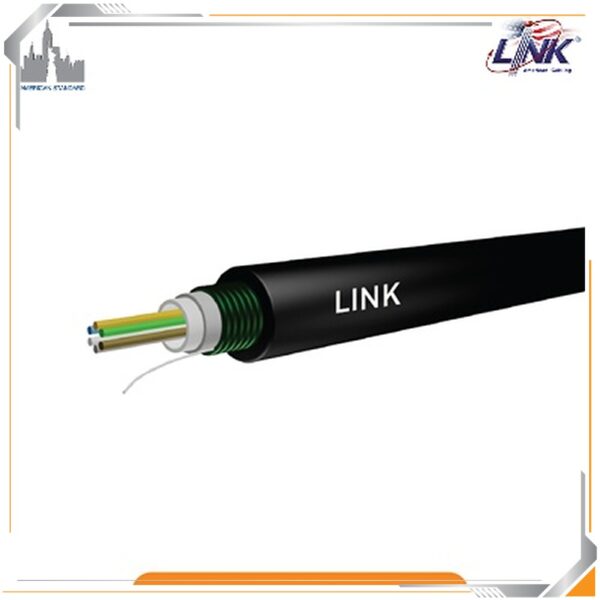

12 Core OS2 Armored Outdoor/Indoor Fiber Optic Cable
- 12 Core OS2 9/125μm Singlemode armored fiber optic cable
- Outdoor/Indoor steel armored design with FR-LSZH and UV-resistant PE jacket
- Supports duct, aerial and direct burial installations
- Complies with ANSI/TIA-568.3, IEC 60794 and ITU-T G.652D standards
- Supports Gigabit, 10G, 40G, 100G Ethernet, FTTx, CATV and CCTV applications
- Ideal for campus backbone, inter-building and long-distance enterprise fiber networks
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specifications LINK UFC9312A
| Features | Description |
|---|---|
| Device Type | Outdoor / Indoor Armored Fiber Optic Cable |
| Fiber Type | OS2 9/125μm Single-Mode Fiber |
| Core Count | 12 Core |
| Cable Construction | Steel Armored, Single Loose Tube |
| Jacket Material | UV-Resistant Black PE with FR-LSZH Outer Sheath |
| Installation | Indoor / Outdoor, Duct, Lash Aerial and Direct Burial |
| Armored Protection | Corrugated Steel Tape for Rodent and Mechanical Protection |
| Water Protection | Waterproof Compound and Water-Blocking E-Glass Yarn |
| Cable Length | 4,000 Meters per Drum (Available by Meter) |
| Application | Campus Backbone, Building Backbone, Direct Burial, FTTx, CCTV and Enterprise Networks |
| Fiber Standard | ITU-T G.652D OS2 Single-Mode |
|---|---|
| Fiber Diameter | 9/125μm |
| Armor Type | Corrugated Steel Tape |
| Flame Rating | FR-LSZH (Flame Retardant Low Smoke Zero Halogen) |
| Installation Type | Indoor / Outdoor, Duct, Lash Aerial and Direct Burial |
| Standards | ANSI/TIA-568.3-E, ISO/IEC 11801:2017, IEC 60794-1-2, IEC 60332-1-2, IEC 61034-2, IEC 60754-2, Telcordia GR-20-CORE, ITU-T G.652D, RoHS |
| Application | 10G, 40G, 100G Ethernet, Fiber Channel, FTTx, CATV, CCTV and Backbone Networks |
| SMART FEATURES | |
|---|---|
| Steel Armored Design | Provides Excellent Protection Against Rodents, Crushing and Mechanical Damage |
| Direct Burial Support | Suitable for Underground Installation Without Additional Conduit |
| Water Blocking | Filled with Waterproof Compound and E-Glass Yarn to Prevent Moisture Penetration |
| FR-LSZH Jacket | Reduces Flame Spread, Smoke and Toxic Gas Emissions During Fire |
| High-Speed Backbone | Supports High-Bandwidth Network Applications up to 100GbE and Beyond |
| GENERAL | |
|---|---|
| Fiber Count | 12 Core |
| Cable Color | Black |
| Cable Construction | Single Loose Tube with Corrugated Steel Tape Armor |
| Packing | 4,000m per Drum (Available by Meter) |
| Compliance | RoHS Compliant |
| Warranty | 30 Years |
Note: The LINK UFC9312A is a 12-core OS2 9/125μm single-mode armored fiber optic cable designed for indoor and outdoor installations, including direct burial. It features a corrugated steel tape armored construction, FR-LSZH outer sheath, waterproof loose tube, UV-resistant PE jacket, and water-blocking E-glass yarn. It is suitable for campus backbone, inter-building links, FTTx, CCTV, and enterprise network infrastructure.
Important: The LINK UFC9312A is a 12-core OS2 armored fiber optic cable featuring steel tape armor, ITU-T G.652D single-mode fiber, direct burial support, FR-LSZH flame-retardant jacket, waterproof construction, UV-resistant PE sheath, and compliance with ANSI/TIA, ISO/IEC, IEC and Telcordia standards. It is ideal for underground backbone links, inter-building connections, FTTx, CCTV, and high-speed enterprise fiber optic networks.
