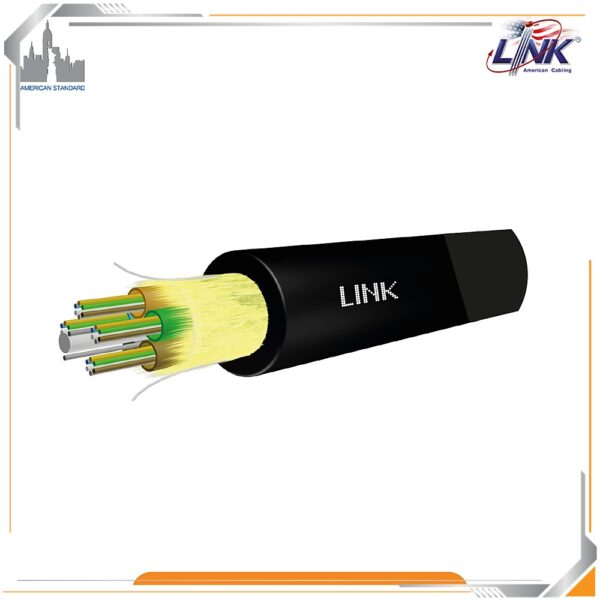

72 Core OS2 Outdoor/Indoor All-Dielectric Multi-Tube Fiber Optic Cable

  • 72 Core OS2 9/125μm Singlemode fiber optic cable
  • All-Dielectric multi-tube design for indoor and outdoor installation
  • LSZH-FR jacket with UV-resistant outer sheath for enhanced safety and durability
  • Dry water-blocking yarns provide excellent moisture protection
  • Suitable for backbone, FTTx, CATV, CCTV and high-speed Ethernet networks
  • Complies with ANSI/TIA-568.3, IEC 60794, ITU-T G.652.D and RoHS standards
หมวดหมู่: , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

Specifications LINK UFC9372M

Features Description
Device Type Outdoor/Indoor All-Dielectric Fiber Optic Cable
Fiber Type OS2 Singlemode 9/125 μm
Core Count 72 Core
Cable Construction Multi-Tube, All-Dielectric
Water Blocking Dry Water Blocking Yarn and Water Blocking Tape
Strength Member FRP Central Strength Member with Glass Yarn
Outer Jacket UV-Resistant FR-LSZH (Low Smoke Zero Halogen)
Jacket Color Black
Cable Length Sold by Meter (M)
Application Campus Backbone, Building Backbone, Outdoor/Indoor Duct, FTTx, CATV, CCTV and Enterprise Networks
Cable Standard ANSI/TIA-568.3-D, ISO/IEC 11801:2017
Fiber Standard ITU-T G.652D Singlemode OS2
Core Size 9/125 μm
Number of Fibers 72 Core
Fiber Construction Multi Loose Tube
Central Strength Member Fiber Reinforced Plastic (FRP)
Water Blocking Dry Water Blocking Tape and Glass Yarn
Outer Jacket UV-Resistant FR-LSZH
Cable Diameter Approximately 11.0 ± 0.5 mm
Cable Weight Approximately 115 ± 10 kg/km
SMART FEATURES
All-Dielectric Design Non-Metallic Construction Eliminates Electrical Conductivity and Grounding Requirements
Multi-Tube Structure Provides Excellent Fiber Organization and Mechanical Protection for High-Core Backbone Installations
Dry Water Blocking System Water Blocking Tape and Glass Yarn Prevent Moisture Penetration Without Using Gel Filling
LSZH Flame Retardant Jacket Provides Low Smoke and Zero Halogen Performance for Safe Indoor and Outdoor Installations
High-Speed Transmission Supports 10G, 25G, 40G, 100G, 200G and 400G Ethernet, FTTx, CATV and Fiber Channel Applications
GENERAL
Cable Type Outdoor/Indoor All-Dielectric Multi-Tube Fiber Optic Cable
Maximum Tensile Load 2,700 N (Installation) / 1,500 N (Operation)
Maximum Crush Resistance 2,000 N / 10 cm
Minimum Bend Radius 20 × Cable Diameter (Installation), 10 × Cable Diameter (Operation)
Installation / Operating Temperature -40°C to +70°C
Storage Temperature -40°C to +75°C
Standards Compliance ANSI/TIA-568.3-D, ISO/IEC 11801:2017, IEC 60793, IEC 60794-1-2, IEC 60332-1-2, IEC 61034-2, IEC 60754-2, Telcordia GR-20-CORE, TIS 2165, RoHS
Packaging Available by Meter (M)
Warranty 30 Years

Note: The LINK UFC9372M is a 72-core OS2 9/125 μm singlemode all-dielectric fiber optic cable featuring a multi-tube construction, FRP central strength member, dry water-blocking technology, and a UV-resistant FR-LSZH jacket. It is designed for indoor and outdoor duct installations requiring high fiber capacity, excellent mechanical protection, and reliable long-distance optical transmission.

Important: The LINK UFC9372M supports backbone networks, FTTx, CATV, CCTV, Fiber Channel, and Ethernet applications from Gigabit Ethernet up to 400 Gigabit Ethernet. Its dry water-blocking design eliminates gel-filled tubes for easier installation and maintenance, while the all-dielectric construction provides complete immunity to electromagnetic interference and removes grounding requirements, making it ideal for enterprise, campus, and service provider backbone deployments.
