| Features |
Description |
| Product Type |
Outdoor / Indoor Drop Wire Fiber Optic Cable |
| Fiber Type |
OS2 9/125 µm Single-Mode |
| Fiber Core |
4 Core |
| Cable Construction |
Drop Wire with Integrated Messenger Wire |
| Messenger Wire |
1.2 mm Galvanized Steel Wire |
| Jacket |
UV-Resistant Flame-Retardant Black PE with LSZH Outer Jacket |
| Jacket Type |
LSZH-FR |
| Installation |
Indoor / Outdoor / Aerial / Building Entrance |
| Fiber Standard |
ITU-T G.652D |
| Length |
2,000 / 3,000 / 4,000 m / Drum |
| Color |
Black |
| Application |
FTTx / Backbone / CCTV / Inter-Building / Enterprise Network |
| FIBER OPTIC SPECIFICATION |
| Fiber Type |
OS2 Single-Mode |
| Core / Cladding |
9/125 µm |
| Number of Fibers |
4 Core |
| Fiber Standard |
ITU-T G.652D |
| Transmission |
10G / 40G / 100G Ethernet |
| CABLE CONSTRUCTION |
| Cable Type |
Outdoor / Indoor Drop Wire |
| Messenger Wire |
1.2 mm Galvanized Steel Wire |
| Outer Jacket |
LSZH-FR |
| Jacket Material |
UV-Resistant Flame-Retardant Black PE |
| Support Design |
Integrated Messenger Wire for Self-Support Aerial Installation |
| STANDARDS |
| Fiber Standard |
ITU-T G.652D |
| ANSI/TIA |
ANSI/TIA-568.3 |
| ISO/IEC |
ISO/IEC 11801 |
| IEC |
IEC 60793 / IEC 60794 / IEC 60332 / IEC 61034 / IEC 60754 |
| Compliance |
RoHS |
| APPLICATION |
| FTTx |
Fiber Access and Last-Mile Network |
| Network Backbone |
Fiber Optic Backbone |
| Inter-Building |
Building-to-Building Connectivity |
| Aerial Installation |
Pole / Building Facade / Building Entrance |
| Other Applications |
CCTV / Ethernet / Telecommunication Network |

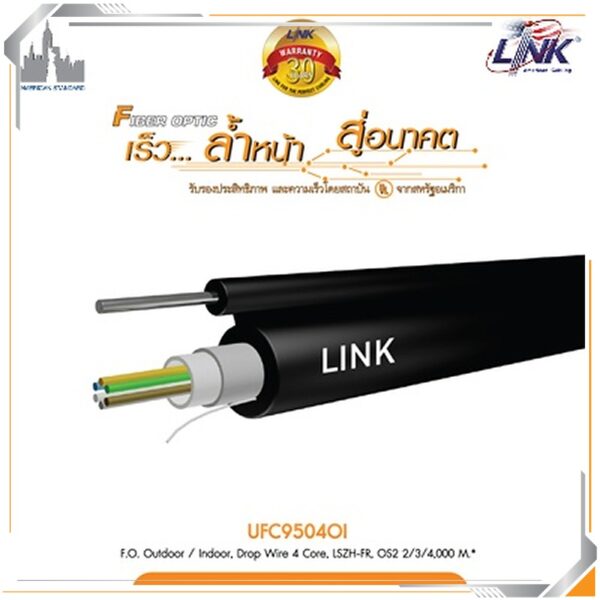

Note: The LINK UFC9504OI is a 4-core OS2 9/125 µm Single-Mode Fiber Optic Drop Wire Cable designed for indoor and outdoor installation. It features an integrated 1.2 mm galvanized steel messenger wire for self-support aerial installation and an LSZH-FR jacket for flame-retardant, low-smoke and halogen-free protection. It is suitable for FTTx, backbone, CCTV, inter-building and enterprise network applications.
