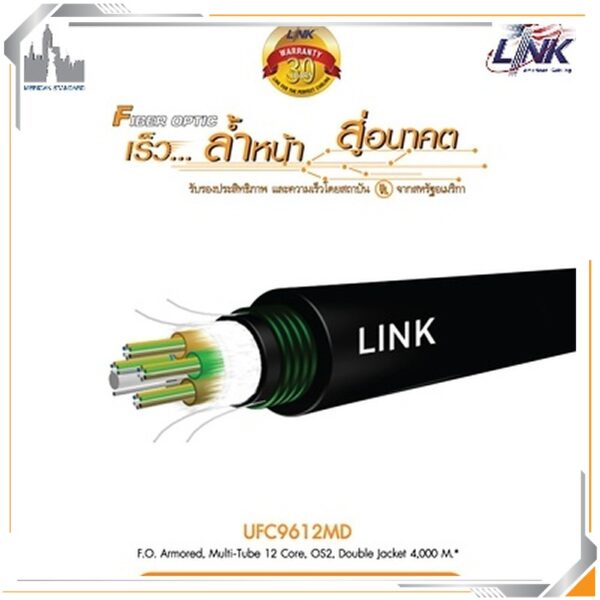

12 Core OS2 Armored Multi-Tube Outdoor Fiber Optic Cable (Double Jacket)

  • 12 Core OS2 9/125μm Singlemode armored multi-tube fiber optic cable
  • Double Jacket design with steel armor protection for high durability
  • Supports outdoor, indoor, aerial and direct burial installations
  • Uses Water Blocking Tape and Water Blocking Yarn for moisture protection
  • Self-Support structure allows aerial installation without messenger wire
  • Complies with ANSI/TIA-568.3, IEC 60794 and ITU-T G.652D standards
  • Ideal for backbone networks, campus networks, CCTV, FTTx and long-distance fiber links
หมวดหมู่: , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

Specifications LINK UFC9612MD

Features Description
Device Type Outdoor / Indoor Armored Fiber Optic Cable (Self Support)
Fiber Type OS2 9/125μm Single-Mode Fiber
Core Count 12 Core
Cable Construction ARSS Multi-Tube Steel Armored, Double Jacket
Jacket Material UV-Resistant Black HDPE Double Jacket
Installation Indoor / Outdoor, Aerial, Pole Installation and Direct Burial
Armored Protection Steel Armored Layer for Rodent and Mechanical Protection
Water Protection Water Blocking Tape and Water Blocking Yarn for Moisture Protection
Self Support Design Can Be Installed Between Poles Without Additional Messenger Wire
Cable Length 4,000 Meters per Drum
Application Backbone Network, FTTx, CCTV, Inter-Building Link and Enterprise Fiber Infrastructure
Fiber Standard ITU-T G.652D OS2 Single-Mode
Fiber Diameter 9/125μm
Armor Type Steel Armored
Jacket Type Double Jacket, UV-Resistant HDPE
Structure Type ARSS Multi-Tube (Armored Self Support)
Installation Type Indoor / Outdoor, Aerial and Direct Burial
Standards ANSI/TIA-568.3-E, ISO/IEC 11801, IEC 60793, IEC 60794-1-2, Telcordia GR-20-CORE, ITU-T G.652D, RoHS
Application 10G, 40G, 100G Ethernet, Fiber Channel, CATV, CCTV and Long-Distance Backbone
SMART FEATURES
Double Jacket Design Provides Enhanced Protection Against Weather, UV Radiation and Mechanical Damage
Steel Armored Protection Protects Fiber Core Against Rodents, Crushing and External Impact
Self Support Structure Allows Aerial Installation Without Additional Messenger Wire
Water Blocking System Water Blocking Tape and Yarn Prevent Moisture Penetration
High-Speed Backbone Supports Long-Distance High-Bandwidth Fiber Network Applications
GENERAL
Fiber Count 12 Core
Cable Diameter Approximately 12.0mm
Cable Weight 110kg/km (Approx.)
Maximum Tensile Load 1,800N
Installation / Operating Temperature -40°C to +70°C
Storage Temperature -40°C to +75°C
Packing 4,000m per Drum
Warranty 30 Years

Note: The LINK UFC9612MD is a 12-core OS2 9/125μm single-mode armored multi-tube fiber optic cable featuring ARSS self-support construction and double jacket protection. It is designed for both indoor and outdoor installation, including aerial pole installation and direct burial applications. The cable uses steel armor, water-blocking tape, and water-blocking yarn to provide high mechanical strength and moisture protection, making it suitable for backbone networks, CCTV, FTTx, and enterprise fiber infrastructure.

Important: The LINK UFC9612MD is a 12-core OS2 armored fiber optic cable with ARSS Multi-Tube Double Jacket structure. It provides superior protection against impact, rodents, moisture, and outdoor environmental conditions while supporting long-distance high-speed transmission for professional network backbone deployments.
