| Features |
Description |
| Product Type |
Armored Multi-Tube Fiber Optic Cable |
| Fiber Type |
Single-Mode OS2 |
| Fiber Size |
9/125 µm |
| Fiber Core |
24 Core |
| Construction |
Multi-Tube, Armored, Double Jacket |
| Armor |
Steel Armored |
| Jacket |
UV-Resistant Black HDPE |
| Jacket Type |
Double Jacket |
| Water Protection |
Water Blocking Tape and Water Blocking Yarn |
| Installation |
Indoor / Outdoor / Direct Burial |
| Length |
4,000 m / Reel |
| Fiber Standard |
ITU-T G.652D |
| Transmission |
10G / 40G / 100G Ethernet |
| FIBER OPTIC SPECIFICATION |
| Fiber Type |
OS2 Single-Mode |
| Core / Cladding |
9/125 µm |
| Number of Fibers |
24 Core |
| Fiber Construction |
Loose Tube / Multi-Tube |
| Fiber Standard |
ITU-T G.652D |
| CABLE CONSTRUCTION |
| Cable Type |
Outdoor Armored Multi-Tube |
| Armor |
Steel Armored |
| Jacket |
UV-Resistant Black HDPE, Double Jacket |
| Water Protection |
Water Blocking Tape and Water Blocking Yarn |
| Installation |
Indoor / Outdoor / Direct Burial |
| STANDARDS |
| Fiber Standard |
ITU-T G.652D |
| ISO/IEC |
ISO/IEC 11801 |
| ANSI/TIA |
ANSI/TIA-568.3 |
| Telcordia |
GR-20-CORE |
| ANSI/ICEA |
ANSI/ICEA 640 |
| IEC |
IEC 60793 / IEC 60794 |
| Compliance |
RoHS |
| APPLICATION |
| Network Backbone |
Fiber Optic Backbone |
| Inter-Building |
Building-to-Building Connectivity |
| Installation |
Indoor / Outdoor / Direct Burial |
| Network |
10G / 40G / 100G Ethernet |
| Other Applications |
CCTV / FTTX / Enterprise Network |

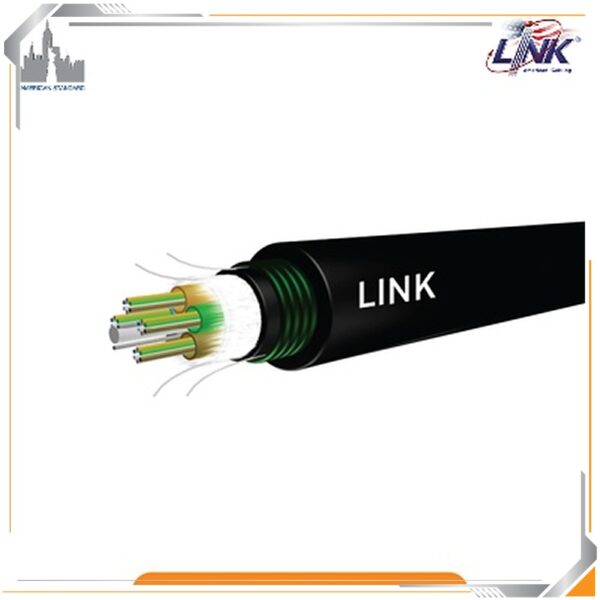

Note: The LINK UFC9624MD is a 24-core OS2 Single-Mode Fiber Optic Cable with 9/125 µm fiber construction. It features an armored multi-tube design, steel armor, double HDPE jacket, and water-blocking protection. It is suitable for indoor, outdoor, and direct burial installations and is designed for fiber optic backbone and inter-building network applications.
