LINK UFC9672M
LINK UFC9672M

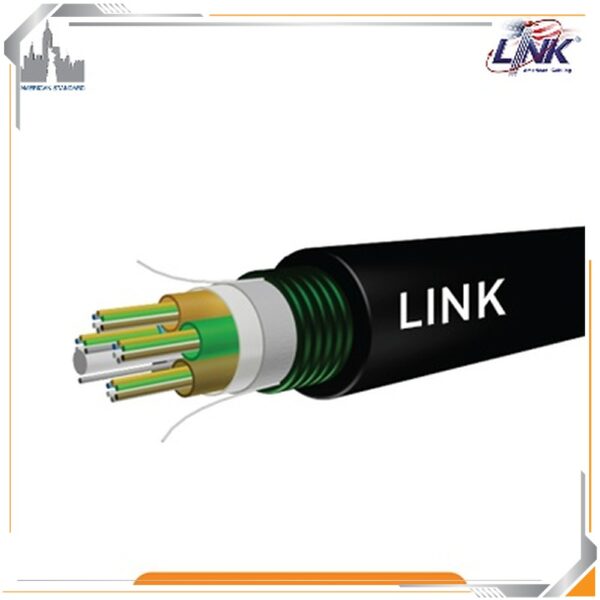

72 Core OS2 Armored Multi-Tube Outdoor Fiber Optic Cable
- 72 Core OS2 9/125μm Singlemode armored multi-tube fiber optic cable
- Outdoor armored design with steel protection and UV-resistant HDPE outer jacket
- Supports duct, aerial and direct burial installations
- Uses Multi-Tube construction for high-density fiber deployment
- Complies with ANSI/TIA-568.3, IEC 60794 and ITU-T G.652D standards
- Supports 10G, 40G, 100G, 200G and 400G Ethernet, FTTx, CATV and backbone network applications
- Ideal for data centers, campus backbone, inter-building and long-distance enterprise fiber networks
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specifications LINK UFC9672M
| Features | Description |
|---|---|
| Device Type | Outdoor / Indoor Armored Fiber Optic Cable |
| Fiber Type | OS2 9/125μm Single-Mode Fiber |
| Core Count | 72 Core |
| Cable Construction | Steel Armored, Multi-Tube, Single Jacket |
| Jacket Material | UV-Resistant Black PE with LSZH Outer Jacket |
| Installation | Indoor / Outdoor, Duct, Lash Aerial and Direct Burial |
| Armored Protection | Corrugated Steel Tape for Rodent and Mechanical Protection |
| Water Protection | Water-Blocking Yarn, Tape and Jelly-Filled Loose Tube Construction |
| Cable Length | 4,000 Meters per Drum (Available by Meter) |
| Application | Backbone Network, Data Center, Building Backbone, FTTx, CCTV and Enterprise Networks |
| Fiber Standard | ITU-T G.652D OS2 Single-Mode |
|---|---|
| Fiber Diameter | 9/125μm |
| Armor Type | Corrugated Steel Tape |
| Jacket Type | Single Jacket, UV-Resistant PE / LSZH Outer Jacket |
| Installation Type | Indoor / Outdoor, Duct, Aerial and Direct Burial |
| Standards | ISO/IEC 11801, ANSI/TIA-568.3, Telcordia GR-20-CORE, ANSI/ICEA 640, ITU-T G.652D, IEC 60793, IEC 60794-1-2, EN 50173-1, TIS 2165, RoHS |
| Application | 10G, 40G, 100G Ethernet, Fiber Channel, CATV, CCTV, FTTx and Long-Distance Backbone |
| SMART FEATURES | |
|---|---|
| Multi-Tube Design | SZ-Stranded Loose Tube Construction Supports High Fiber Count and Provides Excellent Fiber Protection |
| Steel Armored Protection | Provides Protection Against Rodents, Crushing and Mechanical Damage for Outdoor Deployment |
| Water Blocking | Jelly-Filled Loose Tube with Water-Blocking Materials Prevents Moisture Penetration |
| Direct Burial Support | Suitable for Underground Installation Without Additional Conduit |
| High Fiber Density | 72 Fiber Cores in a Single Cable for Large-Scale Backbone Infrastructure |
| GENERAL | |
|---|---|
| Fiber Count | 72 Core |
| Cable Diameter | Approximately 15.0mm |
| Cable Weight | Approximately 125kg/km |
| Maximum Tensile Load | Suitable for Heavy-Duty Outdoor Backbone Installation |
| Installation / Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +75°C |
| Packing | 4,000m per Drum (Available by Meter) |
| Warranty | 30 Years |
Note: The LINK UFC9672M is a 72-core OS2 9/125μm single-mode armored multi-tube fiber optic cable designed for high-capacity backbone networks. It features corrugated steel tape armor, water-blocking construction, UV-resistant PE/LSZH outer jacket, and direct burial support, making it suitable for indoor and outdoor installation, inter-building links, data centers, FTTx, CCTV, and enterprise fiber optic infrastructure.
Important: The LINK UFC9672M is a 72-core OS2 armored multi-tube fiber optic cable featuring ITU-T G.652D single-mode fiber, steel armored protection, single jacket design, and compliance with international fiber optic standards. It is optimized for large-scale network backbone deployment requiring high fiber capacity, reliability, and long-distance transmission performance.
