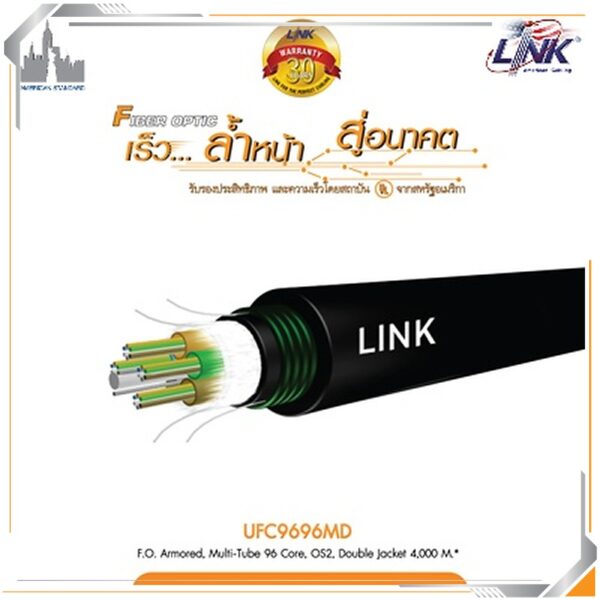

96 Core OS2 Armored Multi-Tube Outdoor Fiber Optic Cable (Double Jacket)

  • 96 Core OS2 9/125μm Singlemode armored multi-tube fiber optic cable
  • Double Jacket design with steel armor protection for enhanced durability
  • Supports outdoor, indoor, aerial and direct burial installations
  • Uses Water Blocking Tape and Water Blocking Yarn for moisture protection
  • Complies with ANSI/TIA-568.3, IEC 60794 and ITU-T G.652D standards
  • Ideal for backbone networks, data centers, campus networks and long-distance fiber links
หมวดหมู่: , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

Specifications LINK UFC9696MD

Features Description
Device Type ARSS Multi-Tube Armored Fiber Optic Cable (Self Support)
Fiber Type OS2 9/125μm Single-Mode Fiber
Core Count 96 Core
Cable Construction Multi-Tube, Steel Armored, Double Jacket
Jacket Material UV-Resistant Black HDPE Double Jacket
Installation Indoor / Outdoor, Aerial Pole Installation and Direct Burial
Armored Protection Steel Armored Layer for Rodent and Mechanical Protection
Water Protection Water Blocking Tape and Water Blocking Yarn for Moisture Protection
Self Support Design Allows Aerial Installation Between Poles Without Additional Messenger Wire
Cable Length 4,000 Meters per Drum
Application Ultra Backbone Network, Data Center, FTTx, CCTV, Inter-Building Link and Enterprise Fiber Infrastructure
Fiber Standard ITU-T G.652D OS2 Single-Mode
Fiber Diameter 9/125μm
Armor Type Steel Armored (ARSS)
Jacket Type Double Jacket, UV-Resistant HDPE
Structure Type ARSS Multi-Tube (Anti Rodent Self Support Cable)
Installation Type Indoor / Outdoor, Aerial and Direct Burial
Standards ISO/IEC 11801, ANSI/TIA-568.3, Telcordia GR-20-CORE, ANSI/ICEA 640, ITU-T G.652D, IEC 60793, IEC 60794-1-2, EN 50173-1, TIS 2165, RoHS
Application 10G, 40G, 100G Ethernet, Fiber Channel, CATV, CCTV and Long-Distance Backbone
SMART FEATURES
ARSS Self Support Design Supports Aerial Installation Without Additional Messenger Wire, Suitable for Pole-to-Pole Deployment
Double Jacket Design Provides Enhanced Protection Against UV Radiation, Weather Conditions and Mechanical Damage
Steel Armored Protection Protects Fiber Core Against Rodents, Crushing and External Impact
Water Blocking System Water Blocking Tape and Yarn Prevent Moisture Penetration Into Cable Structure
Ultra High Fiber Capacity 96 Fiber Cores for Large-Scale Backbone and High-Density Network Infrastructure
GENERAL
Fiber Count 96 Core
Core / Cladding Size 9/125μm Single-Mode Fiber
Cable Diameter Approximately 16mm
Cable Weight 110kg/km (Approx.)
Maximum Tensile Load Suitable for Heavy-Duty Outdoor Backbone Installation
Installation / Operating Temperature -40°C to +70°C
Storage Temperature -40°C to +75°C
Packing 4,000m per Drum
Warranty 30 Years

Note: The LINK UFC9696MD is a 96-core OS2 9/125μm single-mode ARSS multi-tube armored fiber optic cable featuring double jacket construction and self-support design. It uses steel armored protection, water-blocking tape, and water-blocking yarn to provide excellent protection against rodents, moisture, impact, and harsh outdoor environments. The cable supports aerial installation between poles without additional messenger wire and is suitable for ultra backbone networks, data centers, FTTx, CCTV, and enterprise fiber infrastructure.

Important: The LINK UFC9696MD is a 96-core OS2 armored fiber optic cable with ARSS Multi-Tube Double Jacket structure. It features ITU-T G.652D single-mode fiber, steel armor protection, UV-resistant HDPE double jacket, and self-support aerial installation capability. It is optimized for high-capacity backbone networks requiring long-distance transmission, high reliability, and maximum fiber density.
