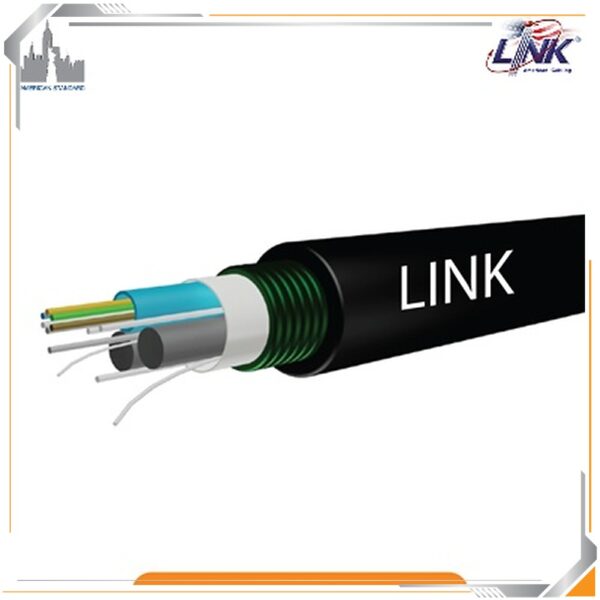

4 Core OS2 Mini ARSS Armored Fiber Optic Cable

  • 4 Core OS2 9/125μm Singlemode fiber optic cable
  • Mini ARSS 3-Twisted Tube armored design with FRP strength member
  • Self-supporting construction for aerial, duct and direct buried installation
  • Corrugated steel tape armor with anti-rodent protection
  • UV-resistant HDPE outer jacket for outdoor durability
  • Complies with ANSI/TIA-568.3, IEC 60794, ITU-T G.652.D and RoHS standards
หมวดหมู่: , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

Specifications LINK UFC9704A

Features Description
Device Type Mini ARSS Armored Self-Support Fiber Optic Cable
Fiber Type OS2 9/125μm Single-Mode Fiber
Core Count 4 Core
Cable Construction Mini ARSS, 3 Twisted Tube, Steel Armored, Single Jacket
Jacket Material UV-Resistant Black HDPE Outer Jacket
Installation Aerial, Direct Burial and Underground Duct Installation
Armored Protection Corrugated Steel Tape Armor with Water Blocking Tape and Yarn
Tensile Strength 1,200 N Self-Support Design
Cable Length 2,000 / 3,000 / 4,000 Meters per Drum
Application Backbone Network, FTTx, CCTV, CATV and Enterprise Fiber Infrastructure
Fiber Standard ITU-T G.652D OS2 Single-Mode
Fiber Diameter 9/125μm
Fiber Type Single-Mode Fiber (SMF)
Cable Structure Mini ARSS, 3 Twisted Tube, Armored
Armor Type Corrugated Steel Tape Armor
Jacket Type Single HDPE Jacket
Strength Member FRP Central Strength Member with Water Blocking E-Glass Yarn
Installation Type Aerial, Direct Burial and Underground Duct
Standards ANSI/TIA-568.3-D, ANSI/ICEA 640, Telcordia GR-20-CORE, ITU-T G.652D, ISO/IEC 11801, IEC 60793, IEC 60794-1-2, EN 50173-1, TIS 2166, RoHS
Application 10G, 40G, 100G, 200G and 400G Ethernet, FTTx, CATV, CCTV and Fiber Backbone
SMART FEATURES
Mini ARSS Design Self-Support Cable Structure Suitable for Aerial Installation Without Additional Messenger Wire
3 Twisted Tube Structure Reduces Fiber Movement Caused by Wind and Improves Cable Stability
Steel Armored Protection Corrugated Steel Tape Protects Against Rodents, Crushing and Mechanical Damage
Water Blocking System Water Blocking Tape and Yarn Prevent Moisture Penetration Into the Cable
High Tensile Strength Supports Up to 1,200 N Tensile Load for Reliable Outdoor Installation
GENERAL
Fiber Count 4 Core
Core / Cladding Size 9/125μm Single-Mode Fiber
Cable Type Mini ARSS Armored Single Jacket
Outer Jacket Color Black
Cable Weight Approximately 65kg/km
Tensile Strength 1,200 N
Installation / Operating Temperature -40°C to +70°C
Packing 2,000 / 3,000 / 4,000m per Drum
Warranty 30 Years

Note: The LINK UFC9704A is a 4-core OS2 9/125μm single-mode Mini ARSS fiber optic cable featuring a 3 Twisted Tube armored construction with a single HDPE jacket. It incorporates an FRP central strength member, corrugated steel tape armor, and water-blocking materials, providing excellent tensile strength and protection for aerial, duct, and direct-buried installations. It is suitable for FTTx, CCTV, CATV, backbone networks, and enterprise fiber infrastructure.

Important: The LINK UFC9704A is designed for outdoor self-support applications with a tensile strength of 1,200 N. Its Mini ARSS structure eliminates the need for a separate messenger wire while providing high resistance to moisture, rodent damage, UV exposure, and harsh environmental conditions, making it ideal for long-distance fiber backbone deployments.

จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ้อมกล้องวงจรปิด พัทยา ชลบุรี
