Specifications LINK UFC9748CM
| Features |
Description |
| Device Type |
ADSS Multi-Tube All-Dielectric Self-Support Fiber Optic Cable |
| Fiber Type |
OS2 9/125μm Single-Mode Fiber |
| Core Count |
48 Core |
| Cable Construction |
ADSS Multi-Tube, Single Jacket, All-Dielectric |
| Jacket Material |
UV-Resistant Black HDPE Outer Jacket |
| Installation |
Aerial and Underground Duct Installation |
| Water Protection |
Dry Water Blocking Tape and Water Blocking Yarn |
| Tensile Strength |
1,800 N Self-Support Design |
| Cable Length |
4,000 Meters per Drum |
| Application |
Backbone Network, FTTx, CCTV, CATV and Enterprise Fiber Infrastructure |
| Fiber Standard |
ITU-T G.652D OS2 Single-Mode |
| Fiber Diameter |
9/125μm |
| Fiber Type |
Single-Mode Fiber (SMF) |
| Cable Structure |
ADSS Multi-Tube Outdoor Single Jacket |
| Armor Type |
All-Dielectric (Non-Metallic) |
| Jacket Type |
Single HDPE Jacket |
| Strength Member |
Dielectric Central Strength Member with Water Blocking E-Glass Yarn |
| Installation Type |
Aerial and Underground Duct |
| Standards |
ANSI/TIA-568.3-E, ANSI/TIA-568.3-D, ANSI/ICEA 640, IEEE P-1222, Telcordia GR-20-CORE, ITU-T G.652D, ISO/IEC 11801, IEC 60793, IEC 60794-1-2, EN 50173-1, TIS 2166, RoHS |
| Application |
40/100Gb Ethernet, 10Gb Ethernet, Gigabit Ethernet, Fiber Channel, FTTx, CATV, CCTV and Backbone Network |
| SMART FEATURES |
| All-Dielectric Design |
No Metallic Components, Preventing Electrical Induction and Lightning Risks |
| Multi-Tube Construction |
Color-Coded Loose Tubes Protect Fiber Cores and Improve Cable Flexibility |
| Self-Support Design |
Designed for Aerial Installation Without Additional Messenger Wire |
| Water Blocking System |
Dry Water Blocking Tape and Yarn Prevent Moisture Penetration Throughout the Cable |
| Outdoor HDPE Jacket |
UV-Resistant Jacket Provides Long-Term Weather Protection |
| GENERAL |
| Fiber Count |
48 Core |
| Core / Cladding Size |
9/125μm Single-Mode Fiber |
| Cable Type |
ADSS Multi-Tube Single Jacket |
| Outer Jacket Color |
Black |
| Cable Weight |
Approximately 78kg/km |
| Maximum Tensile Strength |
1,800 N |
| Installation / Operating Temperature |
-40°C to +70°C |
| Packing |
4,000m per Drum |
| Warranty |
30 Years |

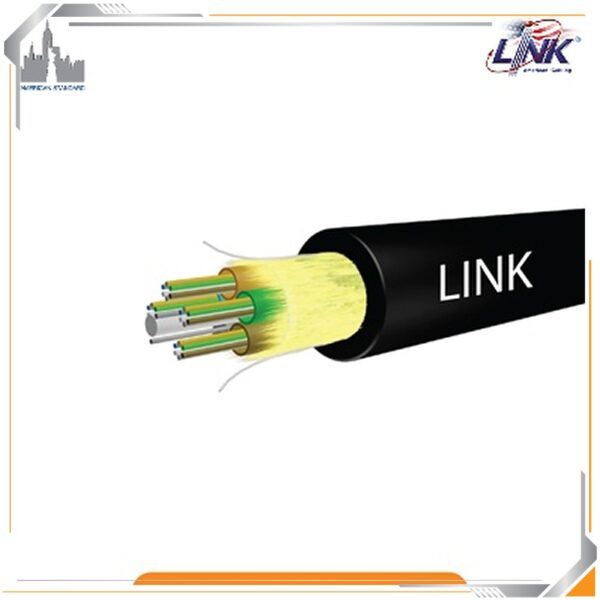

Note: The LINK UFC9748CM is a 48-core OS2 9/125μm single-mode ADSS Multi-Tube fiber optic cable featuring an all-dielectric self-support construction. It uses multiple color-coded loose tubes, a dielectric central strength member, water-blocking tape, water-blocking yarn, and a UV-resistant HDPE jacket. The cable provides high mechanical strength with 1,800 N tensile performance and supports aerial installation without additional messenger wire, making it suitable for backbone networks, FTTx, CCTV, CATV, and enterprise fiber infrastructure.
Important: The LINK UFC9748CM is designed for long-distance outdoor fiber deployment where metallic cables are not suitable. Its ADSS all-dielectric structure eliminates electrical induction and lightning risks while providing reliable transmission performance for 10G, 40G, and 100G Ethernet backbone applications.
