LINK UFC9860MAD
LINK UFC9860MAD

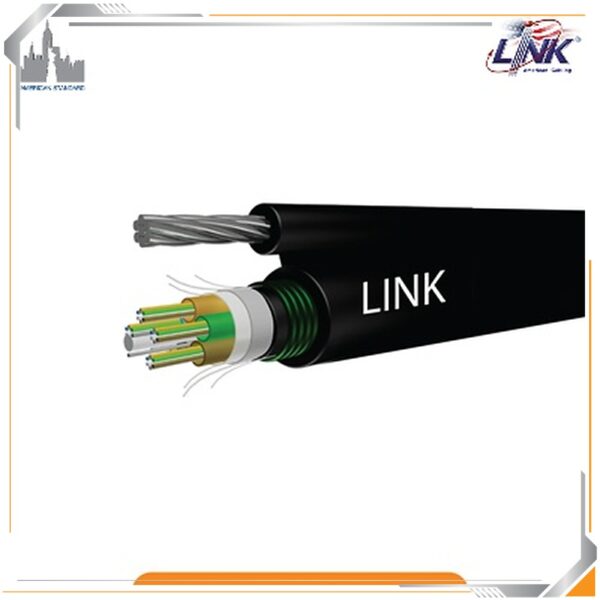

60 Core OS2 Armored Figure 8 Fiber Optic Cable (Double Jacket)
- 60 Core OS2 9/125μm Singlemode fiber cable
- Figure 8 Multi-Tube armored design with stranded drop wire
- Double Jacket PE sheath with UV protection
- Supports self-supporting aerial installation
- Complies with ANSI/TIA-568.3, IEC 60794 and G.652D
- Ideal for FTTx, CCTV and backbone networks
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specifications LINK UFC9860MAD
| Features | Description |
|---|---|
| Device Type | F.O. FIG.8 Multi-Tube Armored Fiber Optic Cable (Double Jacket) |
| Fiber Type | OS2 9/125μm Single-Mode Fiber |
| Core Count | 60 Core |
| Cable Construction | FIG.8, Multi-Tube, Steel Armored, Double Jacket |
| Jacket Material | Double Layer UV-Resistant Black HDPE Outer Jacket |
| Installation | Outdoor Aerial Pole Installation, Building Entrance and Backbone Network |
| Armored Protection | Steel Armored Layer Provides Anti-Rodent, Crush and Mechanical Protection |
| Messenger Wire | Built-in Galvanized Steel Messenger Wire for Self-Support Aerial Installation |
| Cable Length | 4,000 Meters per Drum |
| Application | Backbone Network, Data Center, FTTx, CCTV, Inter-Building Link and Enterprise Fiber Infrastructure |
| Fiber Standard | ITU-T G.652D OS2 Single-Mode |
|---|---|
| Fiber Diameter | 9/125μm |
| Fiber Type | Single-Mode Fiber (SMF) |
| Cable Structure | FIG.8 Multi-Tube Armored Double Jacket |
| Armor Type | Corrugated Steel Tape Armor |
| Jacket Type | Double HDPE Jacket |
| Messenger Wire | Galvanized Steel Messenger Wire |
| Installation Type | Aerial, Outdoor and Building Installation |
| Standards | ANSI/TIA-568.3, ANSI/ICEA 640, Telcordia GR-20-CORE, ITU-T G.652D, ISO/IEC 11801, IEC 60793, IEC 60794-1-2, EN 50173-1, TIS 2165, RoHS |
| Application | 10G, 40G, 100G Ethernet, Fiber Channel, CCTV, FTTx and Long-Distance Backbone Network |
| SMART FEATURES | |
|---|---|
| FIG.8 Self Support Design | Integrated Messenger Wire Allows Aerial Installation Without Additional Support Cable |
| Multi-Tube Structure | Loose Tube Design Protects Fiber Core and Supports High Fiber Density Network Applications |
| Double Jacket Protection | Provides Enhanced Resistance Against UV Radiation, Weather Conditions and Mechanical Stress |
| Steel Armored Protection | Protects Fiber Core Against Rodents, Crushing and External Impact |
| High Fiber Capacity | 60 Core OS2 Single-Mode Fiber Suitable for Large-Scale Backbone Network Expansion |
| GENERAL | |
|---|---|
| Fiber Count | 60 Core |
| Core / Cladding Size | 9/125μm Single-Mode Fiber |
| Cable Type | F.O. FIG.8 Multi-Tube Armored Double Jacket |
| Outer Jacket Color | Black |
| Messenger Wire | Galvanized Steel Messenger Wire |
| Cable Length | 4,000m per Drum |
| Installation / Operating Temperature | -40°C to +70°C |
| Packing | 4,000m per Drum |
| Warranty | 30 Years |
Note: The LINK UFC9860MAD is a 60-core OS2 9/125μm single-mode fiber optic cable featuring FIG.8 multi-tube armored construction with double HDPE jacket protection. It includes a built-in galvanized steel messenger wire for self-support aerial installation and steel armored protection for resistance against rodents, impact, and harsh outdoor environments. The cable is designed for backbone networks, FTTx, CCTV, inter-building connections, and enterprise fiber infrastructure.
Important: The LINK UFC9860MAD is optimized for high-capacity outdoor fiber deployment with 60-core OS2 single-mode fiber, FIG.8 self-support structure, multi-tube design, armored protection, and double jacket construction. It supports long-distance high-speed transmission while providing enhanced durability for aerial installations requiring high mechanical strength and environmental protection.
