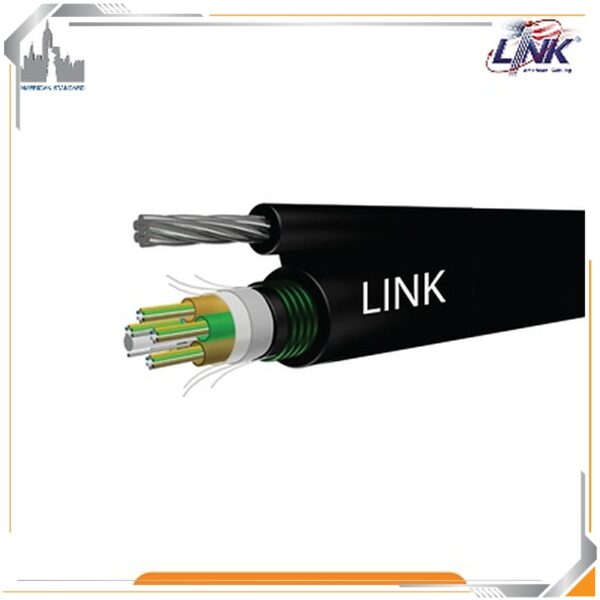

72 Core OS2 Armored Figure 8 Fiber Optic Cable (Double Jacket)

  • 72 Core OS2 9/125μm Singlemode fiber cable
  • Figure 8 Multi-Tube armored design with stranded drop wire
  • Double Jacket PE sheath with UV protection
  • Supports self-supporting aerial installation
  • Complies with ANSI/TIA-568.3, IEC 60794 and G.652D
  • Ideal for FTTx, CCTV and backbone networks
หมวดหมู่: , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

Specifications LINK UFC9872MAD

Features Description
Device Type F.O. FIG.8 Multi-Tube Armored Fiber Optic Cable (Double Jacket)
Fiber Type OS2 9/125μm Single-Mode Fiber
Core Count 72 Core
Cable Construction FIG.8, Multi-Tube, Steel Armored, Double Jacket
Jacket Material Double Layer UV-Resistant Black HDPE Outer Jacket
Installation Outdoor Aerial Pole Installation, Building Entrance and Backbone Network
Armored Protection Corrugated Steel Tape Armor Provides Anti-Rodent and Mechanical Protection
Messenger Wire 7×1.0mm Galvanized Steel Messenger Wire for Self-Support Installation
Cable Length 2,000 / 3,000 / 4,000 Meters per Drum
Application Backbone Network, Data Center, FTTx, CCTV, Inter-Building Link and Enterprise Fiber Infrastructure
Fiber Standard ITU-T G.652D OS2 Single-Mode
Fiber Diameter 9/125μm
Fiber Type Single-Mode Fiber (SMF)
Cable Structure FIG.8 Multi-Tube Armored Double Jacket
Armor Type Corrugated Steel Tape Armor
Jacket Type Double HDPE Jacket
Messenger Wire 7×1.0mm Galvanized Steel Wire
Installation Type Aerial, Outdoor and Building Installation
Standards ANSI/TIA-568.3-D, ISO/IEC 11801, ANSI/ICEA 640, Telcordia GR-20-CORE, ITU-T G.652D, IEC 60793, IEC 60794-1-2, EN 50173-1, TIS 2166, RoHS
Application 10G, 40G, 100G Ethernet, Fiber Channel, CCTV, FTTx and Long-Distance Backbone Network
SMART FEATURES
FIG.8 Self Support Design Integrated Messenger Wire Provides Self-Support Capability for Aerial Installation Without Additional Support Cable
Multi-Tube Structure Color-Coded Loose Tubes Protect Fiber Core and Support High Fiber Density Network Applications
Double Jacket Protection Provides Enhanced Resistance Against UV Radiation, Weather Conditions and Mechanical Stress
Steel Armored Protection Corrugated Steel Armor Protects Against Rodents, Crushing and External Mechanical Damage
High Fiber Capacity 72 Core OS2 Single-Mode Fiber Supports Large-Scale Backbone Network Expansion
GENERAL
Fiber Count 72 Core
Core / Cladding Size 9/125μm Single-Mode Fiber
Cable Type F.O. FIG.8 Multi-Tube Armored Double Jacket
Outer Jacket Color Black
Messenger Wire 7×1.0mm Galvanized Steel Wire
Cable Weight Approximately 250kg/km
Installation / Operating Temperature -40°C to +70°C
Packing 2,000 / 3,000 / 4,000m per Drum
Warranty 30 Years

Note: The LINK UFC9872MAD is a 72-core OS2 9/125μm single-mode fiber optic cable featuring FIG.8 multi-tube armored construction with double HDPE jacket protection. It includes a built-in 7×1.0mm galvanized steel messenger wire for self-support aerial installation and corrugated steel armor for anti-rodent and mechanical protection. The cable is designed for outdoor backbone networks, FTTx, CCTV, inter-building connections, and enterprise fiber infrastructure.

Important: The LINK UFC9872MAD is optimized for high-capacity outdoor fiber deployment with 72-core OS2 single-mode fiber, FIG.8 self-support structure, multi-tube design, armored protection, and double jacket construction. It supports long-distance high-speed transmission for backbone networks while providing enhanced durability against harsh environments, impact, and rodent damage.
