Specifications LINK UFH8132
| Features | Description |
|---|---|
| Product Type | PLC Double-Q Splitter Module |
| Split Ratio | 1 × 32 |
| Connector Type | SC/APC |
| Fiber Type | Single Mode Fiber |
| Fiber Length | 1 m |
| Module Type | Blockless PLC Splitter |
| Jacket Diameter | 2.0 mm |
| Operating Wavelength | 1260 ~ 1650 nm |
| Max. Insertion Loss | 16.8 dB |
| Max. Uniformity | 1.6 dB |
| Min. Return Loss | 55 dB |
| Max. PDL | 0.3 dB |
| Fiber Standard | ITU-T G.657A1 / G.657A2 |
| Operating Temperature | -40°C to 85°C |
| Storage Temperature | -40°C to 85°C |
| Standards | Telcordia GR-1209 and GR-1221 |
| Application | Description |
|---|---|
| FTTH Network | Designed for Fiber to the Home (FTTH) optical distribution networks. |
| PON Network | Suitable for EPON, BPON and GPON passive optical network applications. |
| CATV Network | Suitable for fiber optic CATV signal distribution systems. |
| Telecommunications | Used for passive optical signal splitting in telecommunications networks. |
| Fiber Distribution | Suitable for high-density optical signal distribution and access networks. |

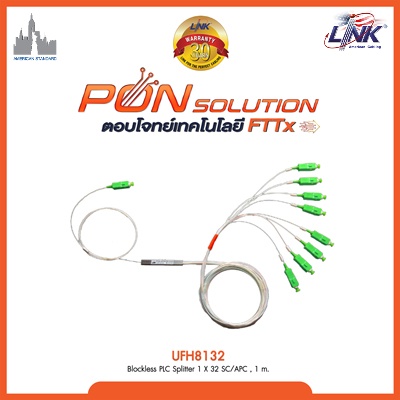

Note: The LINK UFH8132 is a 1 × 32 Blockless PLC Splitter with SC/APC connectors and 1 m fiber length.
Important: The UFH8132 is designed for Single Mode fiber applications in FTTH, PON and CATV networks, supporting an operating wavelength range of 1260 ~ 1650 nm.
