Specifications LINK UFH8316
| Features | Description |
|---|---|
| Product Type | PLC Splitter Module |
| Split Ratio | 1 × 16 |
| Connector Type | SC/APC |
| Fiber Type | Single Mode Fiber |
| Fiber Length | 2 m |
| Module Type | Module Type PLC Splitter |
| Jacket Diameter | 2.0 mm |
| Design | Passive Optical Splitter with High Reliability and Stability |
| Standards | Telcordia GR-1209 and GR-1221 |
| Application | Description |
|---|---|
| FTTH Network | Designed for Fiber to the Home (FTTH) optical distribution networks. |
| PON Network | Suitable for EPON, BPON and GPON passive optical network applications. |
| CATV Network | Suitable for fiber optic CATV signal distribution systems. |
| Telecommunications | Used for passive optical signal splitting in telecommunications networks. |
| Fiber in the Loop | Suitable for fiber optic access and distribution applications. |

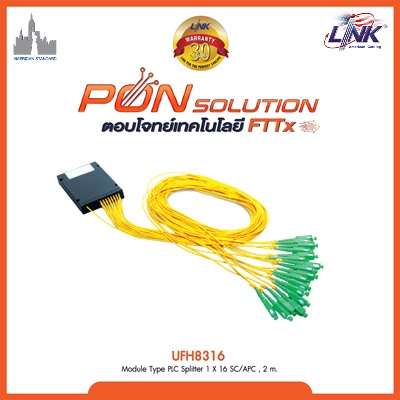

Note: The LINK UFH8316 is a 1 × 16 PLC Splitter Module with SC/APC connectors and a 2 m fiber length.
Important: The UFH8316 is a passive optical splitter designed for FTTH, PON and CATV networks, providing low insertion loss, low PDL and high channel uniformity.
