| Features |
Description |
| Device Type |
FTTR Oval 4-Core Fiber Optic Cable (Distribution Cable) |
| Brand / Series |
LINK (Interlink) / Double-Q Series (Super-S Series Solution) |
| Fiber Type |
Single-Mode Fiber (ITU-T G.657A2, Fully Compatible with G.652D) |
| Core Count |
4 Core (4C Structure) |
| Cable Construction |
Oval Profile Distribution Cable with Strength Members |
| Jacket Material |
Flame Retardant Low Smoke Zero Halogen (FR-LSZH) with PE Protection |
| Cable Dimensions |
Outer Diameter approx. 2.0 x 3.0 mm (Oval Profile Structure) |
| Installation |
Indoor and Outdoor Environmental Deployment (Distribution & Backbone Routing) |
| Packaging Length |
Standard Box: 1,000 Meters / Box |
| Application |
FTTx / FTTR (Fiber to the Room) Systems, Condominiums, Dormitories, Hotels, and High-Speed Enterprise Networks |
| Fiber Standard |
ITU-T G.657A2 Single-Mode (Superior Bend Insensitivity) |
| Flame Rating |
Meets IEC 60332-1, IEC 60754-1 & 2, and IEC 61034-2 Standards |
| Environmental Standards |
RoHS Compliant |
| Tensile Performance |
High Tensile Strength with Lightweight Structure for Easy Pulling and Routing |
| SMART FEATURES |
| FTTR Double-Q 4-Core Design |
Engineered for modern Fiber-to-the-Room (FTTR) environments requiring high-capacity 4-core distribution and superior line redundancy |
| Low Smoke Zero Halogen |
LSZH jacket ensures safety by minimizing toxic gas emissions and smoke density during fire hazards |
| Bend-Insensitive Performance |
Built with G.657A2 fibers to support tight corner routing inside residential and commercial buildings without macro-bending signal loss |
| Indoor & Outdoor Versatility |
Robust environmental skin allows seamless transitions across indoor pathways and outdoor building riser links |
| GENERAL |
| Core Diameter |
Cladding 125$\mu$m Single-Mode Core Structure |
| Color |
Black |
| Warranty |
Standard Manufacturer Warranty (Up to 30 Years System Link Warranty when installed under certified guidelines) |

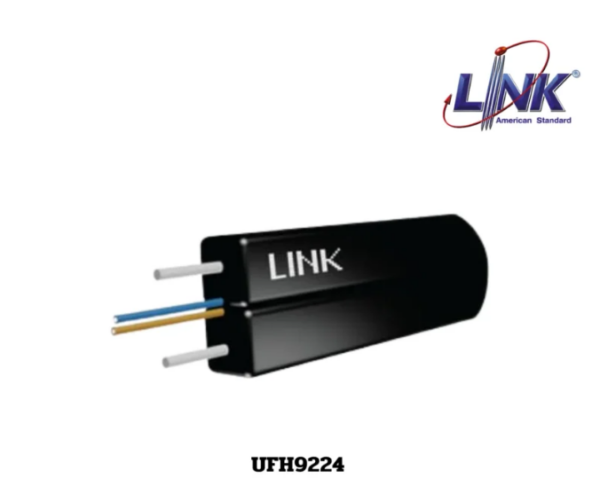

Note: The LINK UFH9224 is a 4-core single-mode oval fiber optic distribution cable belonging to the Double-Q / Super-S series, supplied in a standard 1,000-meter box. Utilizing G.657A2 bend-insensitive fiber and a safe LSZH jacket, it is optimized for high-capacity multi-core FTTx and FTTR deployments inside multi-dwelling units, hotels, and enterprise complexes.
Important: The LINK UFH9224 cable features a compact 2.0 x 3.0 mm oval profile designed for high-density distribution pathways requiring increased line capacity. Its flame-retardant and low-smoke properties comply with strict international fire safety standards, making it an ideal choice for professional indoor risers and room-to-room optical infrastructure.
